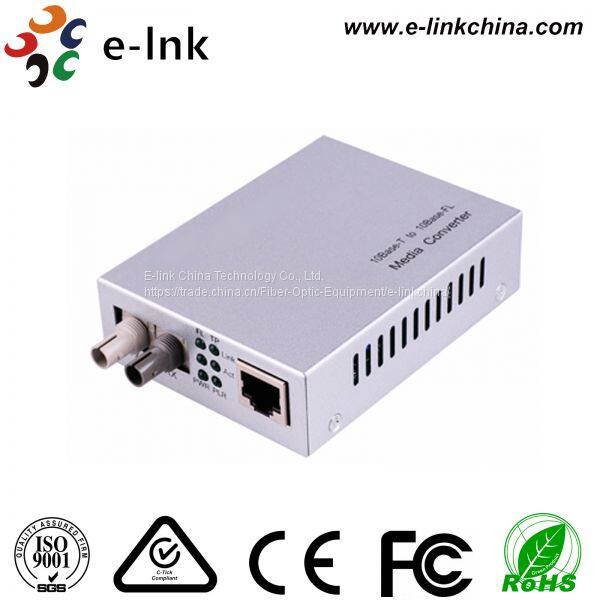

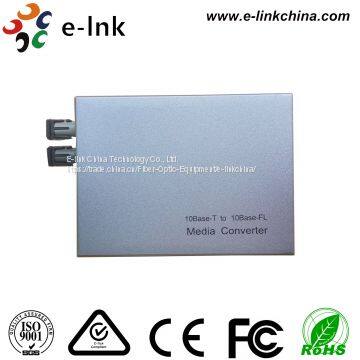

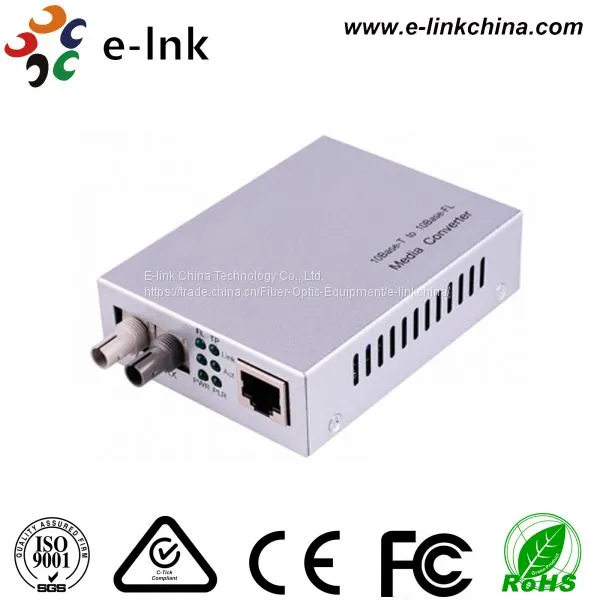

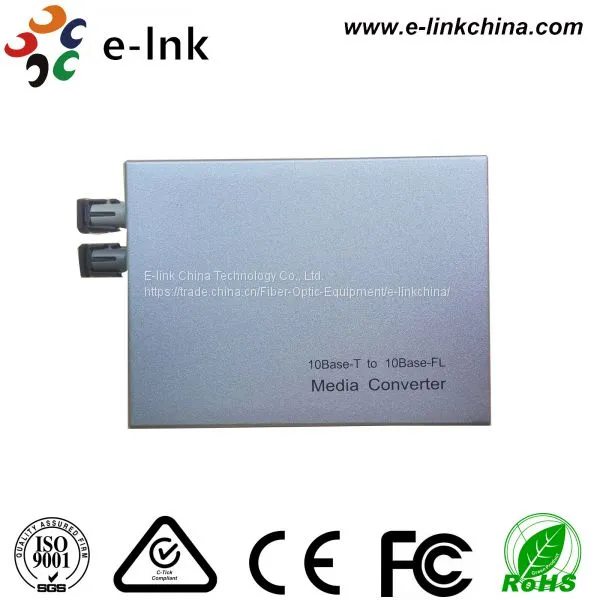

Model: LNK-10F Series
Overview
The E-link 10Base-FL/10Base-T Media Converter permits the repeaterless connection of twisted pair cable (10Base-T) and optical fiber (10Base-FL) in an Ethernet network. The converter is compatible with IEEE 802.3.
The media converter supports a maximum fiber optic cable distance of 120km, providing a simple solution for connecting 10Base-T Ethernet networks to remote locations using multimode fiber or single mode fiber, while delivering solid network performance and scalability.
Features
l Auto-MDI/MDIX
l Complies with 802.3 10Base-T and 10Base-FL standards
l Provides media conversion from UTP to Fiber Optic media types
l extends network span to 2km(multimode fiber)
l Interoperable with other 10Base media converters, 10Base, 10Base-T NICs, hubs or switches
l Provides LEDs for easy network monitoring
l Supports a variety of fiber optic connectors including ST, SC, and FC

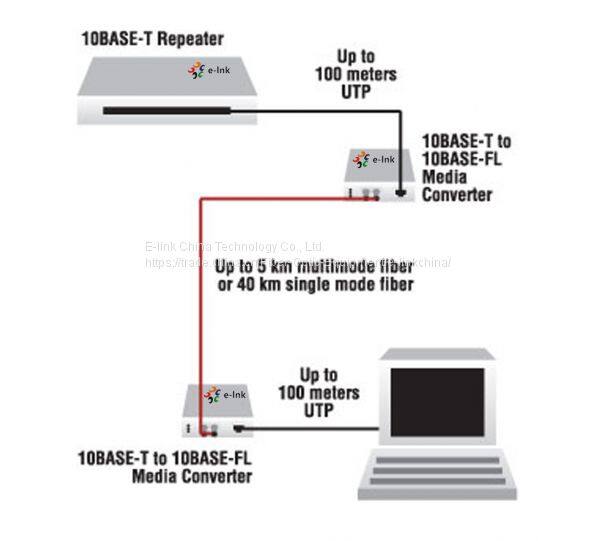

Application
Technical Indexes
Parameter | Specifications |
Access mode | 10Mbps |
Standard | IEEE 802.3 10Base-T 10Base-FL |
Wavelength | 850nm |
Transmission distance | Dual-fiber multi-mode: 2 km; |
Port | One RJ45 port: for connecting STP/UTP category-5 twisted pairs One optical port: Multi-mode, dual fiber: ST (50, 62.5/125μm) |
Conversion means | Store and Forward mode or Cut-Through mode |
Buffer space | Built in 128Kb RAM for data buffer |
Flow control | Full duplex: flow control; Half duplex: back pressure |
BER | <19-9 |
MTBF | 100,000 hours |
LED indicator | PWR (power supply); FL/Link (Fiber link action); TP/Link (Ethernet link action), FL/ACT (Fiber data transmission); TP/ACT (Ethernet data transmission), PLR(UTP connection) |
Power supply | External: AC90~264V/DC100~380V input, 5V1A output |
Power consumption | <40W (the chassis at full load), <2W |
Operating temperature | -10~55ºC |
Operating humidity | 5%~90% |
Maintaining temperature | -40~70ºC |
Maintaining humidity | 5% ~ 90% non-condensing |
Ordering Information
Item | Description | |
LNK-10FT | 10Base-T to 10Base-F, Multimode, 2km, 850nm, ST, standalone, external power adaptor |
