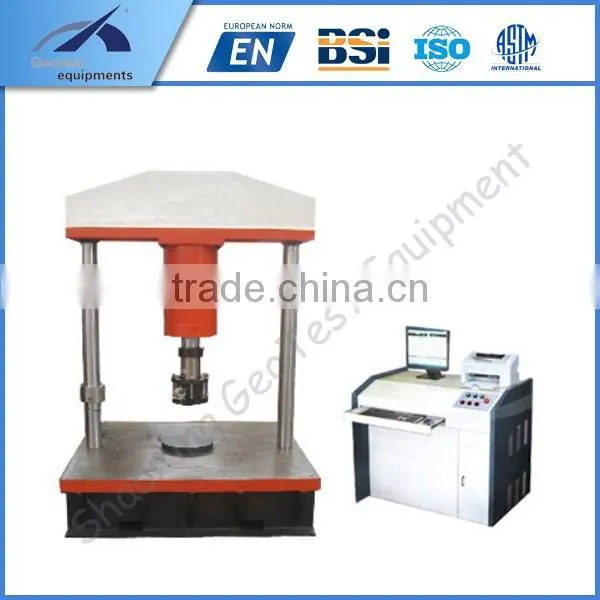

CTM-1000MC Manhole Cover Compression Testing Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GEOTEST EQUIPMENTS
Model Number:
CTM-1000MC
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai Negotiable
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
UTM-B Universal Testing Machine Construction MachineryNegotiableMOQ: 1 Set -
CTM-2000B/3000B Tensile Compression Testing Manchine PriceNegotiableMOQ: 1 Set
-
CTM-2000 Universial Mechanical Properties Test ManchineNegotiableMOQ: 1 Set
-
WDT-30 Welding Drop Testing MachineUS$ 1 - 34652MOQ: 1 Set
-
RSTM-G LCD Display Servo Ring Stiffness Flexibility TesterNegotiableMOQ: 1 Set
Place of Origin
Zhejiang, China
Brand Name
GEOTEST EQUIPMENTS
Model Number
CTM-1000MC
Power
Electronic
Usage
Auto Testing Machine
Specifications
CTM-MC Manhole Cover Compression Testing Machine1.used to determined compression strength
2.residual deformation
CTM-MC Series Manhole Cover Compression Testing Machine
Characrestic:
Used to determine compression strength and residual deformation of castiron manhole cover. Compositive manhole and steel fiber reinforced concrete well cover. It can do the compression test to other material if equippen with other accessories.
| Model | CTM-600MC | CTM-1000MC | CTM-1500MC |
| Loading capacity | 600KN | 1000KN |
1500KN |
| Measuring range | 2%-100%FS | ||
| Accuracy | ≤±1% | ||
| Compression space | 0-350 mm | ||
| Span between teo columns | 1200mm | 1400mm | |
| Effective length of working table | 1400mm | 1500mm | |
| Size of upper spherical platen | Φ250×40 mm | ||
| Piston travel | 150 mm | ||
| Loading rate | 0-40KN/S | ||
| Overall dimensions(mainframe) | 1430×1400×2000mm | 1400x1500x2050mm | |
| Overall dimensions(control cabinet) | 1100×700×940mm | ||
| Power supply | 380V 3 phase 50Hz | ||
| Weight approx | 3000kg | ||
