UTM-S Computer control electronic single column universal tensile testing machine
Standard:ASTM E4 E74 E83 E1012 E1856
Features:
l with function of automatic return to original position, intelligently, efficiently, quickly;
l with limit protection function of any working position and over voltage, over current protection functions, reliable, safe;
l with strong test data, which can save, inquire and retrieve test data anytime.
l with many control modes of constant speed control to force, stress, deformation, strain, stroke, load, elongation, displacement and low cycle and user self-programming control;
l switch among many test curves: stress-strain curve, load-deformation curve, load-displacement curve, load-time curve, deformation-time curve, displacement-time curve, load-strain curve. Partial enlargement, overlap and comparison.
Main technical parameters:
Model |
UTM-2S |
UTM-3S |
UTM-5S |
Capacity |
2KN |
3KN |
5KN |
Grade / Class |
Class 0.5 (Class 1) |
||
Loading measuring range |
0.4% ~ 100% FS (1% ~ 100% FS) |
||
Loading accuracy |
±0.5% (±1%) |
||
Loading force resolution |
1/±300,000 F.S (same resolution in full range) |
||
Displacement resolution |
0.001mm (0.01mm) |
||
Force speed control range |
0.005% ~ 5% FS/S |
||
Force speed control accuracy |
Speed < 0.05% FS: ±1% |
||
Speed ≥ 0.05% FS: ±0.5% | |||
Deformation speed control range |
0.005% ~ 5% FS/s |
||
Deformation speed control accuracy |
Speed < 0.05% FS: ±1% |
||
Speed ≥ 0.05% FS: ±0.5% | |||
Displacement speed control range |
0.005 ~ 500 mm/min |
||
Displacement speed control accuracy |
≤±2% of set value |
||
Control range of constant-force, constant–deformation, constant-displacement |
0.5% ~ 100%FS |
||
Control accuracy of constant-force, constant-deformation, constant-displacement |
Set value ≥10%FS: ±0.5% |
||
Set value < 10%FS: ±1% | |||
Testing space (height) |
1000mm |
||
Testing space (width) |
75mm |
||
Working voltage |
220V±10%, 50Hz (good earth-connection) |
||
Motor power |
400W |
||
Dimensions |
410×430×1550 |
||
Net weight |
100kg
|
||
Main Configuration
|
Content |
Qty |
|
|
Load frame High intensity testing machine structure and crosshead, high stiffness to assure accuracy Germany brand TBI ball screws |
1 set |
|
Imported servo speed adjusting motor and driver Brand: Estun |
1set |
|
|
Load cell Capacity: 5kN Brand: Celtron |
1 pc. |
|
|
Hand-held controller |
1pc. |
|

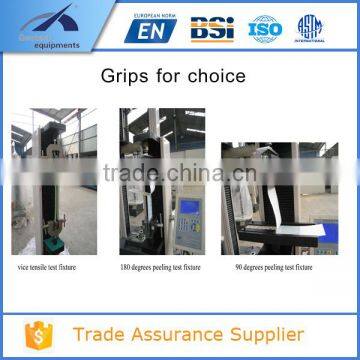

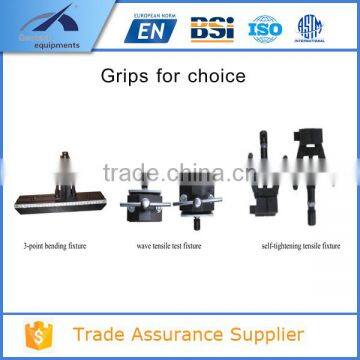

Tensile grips |
1 set |
|
Compression attachment (round platens with diameter 100mm ) |
1set |
|
HP Computer (2G memory/500G hard disk/18.5 LCD screen) |
1set |
|
Control software Special control test software |
1 pc. |
The biggest manufactor is in china, the top quality is in china, the best service is also in china!
Pls believe GEOTEST, Believe China Power!
We sincerely lookinf forward to cooperate with you!
