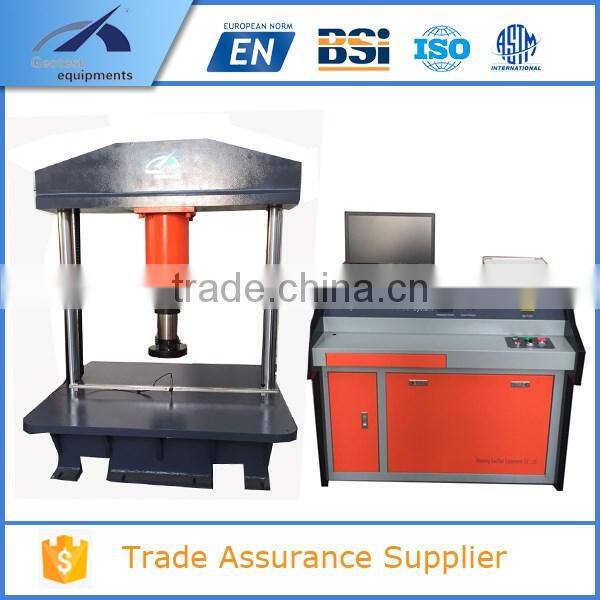

CTM-MC BS EN124 Standard Hydraulic Servo System Computer Controlled Manhole Cover Compression Testing Machine
Used to determine compression strength and residual deformation of castiron manhole cover. Compositive manhole and steel fiber reinforced concrete well cover. It can do the compression test to other material if equippen with other accessories.
| Model | CTM-600MC |
| Loading capacity | 600KN |
| Measuring range | 2%-100%FS |
| Accuracy | ≤±1% |
| Compression space | 0-350 mm |
| Span between teo columns | 1200mm |
| Effective length of working table | 1400mm |
| Size of upper spherical platen | Φ250×40 mm |
| Piston travel | 150 mm |
| Loading rate | 0-40KN/S |
| Overall dimensions(mainframe) | 1430×1400×2000mm |
| Overall dimensions(control cabinet) | 1100×700×940mm |
| Power supply | 380V 3 phase 50Hz |
| Weight approx | 3000KG |
Standard Configuration
No. | Items | Qty. |
1 | Loading frame (two columns model, high stiffness, large working table) | 1set |
2 | Hydraulic control system | 1set |
3 | Measurement and control system (HRJ-test digital closed-loop, multi-channe) | 1set |
4 | Load sensor | 1pc. |
5 | Displacement sensor | 1pc. |
6 | Spherical compression platen (Φ250*40mm) | 1pc. |
7 | Solid spacer block (Φ250*40mm, Φ356*40mm, Φ300*20mm) | 3pcs. |
8 | Rubber spacer | 1pc. |
9 | PC (2G memory, 500G hard disk, 18.5” LCD screen) | 1set |
10 | Software (HRJ-test software) | 1set |
11 | Technical documents | 1set |
12 | Measuring device for residual deformation
| 1set |
The biggest manufactor is in china, the top quality is in china, the best service is also in china!
Pls believe GEOTEST, Believe China Power!
We sincerely lookinf forward to cooperate with you!
