Digital Display Compression Testing Equipment CTM, Pressure Testing Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
geotest equipments
Model Number:
CTM-3000
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CTM-2000B Automatic Compression Testing Machine/ Digital Compression Testing MachineNegotiableMOQ: 1 Set -
CTM-2000B/3000B Tensile Stress Test MachineNegotiableMOQ: 1 Set
-
UTM-B Computer Controled Automatic Universal Test MachineNegotiableMOQ: 1 Set
-
CTM-500S Concrete Creep Compression Testing Machine (Spring-loaded,Digital)NegotiableMOQ: 1 Set
-
CTM-1000MC Manhole Cover Compression Testing MachineNegotiableMOQ: 1 Set
Place of Origin
Zhejiang, China
Brand Name
geotest equipments
Model Number
CTM-3000
Power
Electronic
Usage
Auto Testing Machine

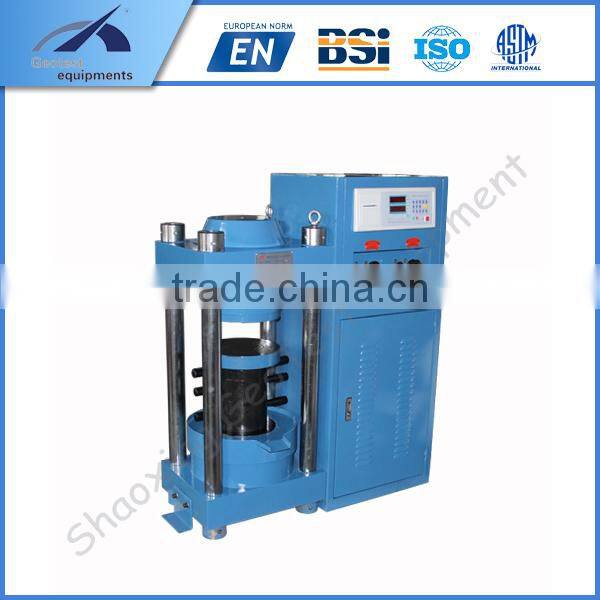

CTM-3000 Digital compression testing machine
1. Charateristic
a. It is suitable for doing compressive strength test of the building materials such as brick, cement, mortar, stone, concrete and so on.
b. It is also suitable for the mechanical properties test for other materials.
c. It has functions such as loading pressure in digital display, Max. loading pressure maintenance, power-off data protection and so on.
d. It can automatically process the test data and automatically print out the test report.
| Loading capacity | 3000KN |
| Measuring range | 0-3000KN |
| Relative indication error | ±1% |
| Size of bearing platen | Φ260mm |
| Max. distance between upper and lower platen | 340mm |
| Max. ram stroke | 50mm |
| Diameter of ram | Φ270mm |
| Rated pressure of the hydraulic pump | 35Mpa |
| Power | 220V 50HZ |
| Outside size | 960*480*1285mm |
| Net weight | About 700kgs |
