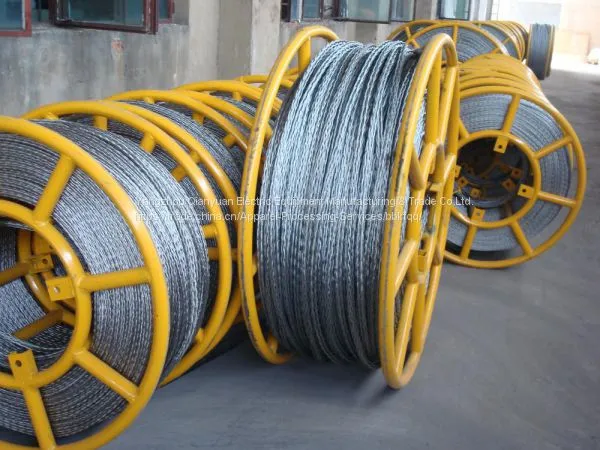

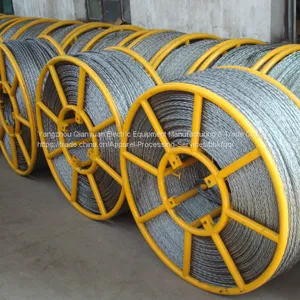

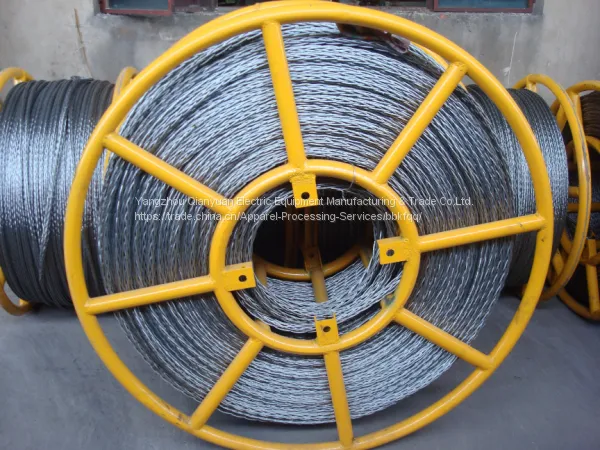

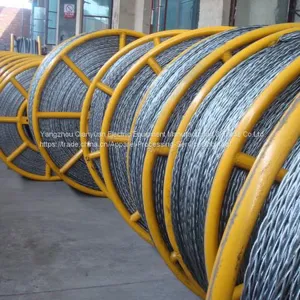

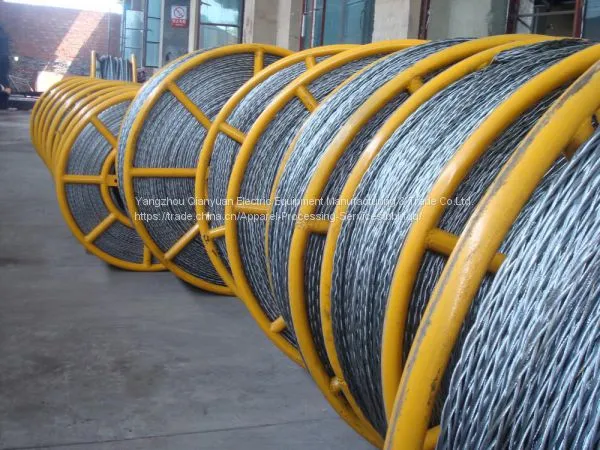

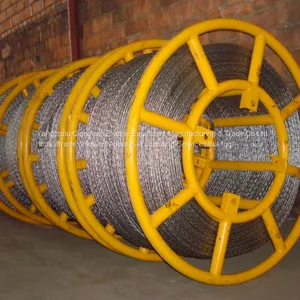

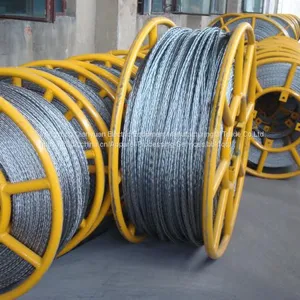

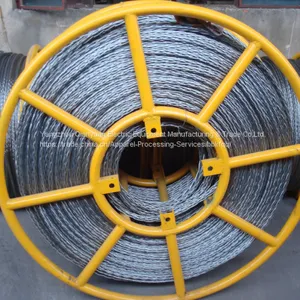

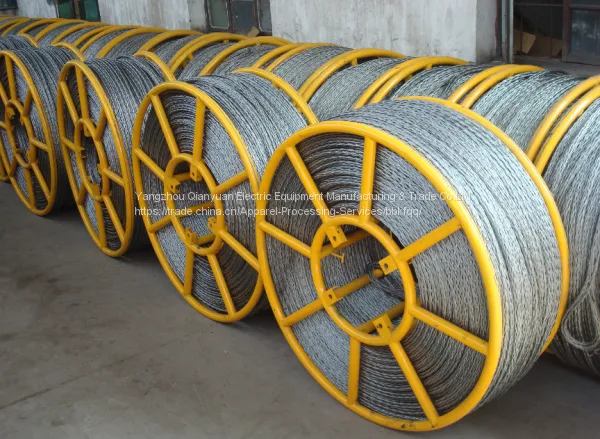

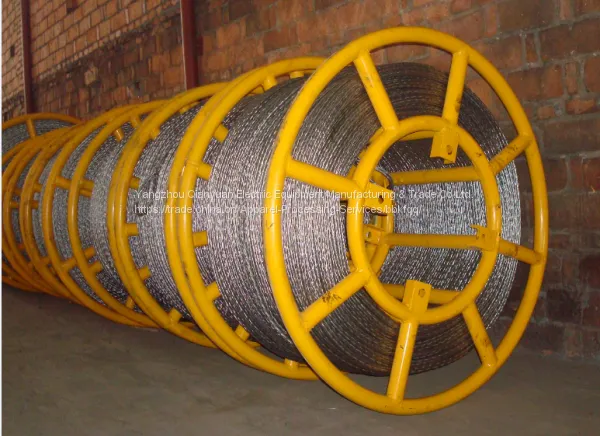

Help CenterAnti-twisting Braided Wire Rope
Related Products
Features: Square or hexagon Anti-twisting steel wire ropes,also called pilot wire, pilot rope, Anti-twisting Braided Wire Rope, High Strength Pilot Wire Rope or Anti-twisting Pilot Wire,which is braided with four-strand, six-strand or nine-strand twisting with each other leftwards or rightwards. It is relative on the section. The twisting force on the section can be released each other whether it receives a force or not. The moment of twisting is naught for the wire rope.
Applications:
The special non-rotating braided steel wire rope is widely used in power line stringing operations, for pulling conductors, OPGW cable, ADSS, 500kv traction rope, etc.
Structural forms for wire ropes (in cross section)
1 Four-sided eight strands
2 Four-sided twelve strands
3 Six-sided twelve strands
Remarks: All kinds of non-rotating steel wire rope can be made according to the customers` requirements.
| Product No | Model | Strand Structure | Nominal Dia.(mm) | Strand Dia.(mm) | Nominal Tensile Strength (Mpa) | Strand Breaking Force(KN) | Steel Rope Referenced Weight (kg/km) |
| 1001 | GS9-12*19W |
Six-Sided Twelve Strands | 9 | 2.0 | 1960 | 67 | 299 |
| 1002 | GS11-12*19W | 11 | 2.5 | 1960 | 87 | 434 | |
| 1003 | GS13-12*19W | 13 | 3.0 | 1960 | 125 | 632 | |
| 1004 | GS16-12*19W | 15 | 3.5 | 2000 | 168 | 862 | |
| 1005 | GS18-12*19W | 18 | 4.0 | 1960 | 205 | 1098 | |
| 1006 | GS20-12*25Fi | 20 | 4.2-4.5 | 1960 | 255 | 1292 | |
| 1007 | GS20-12*29Fi | 20 | 4.2-4.5 | 1960 | 262 | 1302 | |
| 1008 | GS22-12*25Fi | 22 | 4.8 | 1960 | 309 | 1558 | |
| 1009 | GS22-12*29Fi | 22 | 4.8 | 1960 | 345 | 1784 | |
| 10010 | GS24-12*25Fi | 24 | 5.0-5.2 | 1960 | 355 | 1820 | |
| 10011 | GS24-12*29Fi | 24 | 5.0-5.2 | 1960 | 370 | 1995 | |
| 10012 | GS25-12*25Fi | 25 | 5.2-5.5 | 1960 | 389 | 2158 | |
| 10013 | GS25-12*29Fi | 25 | 5.2-5.5 | 2160 | 425 | 2247 | |
| 10014 | GS26-12*25Fi | 26 | 5.5-5.6 | 1960 | 420 | 2278 | |
| 10015 | GS26-12*29Fi | 26 | 5.5-5.6 | 2160 | 430 | 2298 | |
| 10016 | GS28-12*25Fi | 28 | 6.0 | 1960 | 440 | 2308 | |
| 10017 | GS28-12*29Fi | 28 | 6.0 | 2160 | 490 | 2568 | |
| 10018 | GS30-12*25Fi | 30 | 6.5 | 1960 | 485 | 2718 | |
| 10019 | GS30-12*29Fi | 30 | 6.5 | 2160 | 550 | 3098 | |
| 10020 | GS7-8*19W | Four-Sided Eight Strands | 7 | 2.0 | 1960 | 42 | 193 |
| 10021 | GS9-8*19W | 9 | 2.5 | 1960 | 57 | 289 | |
| 10022 | GS11-8*19W | 11 | 3.0 | 1960 | 78 | 398 | |
| 10023 | GS13-8*19W | 13 | 3.5 | 1960 | 110 | 580 | |
| 10024 | GS15-8*19W | 15 | 4.0 | 1960 | 125 | 690 | |
| 10025 | GS18-8*25Fi | 18 | 4.8-5.0 | 1960 | 206 | 1035 | |
| 10026 | GS18-8*29Fi | 18 | 4.8-5.0 | 2060 | 220 | 1078 | |
| 10027 | GS20-8*25Fi | 20 | 5.2-5.5 | 2060 | 245 | 1200 | |
| 10028 | GS22-8*25Fi | 22 | 6.0 | 1960 | 304 | 1535 | |
| 10029 | GS9-12*19W | Four-Sided Twelve Strands | 9 | 2.0 | 1960 | 67 | 295 |
| 10030 | GS11-12*19W | 11 | 2.5 | 1960 | 83 | 430 | |
| 10031 | GS13-12*19W | 13 | 3.0 | 1960 | 125 | 630 | |
| 10032 | GS15-12*19W | 15 | 3.5 | 1960 | 170 | 865 | |
| 10033 | GS18-12*19W | 18 | 4.0 | 1960 | 198 | 1098 | |
| 10034 | GS20-12*25Fi | 20 | 4.2-4.5 | 1960 | 253 | 1285 | |
| 10035 | GS20-12*29Fi | 20 | 4.2-4.5 | 1960 | 262 | 1302 | |
| 10036 | GS22-12*25Fi | 22 | 4.8 | 1960 | 310 | 1555 | |
| 10037 | GS22-12*29Fi | 22 | 4.8-5.2 | 1960 | 318 | 1785 | |
| 10038 | GS24-12*25Fi | 24 | 5.0-5.2 | 1960 | 370 | 1850 | |
| 10039 | GS24-12*29Fi | 24 | 5.0-5.2 | 1960 | 370 | 2002 | |
| 10040 | GS25-12*25Fi | 25 | 5.2-5.5 | 2160 | 425 | 2161 | |
| 10041 | GS25-12*29Fi | 25 | 5.2-5.5 | 2160 | 430 | 2252 | |
| 10042 | GS26-12*25Fi | 26 | 5.5-5.6 | 1960 | 398 | 2298 | |
| 10043 | GS26-12*29Fi | 26 | 5.5-5.6 | 2160 | 420 | 2303 | |
| 10044 | GS28-12*25Fi | 28 | 6.0 | 1960 | 458 | 2312 | |
| 10045 | GS28-12*29Fi | 28 | 6.0 | 2160 | 486 | 2571 | |
| 10046 | GS30-12*25Fi | 30 | 6.5 | 1960 | 525 | 2722 | |
| 10047 | GS30-12*29Fi | 30 | 6.5 | 2160 | 535 | 3102 |
