Product Description

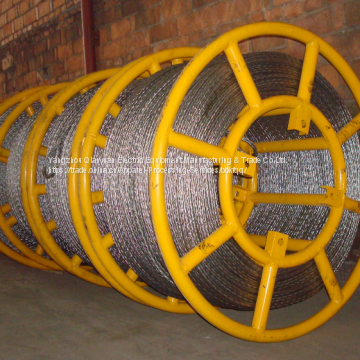

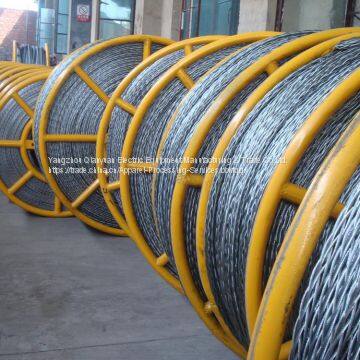

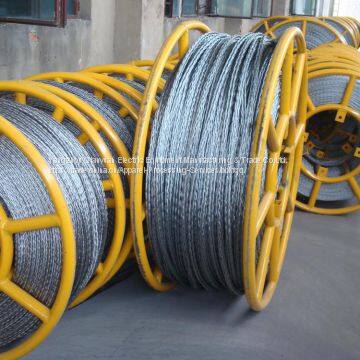

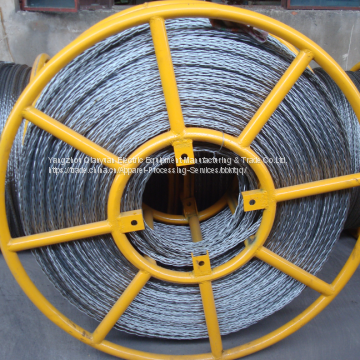

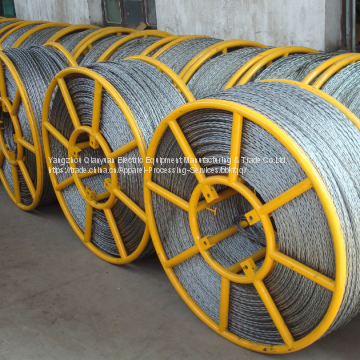

High Strength Pilot Wire are braided with fine-quality zinc-plated wires (8*19; 8*19W; 12*19W; 8*25Fi; 12*29Fi; 18*29Fi, etc), which is also called pilot wire, pilot rope, Anti-twisting Braided Wire Rope, High Strength Pilot Wire Rope or Anti-twisting Pilot Wire. It is coupled with hydraulic puller, hydraulic tensioner or engine tractor to pull conductor over the steel tower or concrete pole. It is very efficient and fast. It has different features as follows.

Features: Square or hexagon is braided with four-strand, six-strand or nine-strand twisting with each other leftwards or rightwards. It is relative on the section. The twisting force on the section can be released each other whether it receives a force or not. The moment of twisting is naught for the wire rope.

Applications:
The special non-rotating braided steel wire rope is widely used in power line stringing operations, for pulling conductors, OPGW cable, ADSS,500kv traction rope, etc.

Structural forms for wire ropes (in cross section)
1 Four-sided eight strands
2 Four-sided twelve strands
3 Six-sided twelve strands

Remarks: All kinds of non-rotating steel wire rope can be made according to the customers` requirements.

Product No	Model	Strand Structure	Nominal Dia.(mm)	Strand Dia.(mm)	Nominal Tensile Strength (Mpa)	Strand Breaking Force(KN)	Steel Rope Referenced Weight (kg/km)
1001	GS9-12*19W	Six-Sided Twelve Strands	9	2.0	1960	67	299
1002	GS11-12*19W		11	2.5	1960	87	434
1003	GS13-12*19W		13	3.0	1960	125	632
1004	GS16-12*19W		15	3.5	2000	168	862
1005	GS18-12*19W		18	4.0	1960	205	1098
1006	GS20-12*25Fi		20	4.2-4.5	1960	255	1292
1007	GS20-12*29Fi		20	4.2-4.5	1960	262	1302
1008	GS22-12*25Fi		22	4.8	1960	309	1558
1009	GS22-12*29Fi		22	4.8	1960	345	1784
10010	GS24-12*25Fi		24	5.0-5.2	1960	355	1820
10011	GS24-12*29Fi		24	5.0-5.2	1960	370	1995
10012	GS25-12*25Fi		25	5.2-5.5	1960	389	2158
10013	GS25-12*29Fi		25	5.2-5.5	2160	425	2247
10014	GS26-12*25Fi		26	5.5-5.6	1960	420	2278
10015	GS26-12*29Fi		26	5.5-5.6	2160	430	2298
10016	GS28-12*25Fi		28	6.0	1960	440	2308
10017	GS28-12*29Fi		28	6.0	2160	490	2568
10018	GS30-12*25Fi		30	6.5	1960	485	2718
10019	GS30-12*29Fi		30	6.5	2160	550	3098
10020	GS7-8*19W	Four-Sided Eight Strands	7	2.0	1960	42	193
10021	GS9-8*19W		9	2.5	1960	57	289
10022	GS11-8*19W		11	3.0	1960	78	398
10023	GS13-8*19W		13	3.5	1960	110	580
10024	GS15-8*19W		15	4.0	1960	125	690
10025	GS18-8*25Fi		18	4.8-5.0	1960	206	1035
10026	GS18-8*29Fi		18	4.8-5.0	2060	220	1078
10027	GS20-8*25Fi		20	5.2-5.5	2060	245	1200
10028	GS22-8*25Fi		22	6.0	1960	304	1535
10029	GS9-12*19W	Four-Sided Twelve Strands	9	2.0	1960	67	295
10030	GS11-12*19W		11	2.5	1960	83	430
10031	GS13-12*19W		13	3.0	1960	125	630
10032	GS15-12*19W		15	3.5	1960	170	865
10033	GS18-12*19W		18	4.0	1960	198	1098
10034	GS20-12*25Fi		20	4.2-4.5	1960	253	1285
10035	GS20-12*29Fi		20	4.2-4.5	1960	262	1302
10036	GS22-12*25Fi		22	4.8	1960	310	1555
10037	GS22-12*29Fi		22	4.8-5.2	1960	318	1785
10038	GS24-12*25Fi		24	5.0-5.2	1960	370	1850
10039	GS24-12*29Fi		24	5.0-5.2	1960	370	2002
10040	GS25-12*25Fi		25	5.2-5.5	2160	425	2161
10041	GS25-12*29Fi		25	5.2-5.5	2160	430	2252
10042	GS26-12*25Fi		26	5.5-5.6	1960	398	2298
10043	GS26-12*29Fi		26	5.5-5.6	2160	420	2303
10044	GS28-12*25Fi		28	6.0	1960	458	2312
10045	GS28-12*29Fi		28	6.0	2160	486	2571
10046	GS30-12*25Fi		30	6.5	1960	525	2722
10047	GS30-12*29Fi		30	6.5	2160	535	3102
