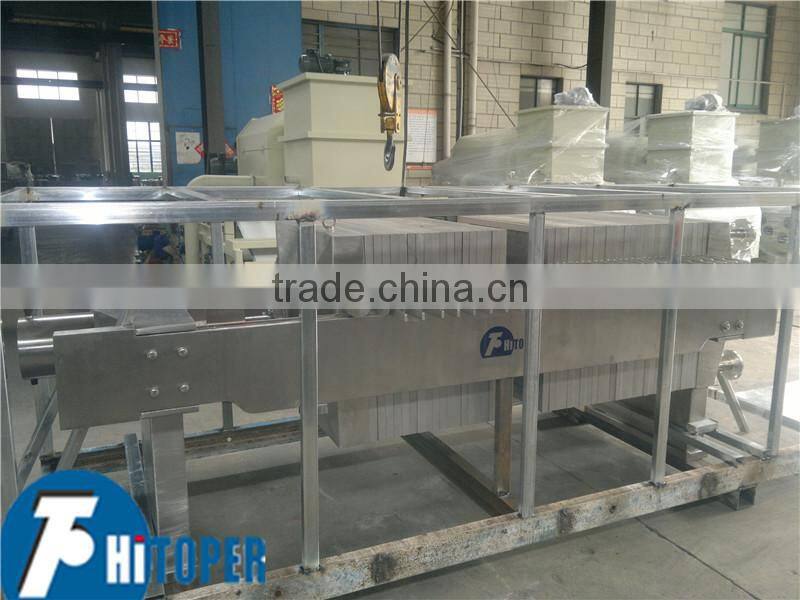

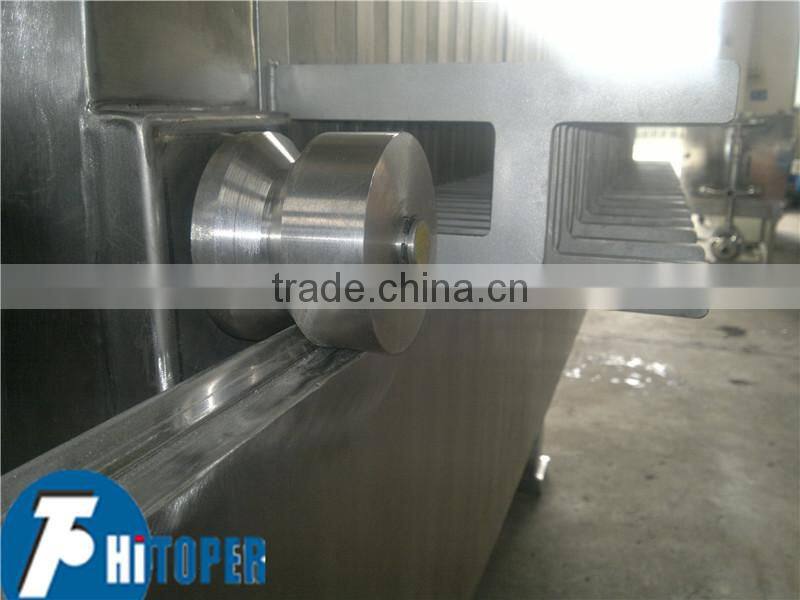

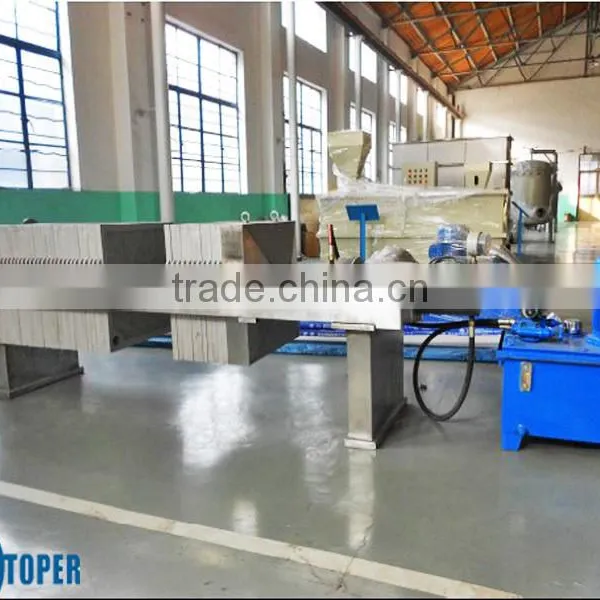

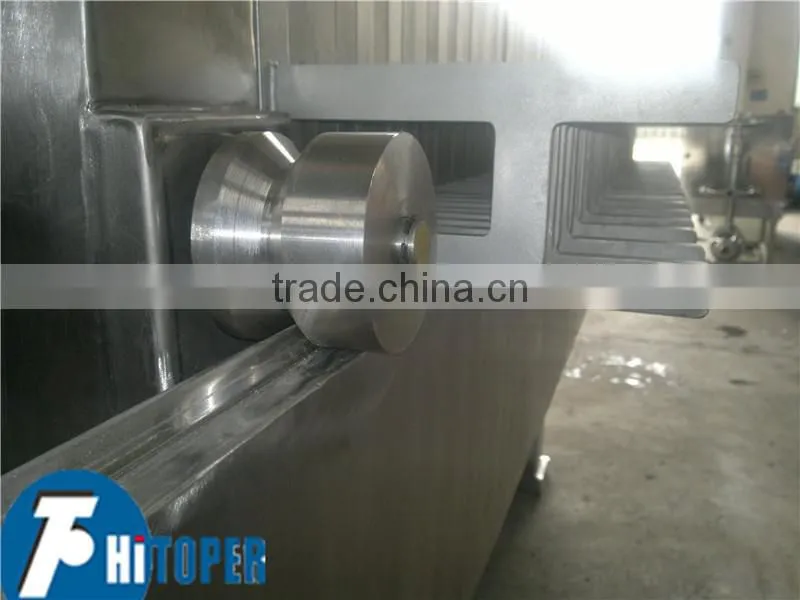

Large filter press capacity for wine,beer purification of stainless steel material
Brief introduction of the stainless steel food process filtration equipment
This type of filtration separator,the rack is made of carbon steel with stainless steel wraped outside,and the filter plae and frame is made of SUS 304.It is suitable for variety suspension's solid-liquid separation.Widely used in food,environment protection,light industry,medicine,chemical industry,metallurgy ,oil and other industries.
It is especially suitable for large quantities of beer ,liquid,wine,cooking oil and other liquid beverage fine filter or sterlization filter.
Main features of the Large filter press capacity for wine,beer purification of stainless steel material

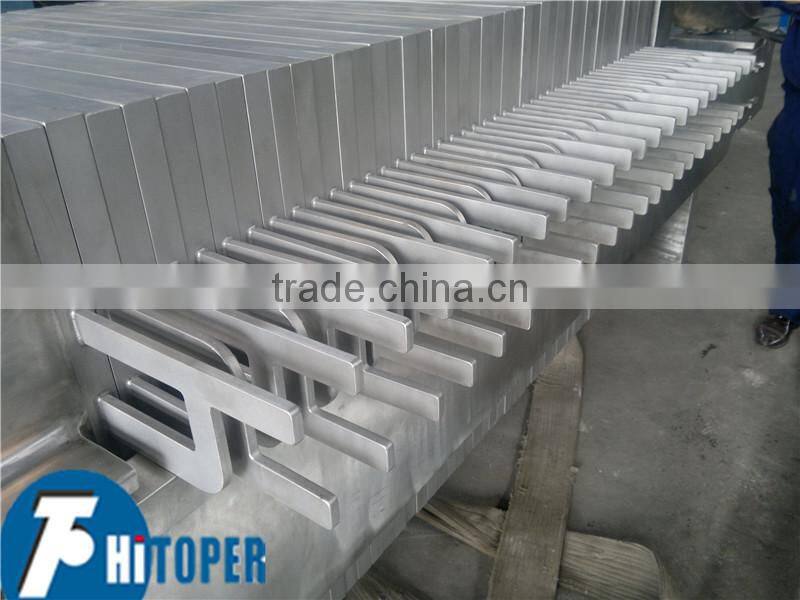

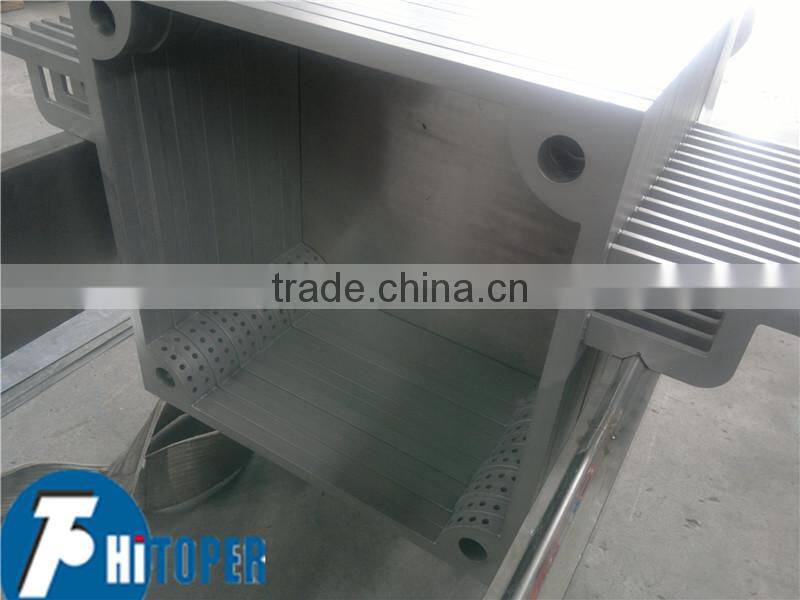

Between the filter frame and filter plate is sealed by cardboard or other filter material.It is a kind of stainless steel high filtration fineness filter ,which filter area of 2 squaree meter or more(also known as stainless steel board filter), the following configuration for placement of a fixed horizontal cardboard rod, and it is easy to install easy to set filter material.It can reach sterilization effect with precision sterilization cardboard to process variety of wine.
Operation principle of the Large filter press capacity for wine,beer purification of stainless steel material
Suspension is pumped into the filter unit with each closed filter chamber, under pressure, the filtrate through the filter layer and filter cloth, filter cloth by the fluid discharge port, the residues were kept in the filter box to achieve the solid-liquid separation purpose.
Technical parameters of the Large filter press capacity for wine,beer purification of stainless steel material
| Specification |
Filter volume |
Filter plate size |
Filter cake thickness |
Filter chamber volume |
Filter plate NO. |
Frame plate NO. |
Filtrating pressure |
Weight | Size |
| (m2) | (mm) | (mm) | (L) | (pcs) | (pcs) | (Mpa) | (kg) | (mm) | |
| BAQ1/320 | 1 | 320×320 | 25 | 13 | 4 | 5 | 1 | 300 | 1050×700×680 |
| BAQ2/320 | 2 | 25 | 9 | 10 | 440 | 1405×700×680 | |||
| BAQ3/320 | 3 | 38 | 14 | 15 | 600 | 1650×700×680 | |||
| BAQ4/450 | 4 | 450×450 | 51 | 9 | 10 | 0.8 | 780 | 1680×880×900 | |
| BAQ6/450 | 6 | 76 | 14 | 15 | 995 | 1980×880×900 | |||
| BAQ8/450 | 8 | 102 | 19 | 19 | 1250 | 2180×880×900 | |||
| BAQ10/450 | 10 | 122 | 24 | 25 | 1470 | 2430×880×900 | |||
| BAQ12/450 | 12 | 152 | 29 | 30 | 1700 | 2680×880×900 | |||
| BAQ16/450 | 16 | 203 | 39 | 40 | 2170 | 3180×880×900 | |||
| BAY4/450 | 4 | 51 | 9 | 10 | 850 | 2030×880×900 | |||
| BAY6/450 | 6 | 76 | 14 | 15 | 1070 | 2280×880×900 | |||
| BAY8/450 | 8 | 102 | 19 | 20 | 1950 | 2530×880×900 | |||
| BAY10/450 | 10 | 122 | 24 | 25 | 2170 | 2780×880×900 | |||
| BAY12/450 | 12 | 152 | 29 | 30 | 2400 | 3030×880×900 | |||
| BAY16/450 | 16 | 203 | 39 | 40 | 2870 | 3530×880×900 | |||
| BAQ10/610 | 10 | 550×550 | 122 | 15 | 16 | 0.6 | 2030 | 2180×950×1010 | |
| BAQ12/610 | 12 | 152 | 19 | 20 | 2290 | 2380×950×1010 | |||
| BAQ15/610 | 15 | 189 | 24 | 25 | 2610 | 2630×950×1010 | |||
| BAQ20/610 | 20 | 250 | 32 | 33 | 3120 | 3030×950×1010 | |||
| BAY10/610 | 10 | 122 | 15 | 16 | 2730 | 2230×950×1010 | |||
| BAY12/610 | 12 | 152 | 19 | 20 | 2990 | 2430×950×1010 | |||
| BAY15/610 | 15 | 189 | 24 | 24 | 3310 | 2680×950×1010 | |||
| BAY20/610 | 20 | 250 | 32 | 33 | 3820 | 3080×950×1010 | |||
| BAQ15/630 | 15 | 630×630 | 189 | 18 | 19 | 2620 | 2325×950×1010 | ||
| BAQ20/610 | 20 | 250 | 24 | 25 | 3100 | 2630×950×1010 | |||
| BAQ30/610 | 30 | 377 | 37 | 38 | 4130 | 3280×950×1010 | |||
| BAY15/610 | 15 | 189 | 18 | 19 | 2870 | 2630×950×1010 | |||
| BAY20/610 | 20 | 250 | 24 | 25 | 3950 | 2930×950×1010 | |||
| BAY30/610 | 30 | 377 | 37 | 38 | 4980 | 3580×950×1010 | |||
| BAY30/800 | 30 | 800×800 | 442 | 22 | 23 | 5710 | 3150×1300×1300 | ||
| BAY40/800 | 40 | 595 | 30 | 31 | 7126 | 3630×1300×1300 | |||
| BAY50/800 | 50 | 748 | 38 | 39 | 8543 | 4110×1300×1300 |

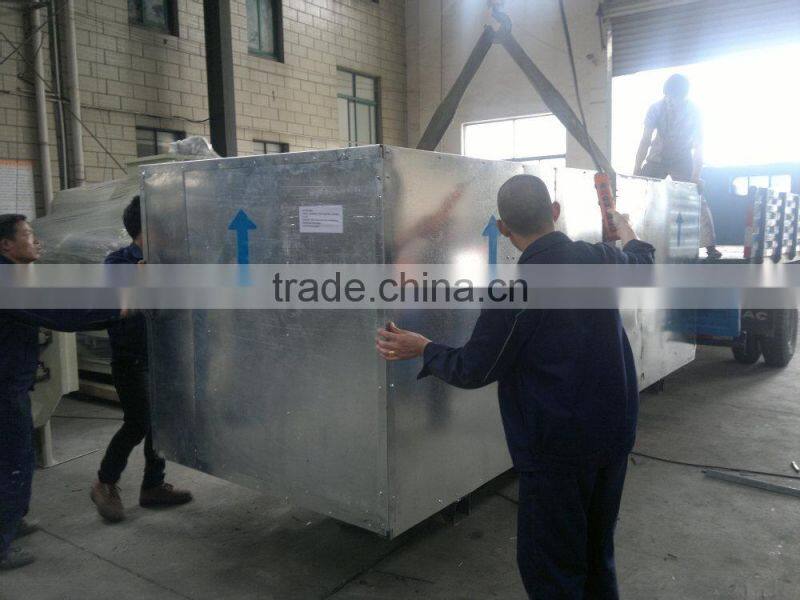

Deliver photos for our customer from Portugal used for dope

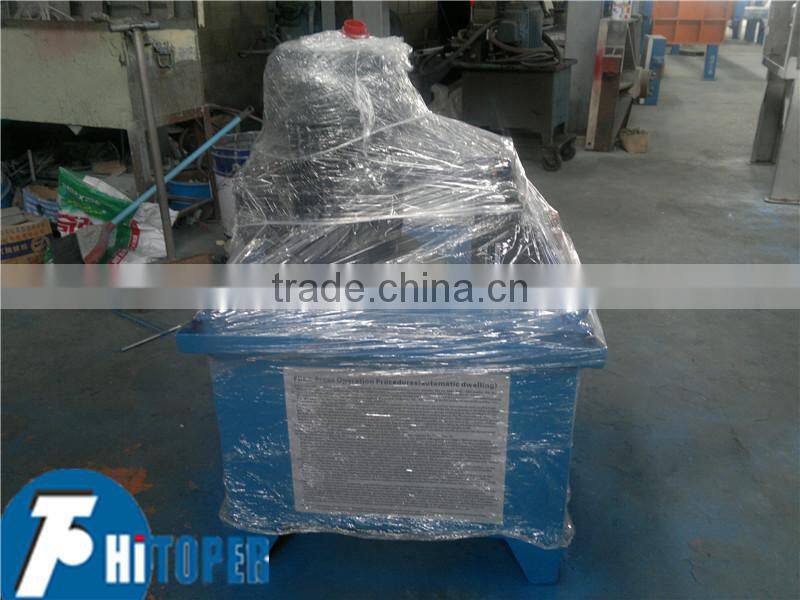

We provide you reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.
1.We have professional person on line to advise you the most suitable type of machie according to your requirement.
2.Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine
3.Arrange the schedule if you pay a visit to our factory.
