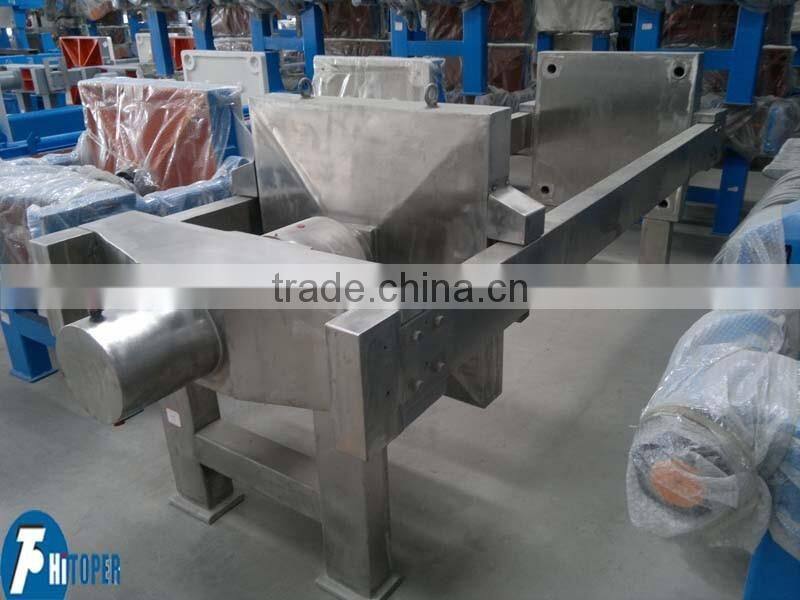

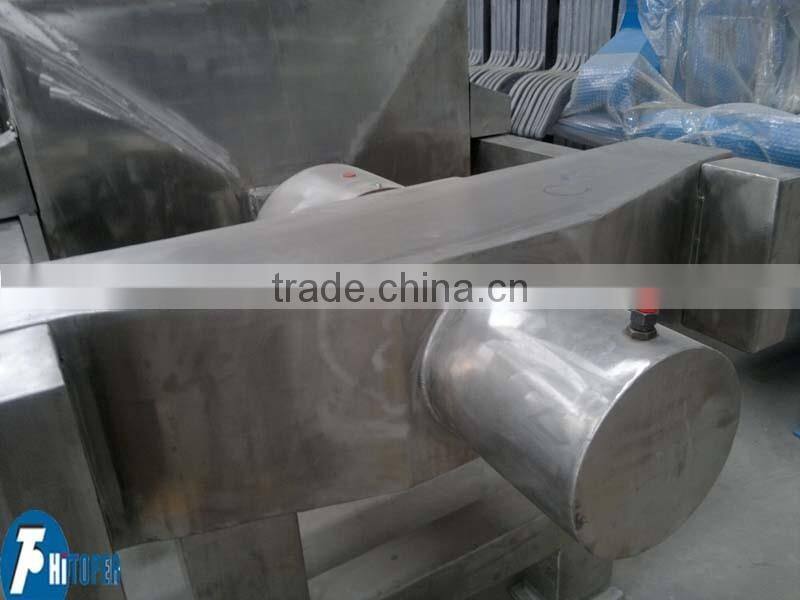

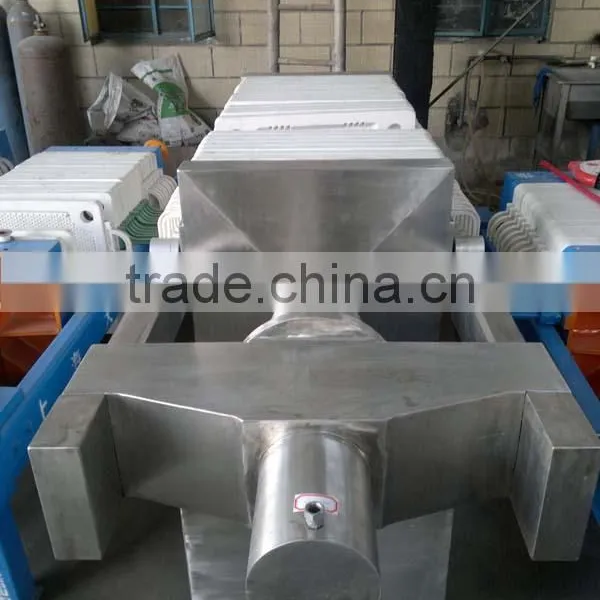

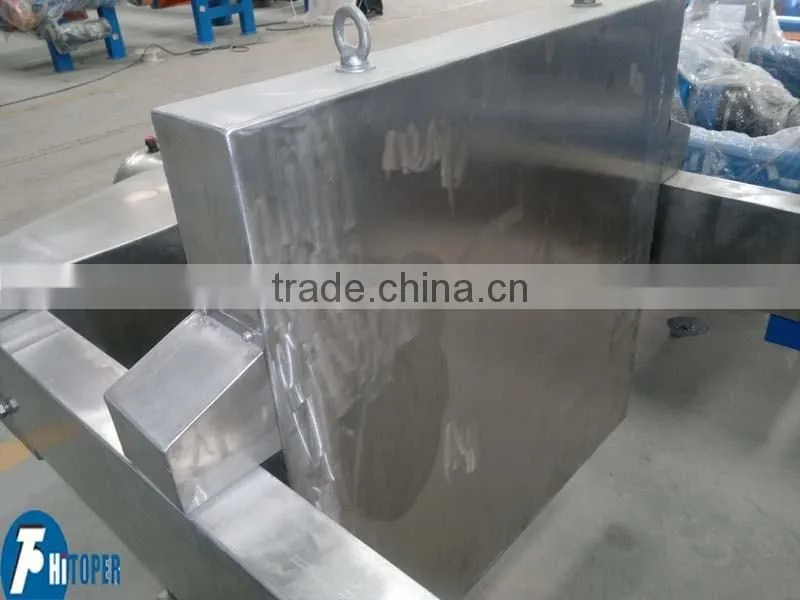

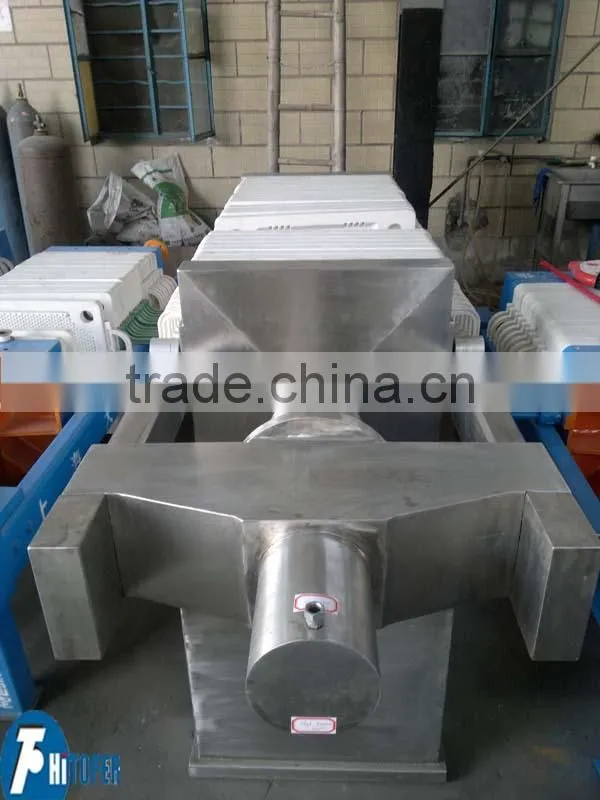

SS304/SS316 filter press, filter press for pharmacy
There are paperboards or filtrating materials to seal the gaps between filtrating frames and filtrating plates. This acid filter press is a stainless plate and frame precise one (SS filter press body with SS 304/316/316L) with large filtrating capacity and filtrating areas over 2m2. A fixed bar is equipped to set paperboard under filter press to make it convenient to put filtrating material. It uses precise degerming paper to filtrate different kinds of health food.
Features:
1.Material: Stainless steel, corrosion resistant acid filter press
2.Filtration pressure: 0.6Mpa-2.5Mpa
ing temperature: 80C
Application:
Acid filtration (pH 1 to 6)
Industrial hydrochloric acid, sulfuric acid, etc.
Filtration of corrosive slurry
Alkali filtration (pH 8 to 12)
Solid-liquid separation of corrosive materials
Dewatering of corrosive products: E.g. chemical slurries containing: HCl, H2SO4, NaOH, KOH, HClO4, Hbr, HI, p-Toluenesulfonic acid, HNO3, HClO3, H2O2, etc
Parameters,
Specification |
Filter area (m2) |
plate size (mm) |
Filter cake thickness (mm) |
Filter chamber volume (L) |
Filter plate number (pcs) |
Frame plate number (pcs) |
|
BAQ1/320 |
1 |
320*320 |
25 |
13 |
4 |
5 |
|
BAQ2/320 |
2 |
25 |
9 |
10 |
|||
BAQ3/320 |
3 |
38 |
14 |
15 |
|||
BAQ4/450 |
4 |
450*450 |
51 |
9 |
10 |
||
BAQ6/450 |
6 |
76 |
14 |
15 |
|||
BAQ8/450 |
8 |
102 |
19 |
20 |
|||
BAQ10/450 |
10 |
122 |
24 |
25 |
|||
BAQ12/450 |
12 |
152 |
29 |
30 |
|||
BAQ16/450 |
16 |
203 |
39 |
40 |
|||
BAY4/450 |
4 |
51 |
9 |
10 |
|||
BAY6/450 |
6 |
76 |
14 |
15 |
|||
BAY8/450 |
8 |
102 |
19 |
20 |
|||
BAY10/450 |
10 |
122 |
24 |
25 |
|||
BAY12/450 |
12 |
152 |
29 |
30 |
|||
BAY16/450 |
16 |
203 |
39 |
40 |
|||
BAQ10/610 |
10 |
550*550 |
122 |
15 |
16 |
||
BAQ12/610 |
12 |
152 |
19 |
20 |
|||
BAQ15/610 |
15 |
189 |
24 |
25 |
|||
BAQ20/610 |
20 |
250 |
32 |
33 |
|||
BAY10/610 |
10 |
122 |
15 |
16 |
|||
BAY12/610 |
12 |
152 |
19 |
20 |
|||
BAY15/610 |
15 |
189 |
24 |
25 |
|||
BAY20/610 |
20 |
250 |
32 |
33 |
|||
BAQ15/630 |
15 |
630*630 |
189 |
18 |
19 |
||
BAQ20/630 |
20 |
250 |
24 |
25 |
|||
BAQ30/630 |
30 |
377 |
37 |
38 |
|||
BAY15/630 |
15 |
189 |
18 |
19 |
|||
BAY20/630 |
20 |
250 |
24 |
25 |
|||
BAY30/630 |
30 |
377 |
37 |
38 |
|||
BAY30/800 |
30 |
800*800 |
442 |
22 |
23 |
||
BAY40/800 |
40 |
595 |
30 |
31 |
|||
BAY50/800 |
50 |
748 |
38 |
39 |
