Petrolum industry filter press, cast iron automatic filter resist of high temperature
- 200 Set / Sets per Month
- Qingdao Tianjin Shanghai
- T/T
- Small Efficient vertical automatic laboratory belt filter press with advanced design
- China professional manufacturer fruit belt press filter
- belt extractor for press juice from fruit and vegetables
- Automatic fruit press belt equipment apple juicer machine
- Ion Exchange Nozzles for Intermediate Plate
- CHAMBER FILTER PRESS
Product Details
Condition: | New | Automatic Grade: | Semi-Automatic | Production Capacity: | 70m2 |
Place of Origin: | Henan, China | Brand Name: | Toper | Model Number: | XZ70/800-30 |
Voltage: | 380V, 50Hz, 3 phase or by need | Power(W): | 4kw | Weight: | 12000kg |
Dimension(L*W*H): | 4960*1300*1300 | Certification: | CE | Warranty: | 18 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Petrolum industry filter press, cast iron automatic filter resist of high temperature
Filter press chamber type
petrolum industry filter press
1.heat-resistant
2.high pressure resistance
3.industrial oil press filter
Our Zhengzhou Toper company produces various models of recessed filter press and plate-frame mechanical filter press, hydraulic filter press, membrane filter press and full-automatic filter press and filter press spare parts. With high quality and best after-sale service, having received a good reputation.
Features of cast iron plate filter machine :
1. Widely be used for dewatering high temperature various oil (engine oil, vegetable oil etc.)
2. Cast iron of plate and frame of filter press for high temperature oil filtration
3. Plate and frame of filter press, the heart of filter press
4. Material of plate and frame: cast iron
5. Max temperature: up to 300 degree celsius
6. Resistance to high temperature and high pressure.
7. Long use life.
8. External size of filter plate: 1000*1000mm
9. Best choice in high temperature oil industry

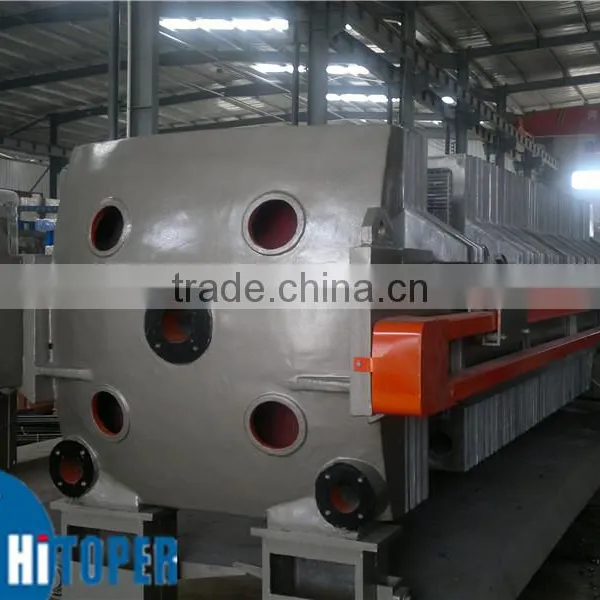

high temperature Cast iron filter press
Filtration is the separation of a fluid-solids solution involving the passing of this mixture through
a porous barrier which retains most of the solid particulates contained in the mixture.
The liquor is either pushed through the filter under pressure. The types and configurations of filters vary widely;
each has its own method of filtering, its own method of discharging the filtrate and discharging the cake.
Depending on the product, sometimes the filtrate is the desired product and other time the cake is
the desired product.
Filter presses are measured by the square foot surface area available for filtering, and the cubic foot cake capacity.
Plate and Frame Cast Iron Filter Press
this is an assembly of plates covered with a filter cloth and frames designed to collect the cake,
held together in a press with that has a head plate and tail plate, the press is closed by a hydraulic pump,
or manually in small presses. The plates and frame can be made of many types of materials,
polypropylene is popular.
Chamber Cast iron filter press
Many times the press has “recessed plates” where two plates form a cavity for collecting cake eliminating the frame.
Filter presses must be opened and the plates separated to remove the cake.
These are batch filters that push the liquor through the filter under pressure. Once the cake capacity is reached
the cake must be removed before you continue the process.
the paramenters of cast iron filter press 320/450/630
Specification | Filter area (m2) | Filter plate size (mm) | cake thickness (mm) | chamber volume (L) | plate number (pcs) | frame number (pcs) | Filtrating pressure (Mpa) | Weight (kg) | |
BQ1/320-25 | 1 | 320*320 | 25 | 13 | 4 | 5 | 1.0 | 380 | |
BQ2/320-25 | 2 | 25 | 9 | 10 | 500 | ||||
BQ3/320-25 | 3 | 38 | 14 | 15 | 620 | ||||
BQ4/450-25 | 4 | 450*450 | 25 | 51 | 9 | 10 | 0.8 | 1060 | |
BQ6/450-25 | 6 | 76 | 14 | 15 | 1160 | ||||
BQ8/450-25 | 8 | 102 | 19 | 20 | 1360 | ||||
BQ12/450-25 | 12 | 152 | 29 | 30 | 1530 | ||||
BQ16/450-25 | 16 | 203 | 39 | 40 | 1760 | ||||
XQ4/450-25 | 4 | 450*450 | 25 | 51 | 9 |
| 1.0 | 960 | |
XQ6/450-25 | 6 | 76 | 14 | 1140 | |||||
XQ8/450-25 | 8 | 102 | 19 | 1460 | |||||
XQ12/450-25 | 12 | 152 | 29 | 1960 | |||||
XQ16/450-25 | 16 | 203 | 39 | 2460 | |||||
BQ20/630-25 | 20 | 630*630 | 25 | 298 | 24 | 25 | 0.6 Cast iron filter press | 3300 | |
BQ30/630-25 | 30 | 452 | 37 | 38 | 4500 | ||||
BQ40/630-25 | 40 | 295 | 49 | 50 | 5600 | ||||
BY20/630-25 | 20 | 298 | 24 | 25 | 3700 | ||||
BY30/630-25 | 30 | 452 | 37 | 38 | 5000 | ||||
BY40/630-25 | 40 | 595 | 49 | 50 | 6100 | ||||
XQ20/630-25 | 20 | 25 | 248 | 24 |
| 0.8 | 3400 | ||
XQ30/630-25 | 30 | 377 | 37 | 4700 | |||||
XQ40/630-25 | 40 | 496 | 49 | 5900 | |||||
XY20/630-25 | 20 | 248 | 24 |
| 3800 | ||||
XY30/630-25 | 30 | 377 | 37 | 5200 | |||||
XY40/630-25 | 40 | 496 | 49 | 6400 |
800 type cast iron filter press technical parameter:
Specification | Filter area(m2) | Filter plate size (mm) | Filter cake thickness (mm) | Filter chamber volume (L) | Filter plate number (pcs) | Filter plate number (pcs) | Filtrating pressure (Mpa) | Weight (kg) | |
BY40/800-25 | 40 | 800*800 | 25 | 496 | 30 | 31 | 0.6 | 6400 |
|
BY50/800-25 | 50 | 624 | 38 | 39 | 7650 |
| |||
BY60/800-25 | 60 | 752 | 46 | 47 | 8900 |
| |||
BY70/800-25 | 70 | 880 | 54 | 55 | 10500 |
| |||
BY80/800-25 | 80 | 1008 | 62 | 63 | 11800 |
| |||
XY40/800-25 | 40 | 30 | 595 | 30 |
| 0.8 | 6750 |
| |
XY50/800-25 | 50 | 749 | 38 | 8100 |
| ||||
XY60/800-25 | 60 | 902 | 46 | 9400 |
| ||||
XY70/800-25 | 70 | 1056 | 54 | 11100 |
| ||||
XY80/800-25 | 80 | 1210 | 62 | 12500 |
|
cast iron filter plate
frame-plate type and the chamber type
automatc pulling plates devices
Cast iron filter press equpped with pulling plate device and automatic bomb door ststem
Note: Flange size should be in accordance with that of polypropylene frame filter press.
We provide you reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.
1.We have professional person on line to advise you the most suitable type of machie according to your requirement.
2.Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine
3.Arrange the schedule if you pay a visit to our factory
4.Our technical engineer can also to your country guid for the installation,operation test ,solve problems and so on.
All of our products sereis:
1. Program-controlled automatic filter press
2. Membrane filter press
3. Hydraulic compress filter press
4. Mechanical compress filter press
5. Jack filter press
6. Cast iron plate and frame/chamber filter press
7. Stainless steel plate and frame filter press
8. Round plate filter press
9. Cotton cake filter press
10. Cardboard filter press
11. DY belt filter press
12. DYX high pressure belt filter press
13. DNY rotary drum thickning/dehydrating belt filter press
14. Triple-belt thickning and dehydrating filter press
15. SS type three-foot upper discharge centrifuge
16. SD type three-foot and filter bag hoist discharge centrifuge
17. PD type filter bag hoist discharge centrifuge
18. Centrifuge of up discharge, three foot, clean series SSB, SB
19. SX type manual top discharge centrifuge
20. PS type manual top discharge centrifuge
21. SGZ type automatic scraper bottom discharge centrifuge
22. PGZ type scarper bottom discharge centrifuge
23. LW series decanter centrifuge
24. Tubular centrifuge
25. Multi-layer stainless steel frame filter
26. Bag filter
27. Diatomite filter
28. Filter late
29. Filter cloth
30. Vacuum disc filter
