Small high quality hydraulic compress filter press easy operation

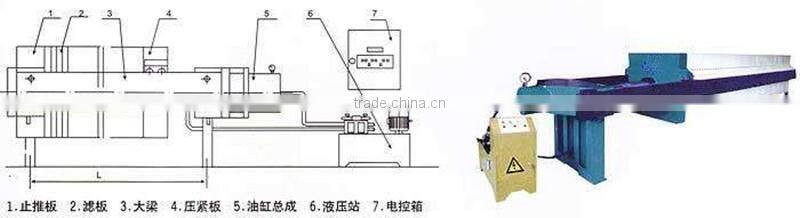

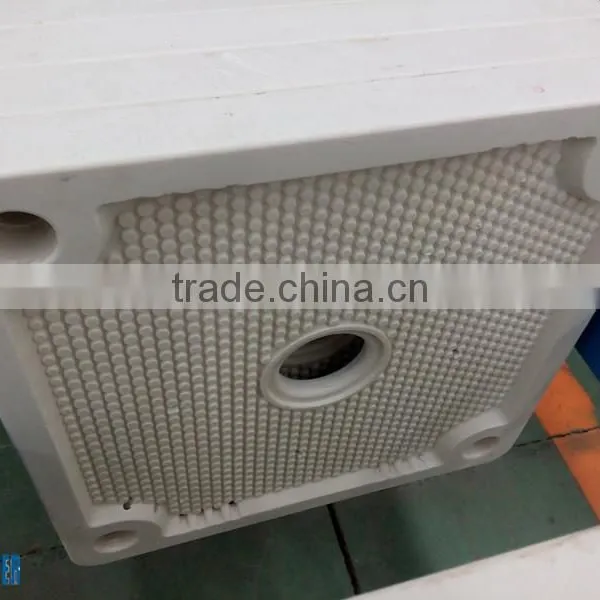

The surface of the filter plate is pitting and convex platform, to support the filter cloth.The center of the filter plate hole and corner, then assembled complete channel, can enter the suspending liquid, washing water and lead to filtrate.Filter plate with a handle on each side, the bracket on the beam, pressure filter plate by compaction.Filter plate filter cloth between the sealing effect.
Operating principle
In transporting pump pressure, will need to filter the material liquid into each filter chamber, through the filter medium, separate the solid and liquid.On the filter cloth filter cake formation, until full of filter chamber to form a filter cake.Filtrate through filter cloth and filter plate groove along flow into the pore channels of produced liquid, concentration of discharge.After filtering, can pass into the washing water washing filter residue.After washing, and sometimes into the compressed air, remove the rest of the washing liquid.Filter after the open pressure filter removable filter cake, cleaning cloth, keep plate filter to the next work cycle.

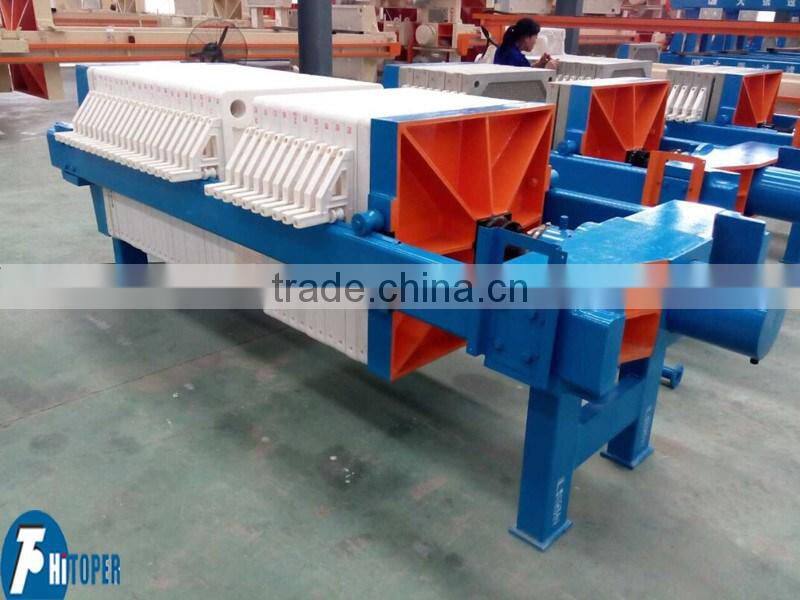

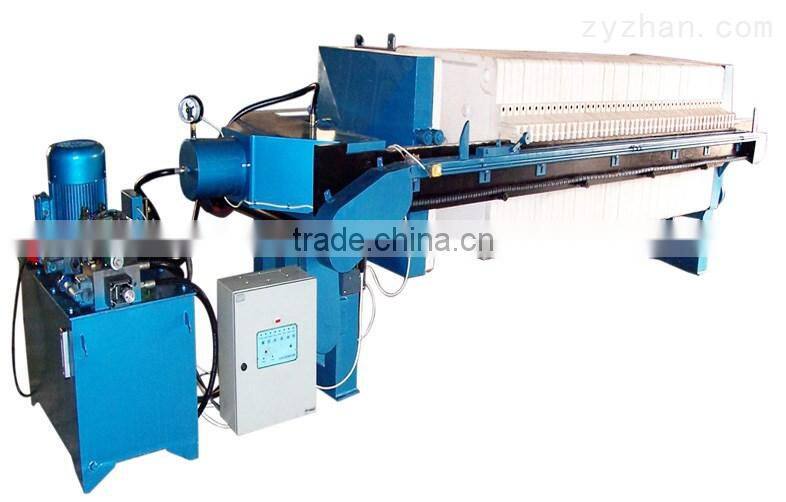

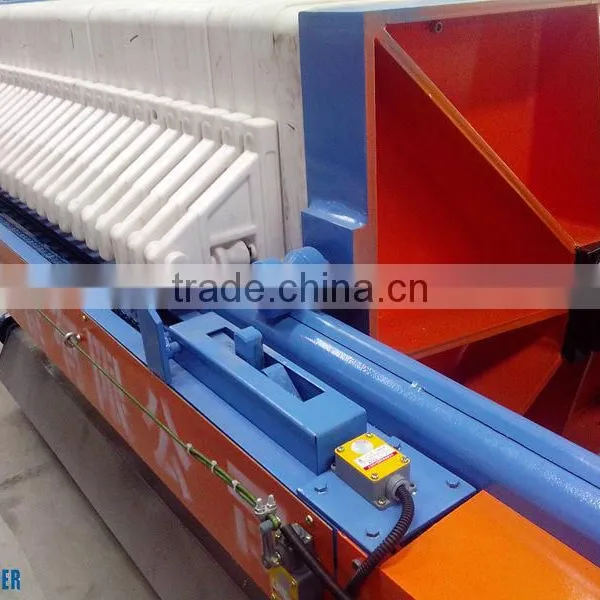

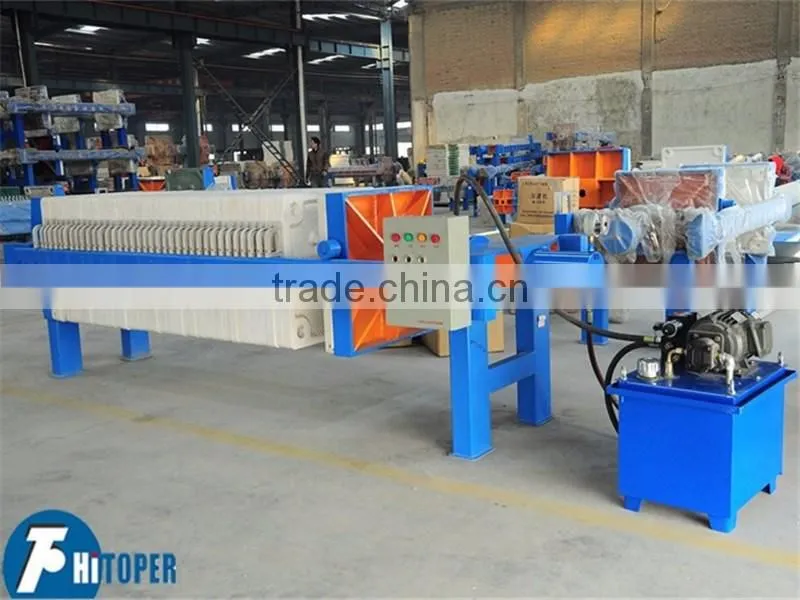

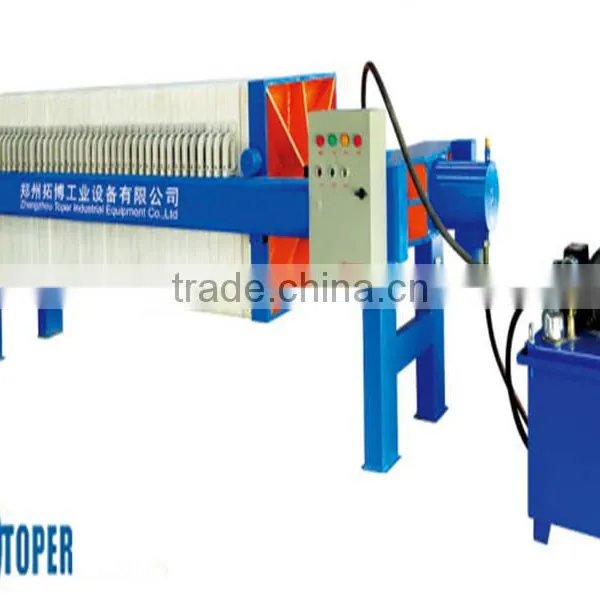

Photos
Application
Our filter and separation equipments are widely used in mining,metallurgy,petroleum,chemical,environmental protection,electroplating,food,pharmacy,oil,biological,beverage,brewing,textiles,printing and dyeing,papermaking,inorganic salt,coal washing,sewage treatment,ceramics,leather such industries.

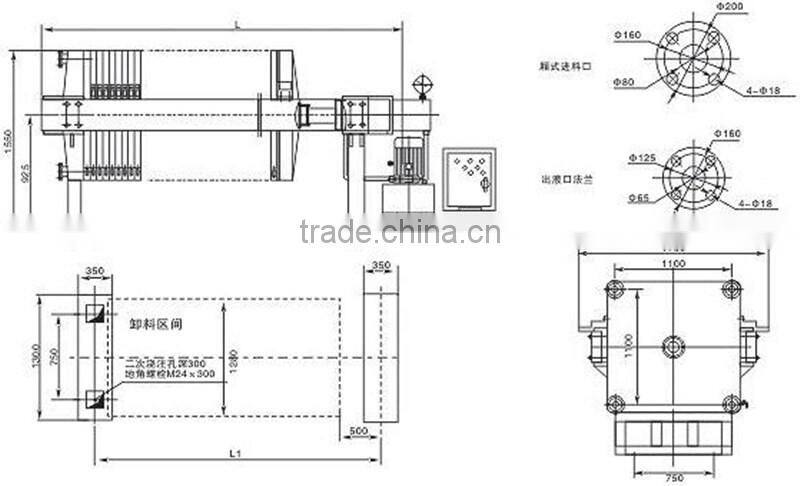

All types technical paramenters

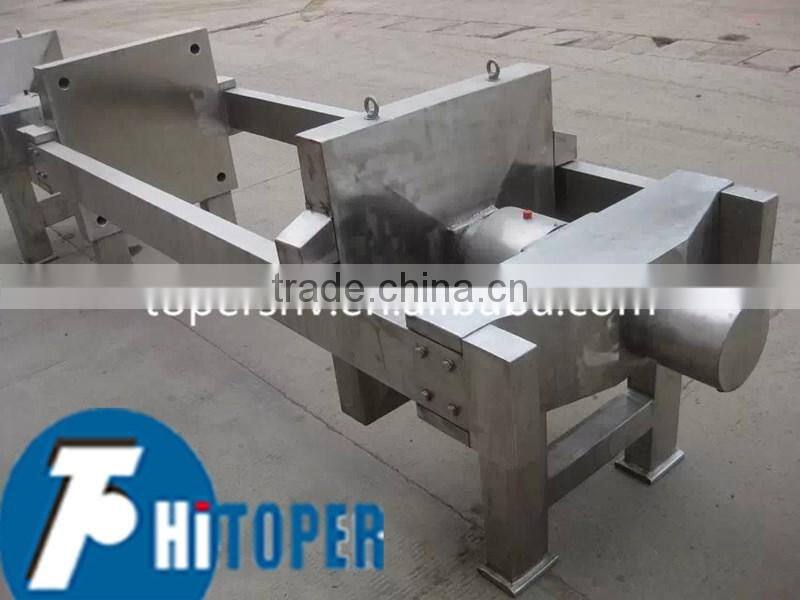

According to the requirements of medicine,food and other industries,the machine frame can be coated with stainless steel.using electric contact pressure gauge to maintain pressure,easy operation,stable,reliable structure.

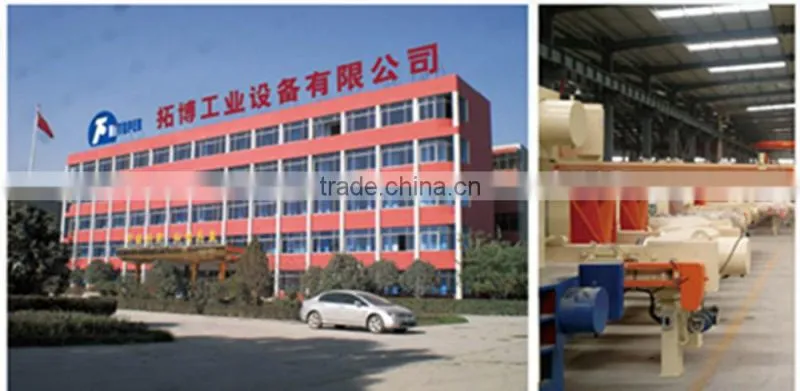

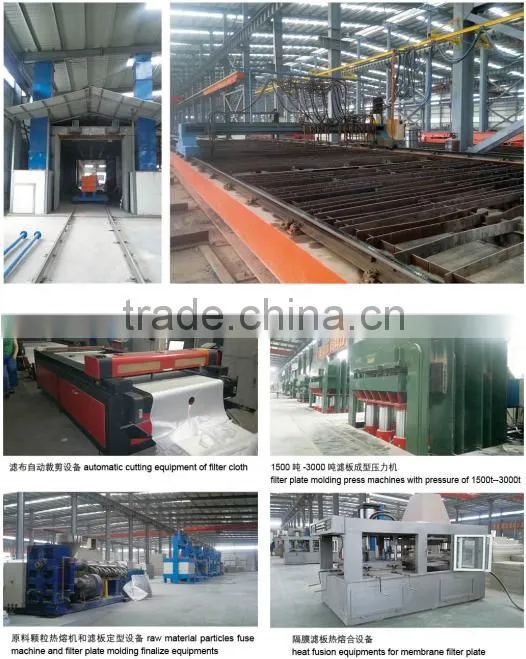

factory ability
1. Manufacture experience,
Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment.
2. Technology capacity,
We join and make the standard of filter press industry in China.
3. Our superiority,
More than 250,000 m2 land area and continue developing.
4. Best professional,
Twenty years, we use the service and innovation constantly provide convenience for all over the world.Our filtration and separation equipment has been the strongest in China.
Our Services:
Since 2006,Our equipment has been exported to many countries all over the world such as India, Pakistan, Bangladesh, Indonesia, Philippines, Malaysia, Vietnam, Singapore, Turkey, Israel, Burma, Jordan, Yemen, Iran, Iraq, Afghanistan, Syria, Kuwait, Kazakhstan, Qatar, Korea, Azerbaijan, The UAE, Bhutan, Thailand, Lebanon, Bahrain, Egypt, Libya, Ethiopia, Kenya, Somalia, Tanzania, Liberia, Ivory Coast, Ghana, Nigeria, Cameroon, Chad, Guinea, Zambia, Zimbabwe, Malawi, Congo, Gabon, Angola, Mozambique, Botswana, Namibia, South Africa, Argentina, Bahamas, Bolivia, Brazil, Canada, Columbia, Chile, Cuba, Venezuela, Ecuador, Guatemala, Guyana, Honduras, Haiti, Mexico, Peru, Uruguay, Paraguay, Suriname, Australia, Russia etc.
All of our products
1. Program-controlled automatic filter press
2. Membrane filter press
3. Hydraulic compress filter press
4. Mechanical compress filter press
5. Jack filter press
6. Cast iron plate and frame/chamber filter press
7. Stainless steel plate and frame filter press
8. Round plate filter press
9. Cotton cake filter press
10. Cardboard filter press
11. DY belt filter press
12. DYX high pressure belt filter press
13. DNY rotary drum thickning/dehydrating belt filter press
14. Triple-belt thickning and dehydrating filter press
15. SS type three-foot upper discharge centrifuge
16. SD type three-foot and filter bag hoist discharge centrifuge
17. PD type filter bag hoist discharge centrifuge
18. Centrifuge of up discharge, three foot, clean series SSB, SB
19. SX type manual top discharge centrifuge
20. PS type manual top discharge centrifuge
21. SGZ type automatic scraper bottom discharge centrifuge
22. PGZ type scarper bottom discharge centrifuge
23. LW series decanter centrifuge
24. Tubular centrifuge
25. Multi-layer stainless steel frame filter
26. Bag filter
27. Diatomite filter
28. Filter late
29. Filter cloth
30. Vacuum disc filter
Small high quality hydraulic compress filter press easy operation
Small high quality hydraulic compress filter press easy operation
Small high quality hydraulic compress filter press easy operation
