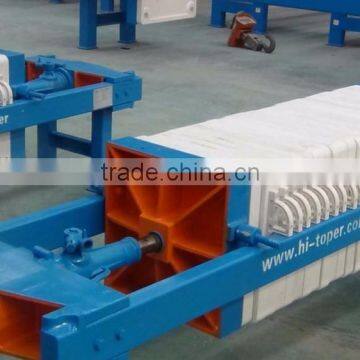

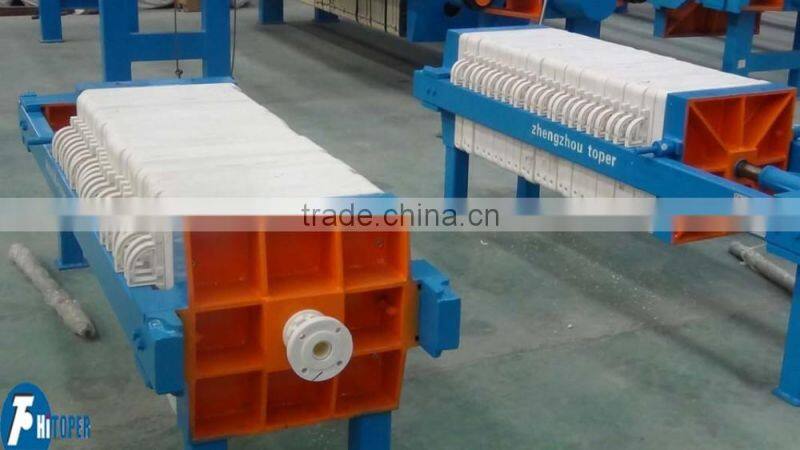

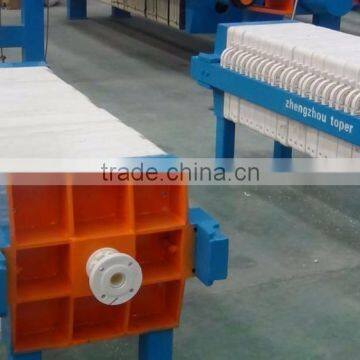

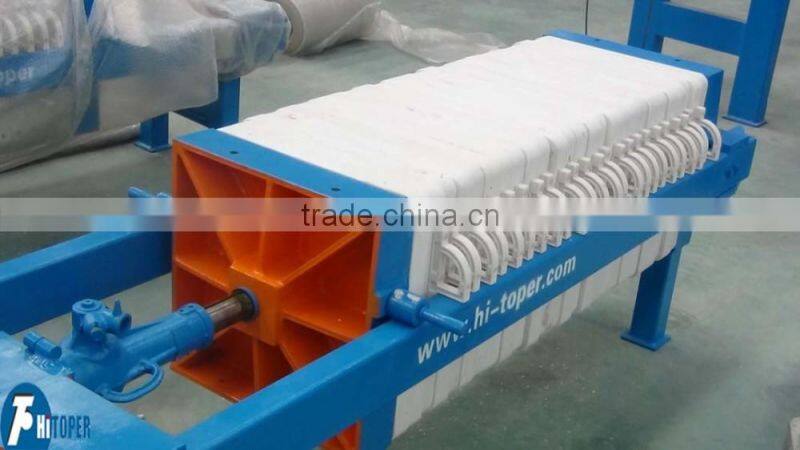

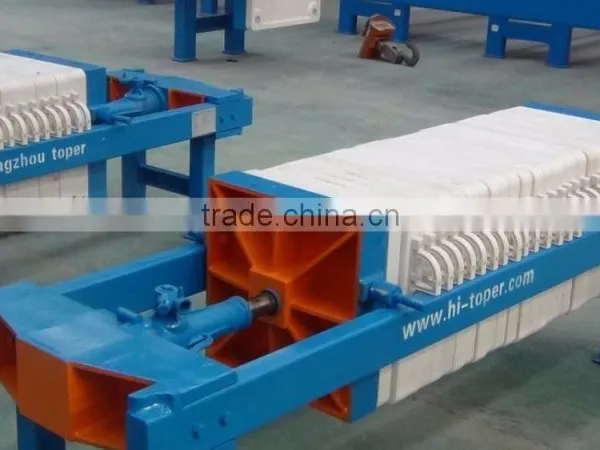

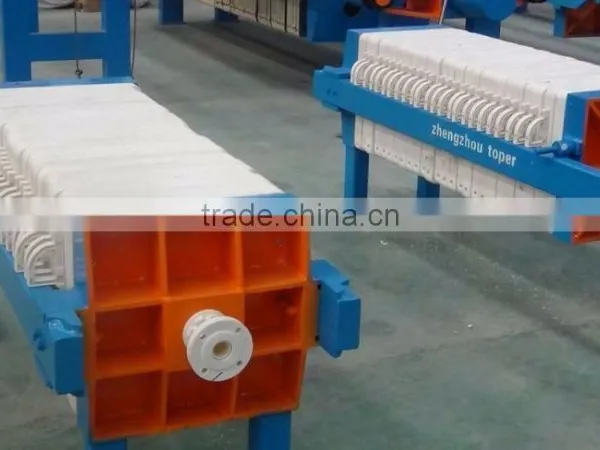

Easy operation filter press, jack filter press with screw press design
We manufacture manually operated filter press(jack filter press) with ratchet closing device. The system consists of ratchet mechanism, pinion and gear wheel. By applying a ratchet lever to the pinion shaft the force is transmitted by small pinion to the larger gear-wheel which provides the final lightning on the plate pack.
Characteristics,
The structure is reasonable designed
The capability is steadily and reliable
Easy to control and maintain
It is widely used in areas where solid-liquid separations are needed such as water treatments, sewage processing, etc. It is suitable for small scale filtering areas normally using a low pressure of less than 0.4Mpa.
Specification |
Filter area (m2) |
Filter plate size (mm) |
Filter cake thickness (mm) |
Filter chamber volume (L) |
Filter plate number (pcs) |
Filtrating pressure (Mpa) |
Weight (kg) |
|
XQ1/320-30U |
1 |
320*320 |
30 |
15 |
4 |
0.6 |
490 |
|
XQ2/320-30U |
2 |
31 |
9 |
528 |
|
|||
XQ3/320-30U |
3 |
46 |
14 |
550 |
|
|||
XQ4/450-30U |
4 |
450*450 |
60 |
9 |
0.6 |
780 |
|
|
XQ6/450-30U |
6 |
91 |
14 |
830 |
|
|||
XQ8/450-30U |
8 |
121 |
19 |
880 |
|
|||
XQ10/450-30U |
10 |
151 |
24 |
930 |
|
|||
XQ12/450-30U |
12 |
182 |
29 |
980 |
|
|||
XQ15/450-30U |
15 |
225 |
36 |
1030 |
|
|||
XQ16/450-30U |
16 |
243 |
39 |
1050 |
|
|||
XQ15/630-30U |
15 |
630*630 |
226 |
18 |
0.6 |
1257 |
|
|
XQ20/630-30U |
20 |
297 |
24 |
1347 |
|
|||
XQ30/630-30U |
30 |
452 |
37 |
1693 |
|
|||
XQ40/630-30U |
40 |
595 |
49 |
2193 |
|
All of our products
1. Program-controlled automatic filter press
2. Membrane filter press
3. Hydraulic compress filter press
4. Mechanical compress filter press
5. Jack filter press
6. Cast iron plate and frame/chamber filter press
7. Stainless steel plate and frame filter press
8. Round plate filter press
9. Cotton cake filter press
10. Cardboard filter press
11. DY belt filter press
12. DYX high pressure belt filter press
13. DNY rotary drum thickning/dehydrating belt filter press
14. Triple-belt thickning and dehydrating filter press
15. SS type three-foot upper discharge centrifuge
16. SD type three-foot and filter bag hoist discharge centrifuge
17. PD type filter bag hoist discharge centrifuge
18. Centrifuge of up discharge, three foot, clean series SSB, SB
19. SX type manual top discharge centrifuge
20. PS type manual top discharge centrifuge
21. SGZ type automatic scraper bottom discharge centrifuge
22. PGZ type scarper bottom discharge centrifuge
23. LW series decanter centrifuge
24. Tubular centrifuge
25. Multi-layer stainless steel frame filter
26. Bag filter
27. Diatomite filter
28. Filter late
29. Filter cloth
30. Vacuum disc filter
Easy operation filter press, jack filter press with screw press design
Easy operation filter press, jack filter press with screw press design
Easy operation filter press, jack filter press with screw press design
