Membrane Filter Press For Porcelain Kaolin
Our company produces various models of recessed filter press and plate-frame mechanical filter press, hydraulic filter press, membrane filter press and full-automatic filter press and filter press spare parts. And membrance filter press has received a very good reputation.
Membrane filter press consists of membrane plate and filter chamber made of ordered filter plates. The slurry materials are sent to filter chamber by the pressure of feeding pump and then go into filtrating media(filter cloth) to separate solid and liquid in slurry material.When solid in slurry material becomes cake shape, air is sent to membrane to fully squeeze the solid to reduce moisture content. If users have high requirement about filtration of sticky material and moisture content ratio, this machine has its own special characteristics to meet the need.
Membrane plates are constructed in the same basic method as the recessed chamber plates. The drainage surface of the plates, however, are flexible. After filtration, when the chambers are filled with solids and while the filter press is stilled, air pressure is exerted behind the flexible drainage of the plate. The membrane in turn inflates to exert pressure on the filter cake which have been formed. The cakes are then squeezed to reduce the amount of remaining moisture prior to cake discharge
This Membrane Filter Press, however, can be stopped at the most efficient point in its cycle. By applying pressure to the membrane built into the filter plate, the cake is squeezed to achieve final solids content in a significantly reduced cycle time.
Applications of membrnae filter press:
Urban sewage treatment
Commodity and Specialty Chemicals
Pharmaceutical Raw Materials and Intermediates
Food Products and Ingredients
Clay and Ceramic Powders
Dyes and Pigment
Industrial Waste Dewatering and Recycling
Oil industry
Technical paremeters of membrane plate filter press:
Type | Filter area(m2) | Plate size(mm) | Filter chamber volume(L) | Cake thickness(mm) | Number plate(pcs) | Filtration pressure | Motor power(Kw) | Weight(t) | Dimensions(mm) |
XG30/870-30U | 30 | 870*870 | 460 | 30 | 23 | 0.6 | 2.2 | 2.68 | 3120*1390*1700 |
XG40/870-30U | 40 | 595 | 29 | 3.05 | 3510*1390*1700 | ||||
XG50/870-30U | 50 | 748 | 37 | 3.47 | 4150*1390*1700 | ||||
| XG60/870-30U | 60 | 902 | 45 | 4.00 | 4730*1390*1700 | ||||
XG70/870-30U | 70 | 1056 | 53 | 4.58 | 5440*1390*1700 | ||||
XG80/870-30U | 80 | 1210 | 61 | 5.08 | 5760*1390*1700 | ||||
XG50/1000-30U | 50 | 1000*1000 | 752 | 27 | 0.6 | 4.0 | 4.35 | 4430*1500*1800 | |
XG60/1000-30U | 60 | 908 | 33 | 4.80 | 4890*1500*1800 | ||||
XG70/1000-30U | 70 | 1063 | 39 | 5.26 | 5350*1500*1800 | ||||
XG80/1000-30U | 80 | 1219 | 45 | 5.72 | 5800*1500*1800 | ||||
XG100/1000-30U | 100 | 1505 | 57 | 6.55 | 6710*1500*1800 | ||||
XG120/1000-30U | 120 | 1816 | 69 | 7.47 | 7466*1500*1800 |

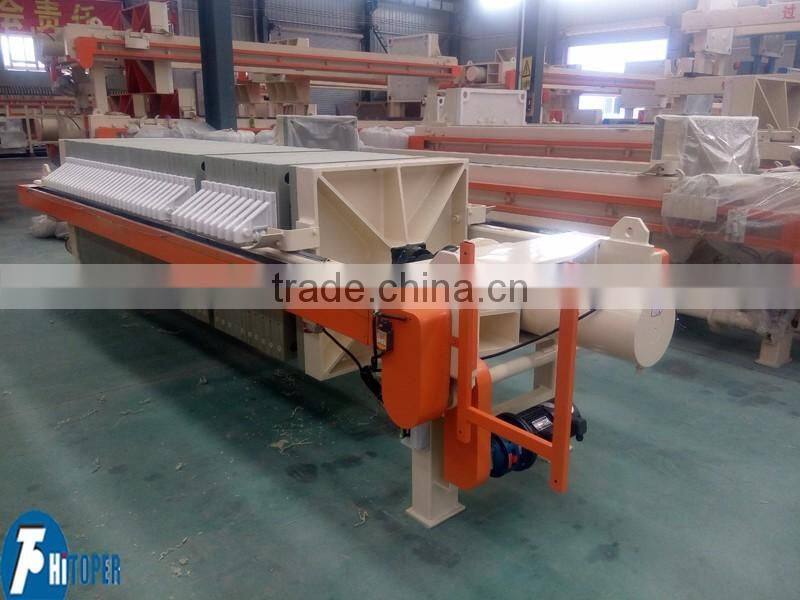

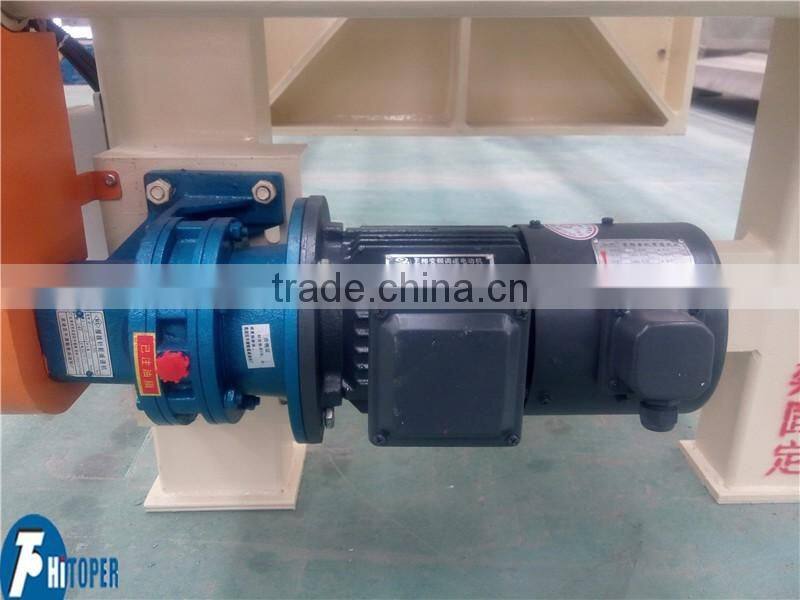

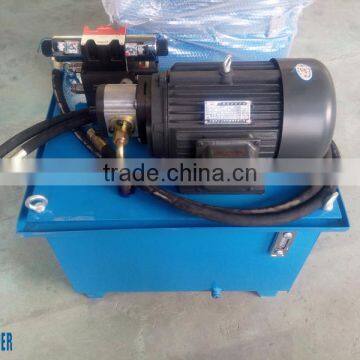

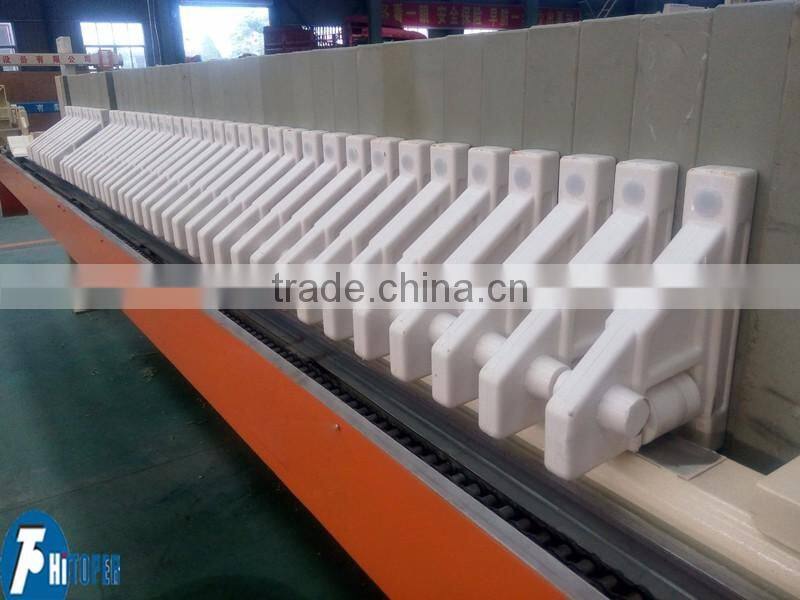

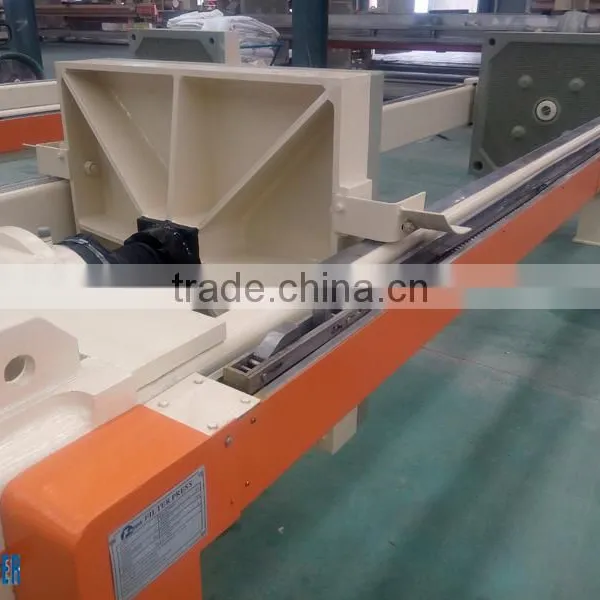

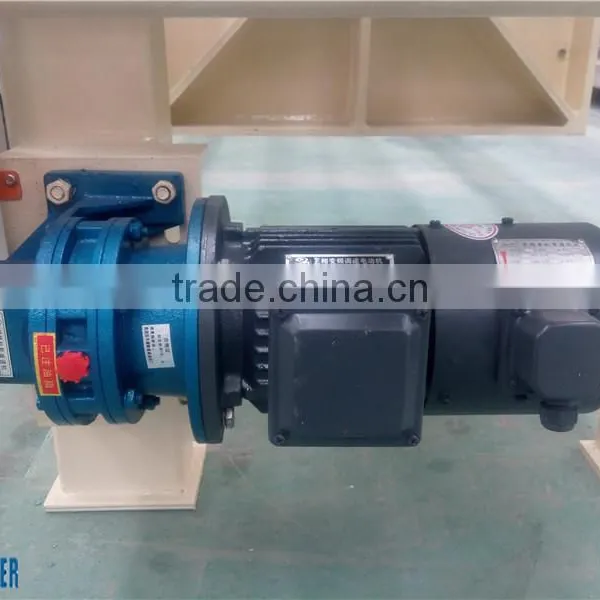

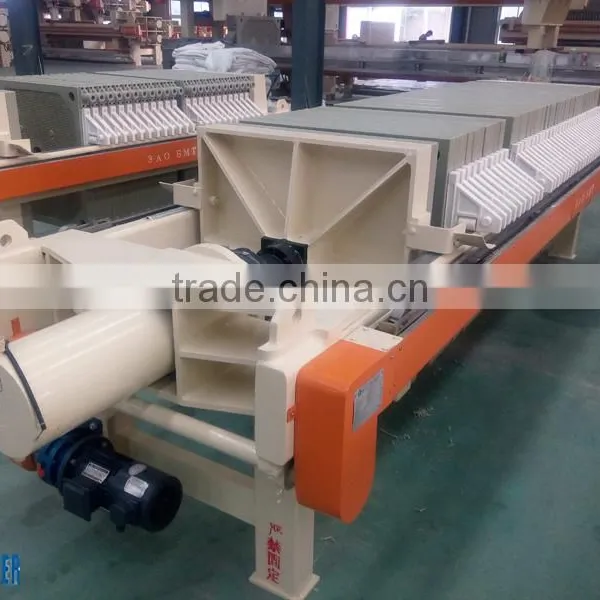

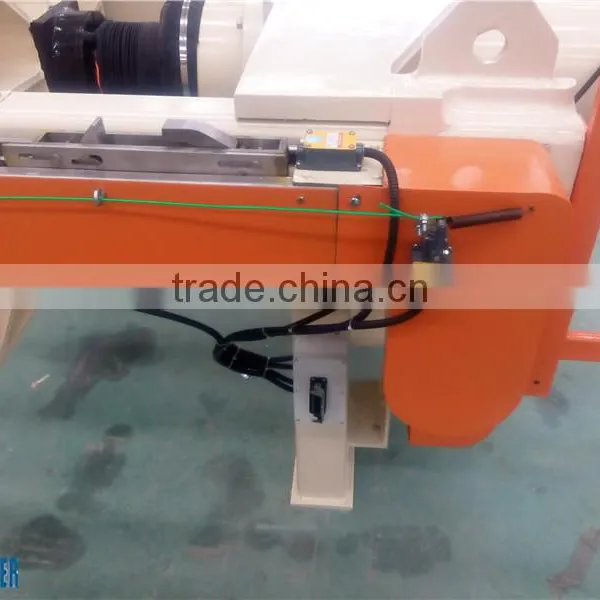

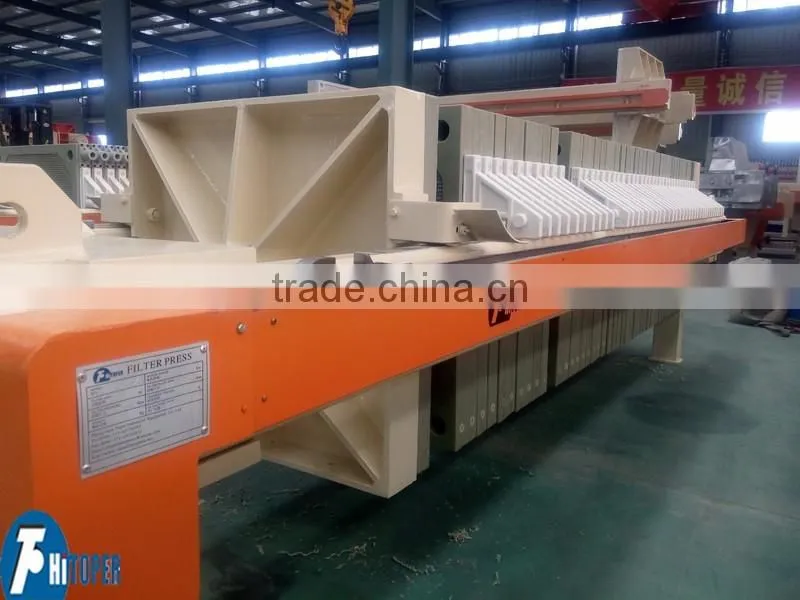

Detailed pictures of membrane filter press:
All of our products as following,
1. Program-controlled automatic filter press
2. Membrane filter press
3. Hydraulic compress filter press
4. Mechanical compress filter press
5. Jack filter press
6. Cast iron plate and frame/chamber filter press
7. Stainless steel plate and frame filter press
8. Round plate filter press
9. Cotton cake filter press
10. Cardboard filter press
11. DY belt filter press
12. DYX high pressure belt filter press
13. DNY rotary drum thickning/dehydrating belt filter press
14. Triple-belt thickning and dehydrating filter press
15. SS type three-foot upper discharge centrifuge
16. SD type three-foot and filter bag hoist discharge centrifuge
17. PD type filter bag hoist discharge centrifuge
18. Centrifuge of up discharge, three foot, clean series SSB, SB
19. SX type manual top discharge centrifuge
20. PS type manual top discharge centrifuge
21. SGZ type automatic scraper bottom discharge centrifuge
22. PGZ type scarper bottom discharge centrifuge
23. LW series decanter centrifuge
24. Tubular centrifuge
25. Multi-layer stainless steel frame filter
26. Bag filter
27. Diatomite filter
28. Filter late
29. Filter cloth
30. Vacuum disc filter
Membrane Filter Press For Porcelain Kaolin
Membrane Filter Press For Porcelain Kaolin
Membrane Filter Press For Porcelain Kaolin
