smelt industry filter press for zinc smelting process
- 30 Set / Sets per Month
- Qingdao Shanghai
- T/T L/C D/P D/A Credit Card
-
Small Efficient vertical automatic laboratory belt filter press with advanced design
-
China professional manufacturer fruit belt press filter
-
belt extractor for press juice from fruit and vegetables
-
Automatic fruit press belt equipment apple juicer machine
-
Ion Exchange Nozzles for Intermediate Plate
-
CHAMBER FILTER PRESS
Product Details
Condition: | New | Automatic Grade: | Automatic | Production Capacity: | 100m2 |
Place of Origin: | Henan, China | Brand Name: | TOPER | Model Number: | XZ100/1000-30U |
Voltage: | 380V/220V/400V | Power(W): | 4000 | Weight: | 6628kg |
Dimension(L*W*H): | 5780*1500*1400mm | Certification: | CE | Warranty: | 18 months after delirvery date. |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
smelt industry filter press for zinc smelting process
There're a total of three each working procedure in zinc smelting process need to use filter press equipment:
Neutral that adding zinc supernatant fluid after purification filter, the filter press, filter residue consists of copper, cadmium and zinc, sent to the recovery of cadmium.
Hot acid leaching pulp concentrate filtering, can use plate and frame type filter press, membrane filter press and filter press, concentrate liquid-solid ratio is about 2.5 4, mass fraction of about 20%, zinc in residue was taken to the fireworks recovery of zinc processing system
With the common function of hydraulic closure & opening, add another new design---plate shifter device, when a cycle finish and cake formation. it will help to discharge the cake automatically.
Together with other available automatic device for your choosing.
1. Automatic cloth cleaning system
2. Automatic vibration device

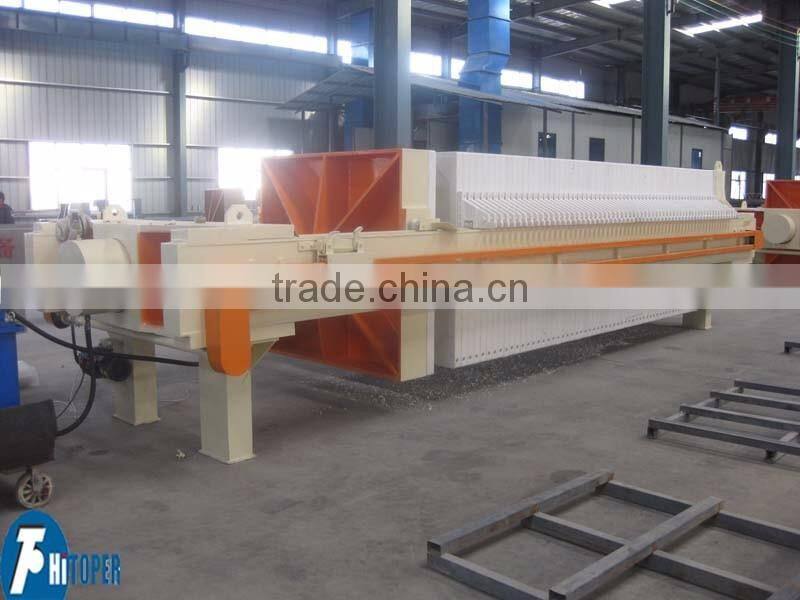

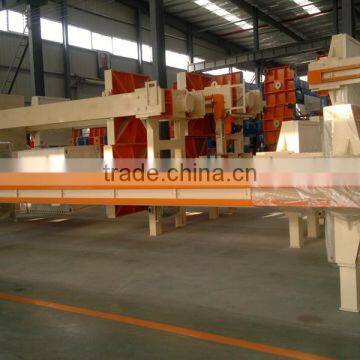

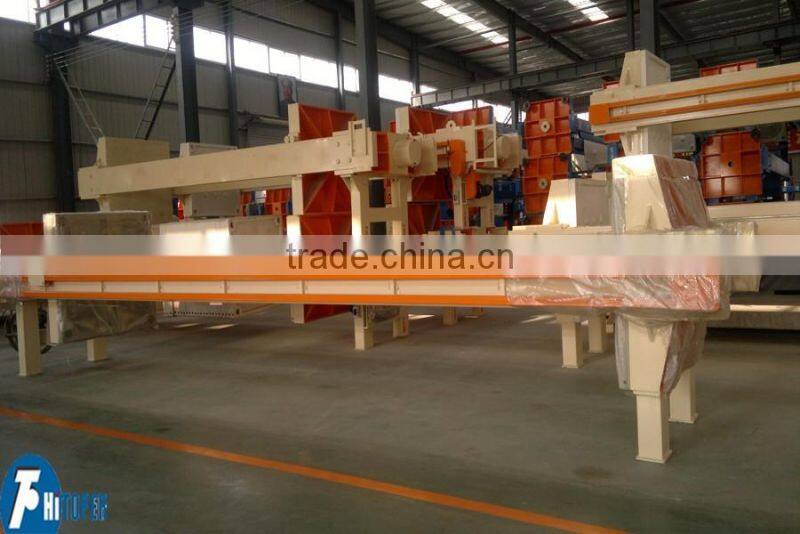

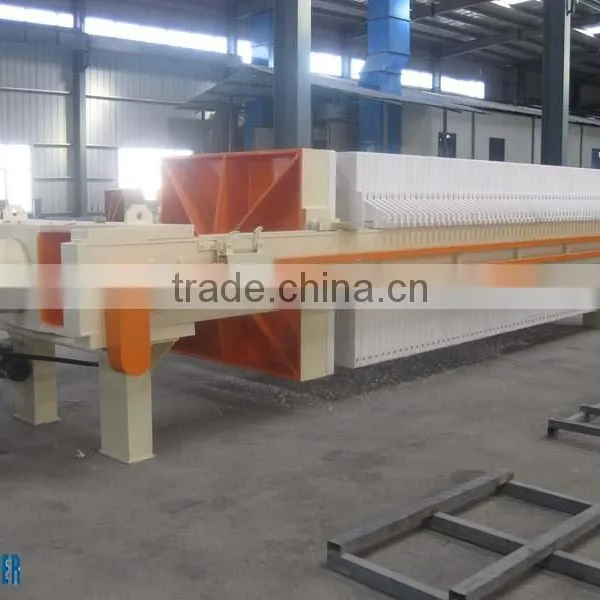

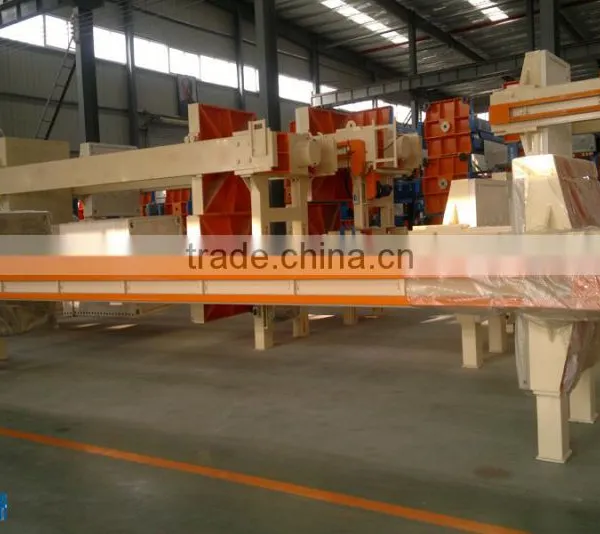

This smelt industry filter press is the recessed chamber one with center feeding. It consists of beam, filter plate, filter cloths, hydraulic unit and electric control cabinet.
1. Beam, High quality carbon steel Q345B and processed with sand blasting to remove rust and oxide skin, then painted by epoxy primer to get higher intensity and corrosion resistance.

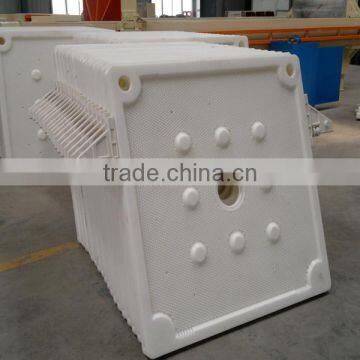

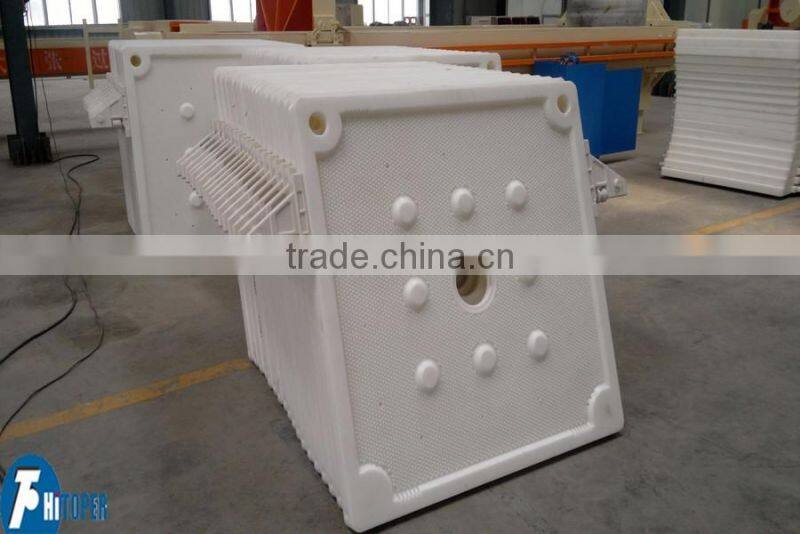

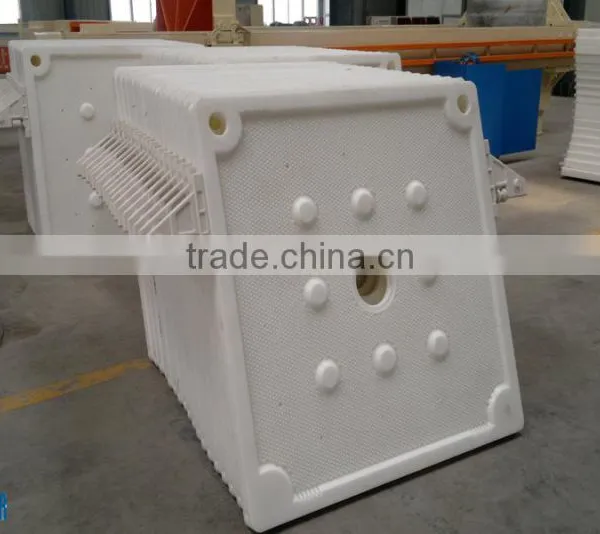

2. Filter plate, Polypropylene(PP) with acid & alkali resistance, anticorrosion, innocuity, tasteless, light weight and high strength.
3. Filter cloths, High quality polypropylene acid and alkali proof or high quality polyester acid.

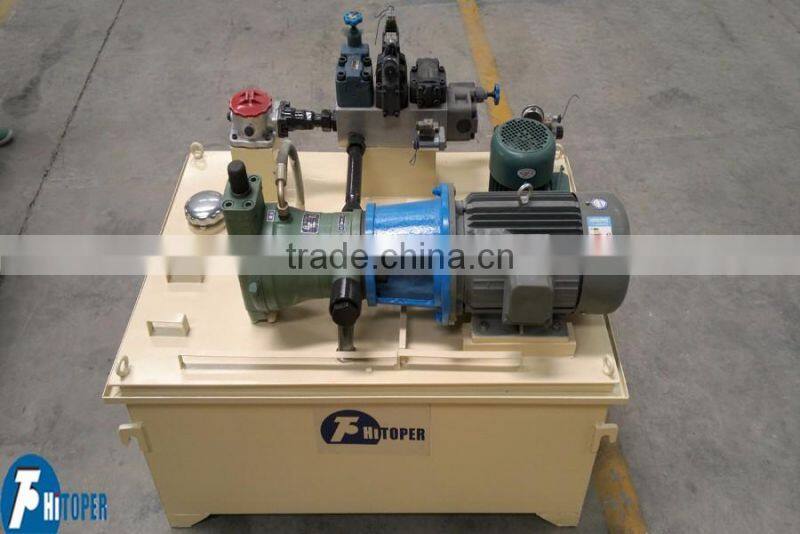

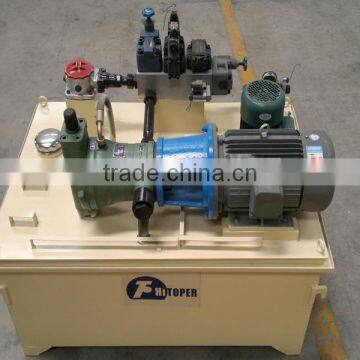

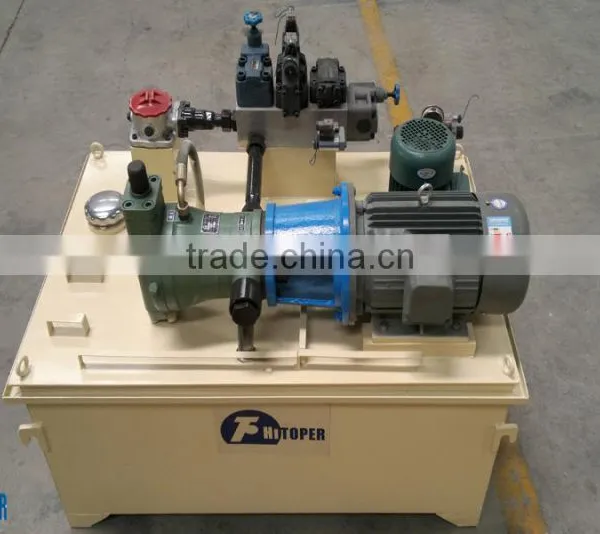

4. Hydraulic unit, China brand famous pumps and hydraulic valve; Carbon steel bending welding, sealing, air filtration external oil pump, cooling effect is good, maintenance is convenient; High and low pressure oil pipe for gb soft connection
5. Electric control cabinet, PLC control cabinet with Siemens brand or schneider brand Electrical components, Split type or can be fixed on the beam.
Operation process includes the following,

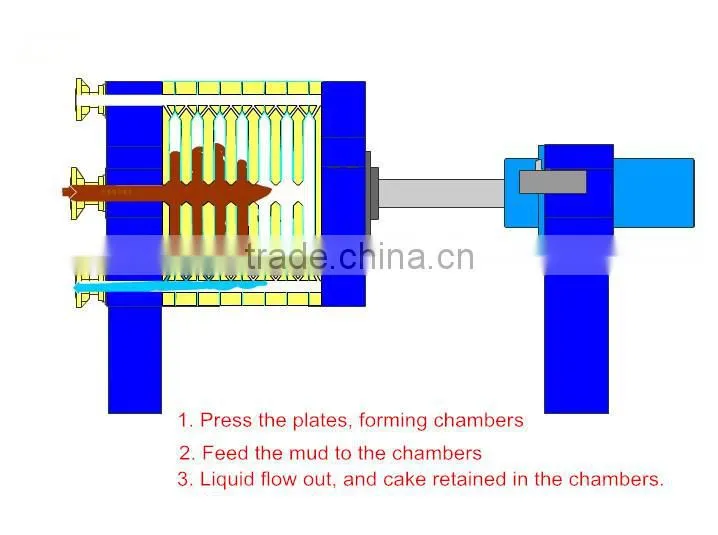

1. The hydraulic unit drive the head plate to press the middle plates and filter cloth between head plate and tail plate. And chambers form between every two plates.

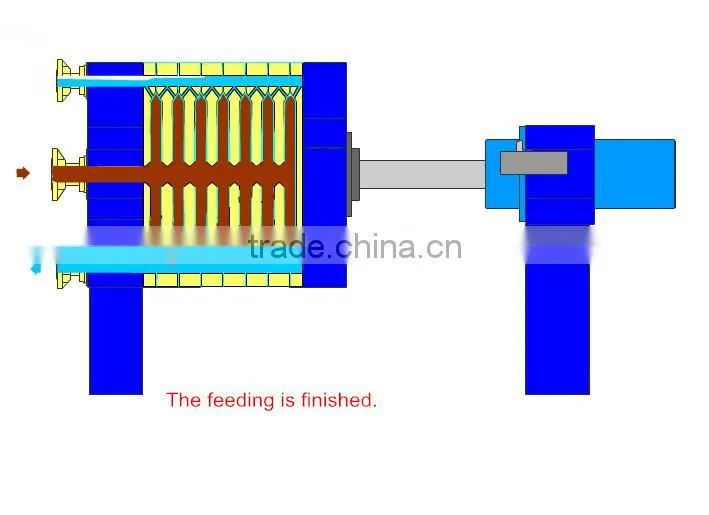

2. The pump will deliver the mud into the chambers. Solids retainled in the chamber to be cake, and liquid flow out. Until the cakes is full. Then pump stops.
3. With about 10 minutes pressure holding. When you see there is no liquid flow it, the squeezing process finishs.

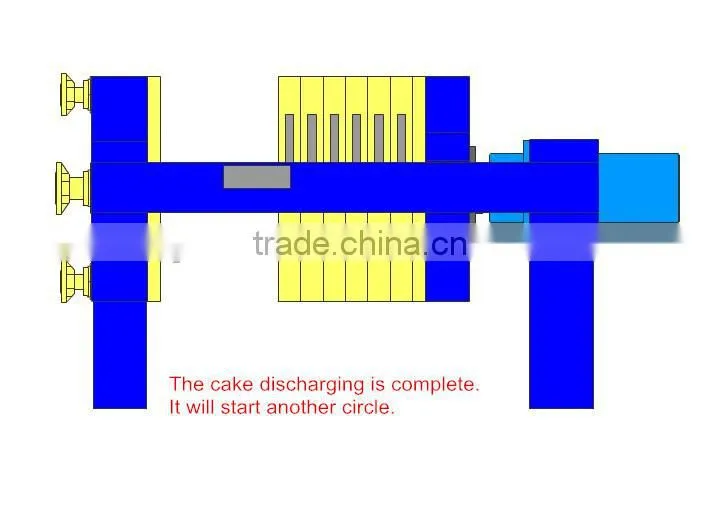

4. The plate shifter device will help to pull the plates one by one, and cake will discharge automatically.

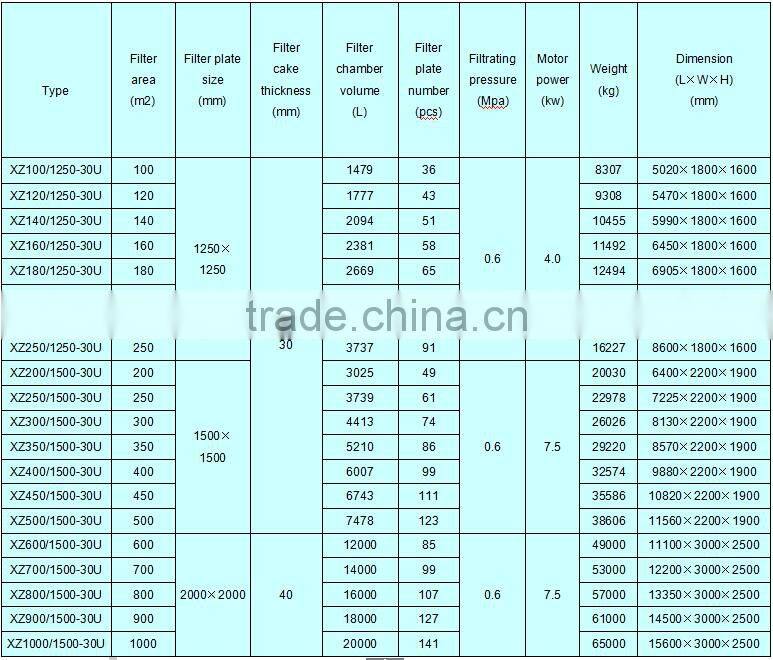

All types technical parameters.
Why choose us

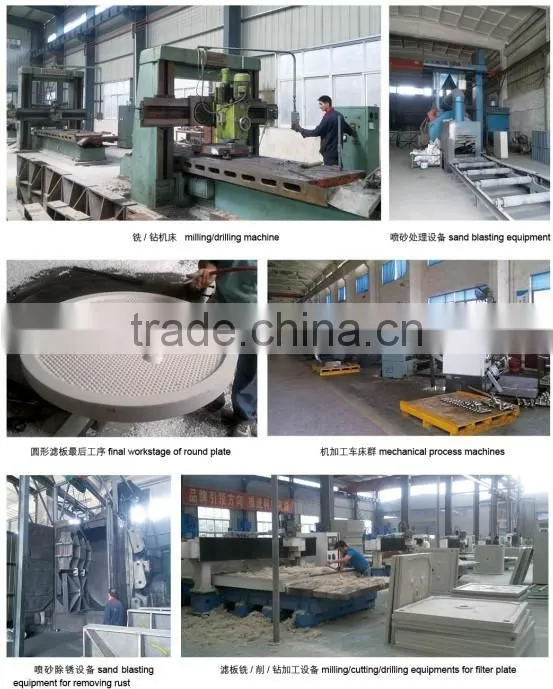

1. Manufacture experience,

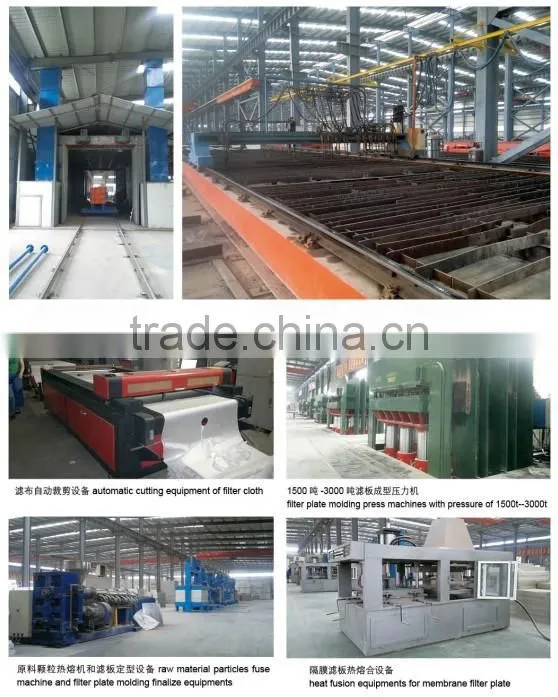

Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 7 days(if no stock).
2. Technology capacity,
We join and make the standard of filter press industry in China, All of our products have CE certificate, also they will be tested before delivery.
3. Our superiority,
We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.
4. Best after-sales,
Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.

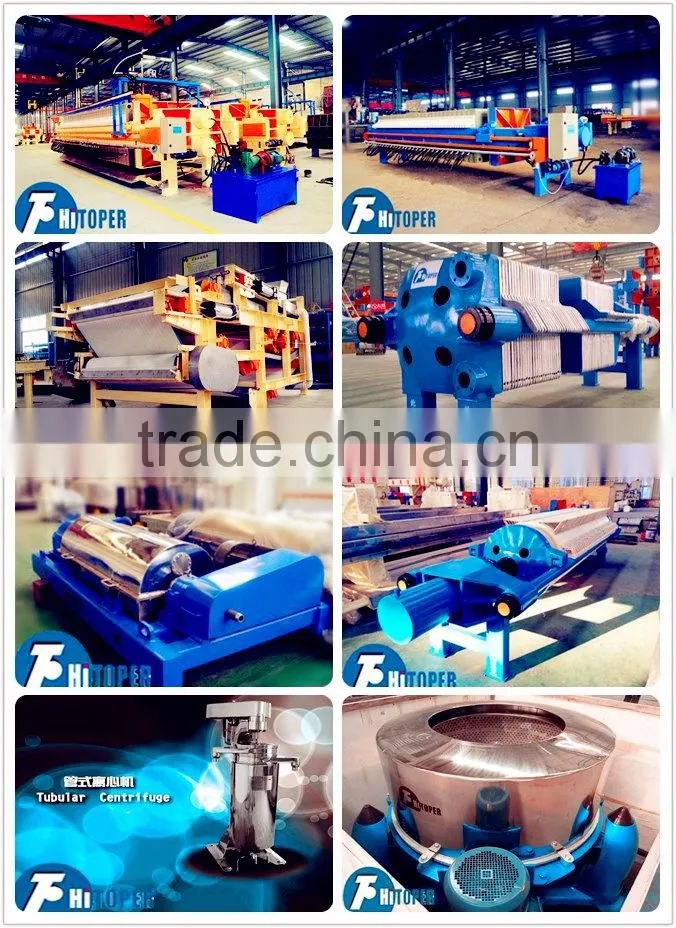

All of our products
1. Program-controlled automatic filter press
2. Membrane filter press
3. Hydraulic compress filter press
4. Mechanical compress filter press
5. Jack filter press
6. Cast iron plate and frame/chamber filter press
7. Stainless steel plate and frame filter press
8. Round plate filter press
9. Cotton cake filter press
10. Cardboard filter press
11. DY belt filter press
12. DYX high pressure belt filter press
13. DNY rotary drum thickning/dehydrating belt filter press
14. Triple-belt thickning and dehydrating filter press
15. SS type three-foot upper discharge centrifuge
16. SD type three-foot and filter bag hoist discharge centrifuge
17. PD type filter bag hoist discharge centrifuge
18. Centrifuge of up discharge, three foot, clean series SSB, SB
19. SX type manual top discharge centrifuge
20. PS type manual top discharge centrifuge
21. SGZ type automatic scraper bottom discharge centrifuge
22. PGZ type scarper bottom discharge centrifuge
23. LW series decanter centrifuge
24. Tubular centrifuge
25. Multi-layer stainless steel frame filter
26. Bag filter
27. Diatomite filter
28. Filter late
29. Filter cloth
30. Vacuum disc filter
Contact person, Joycee Chen
Company, Zhengzhou Toper Industrial Equipment Co., Ltd
Website,
Tel, 0086-371-8608-1678
Cel/whatsapp, 0086-150-9307-0185
Fax, 0086-371-6372-0313
Email, trade(at)
How to order smelt industry filter press
According to your material property, processing capacity, solid content, we will give you a best suitable type filter press, like XZ30/870-30U, xz100/1000-30U or others.
2. Together with specific requirments, select a right flow type(open or close), washable or non-washable filter plate, suitable voltage in your country.
3. The feeding pump is not included in the main machine, and if you need, let me know, we can help you to purchase it from our partner company.
smelt industry filter press for zinc smelting process
smelt industry filter press for zinc smelting process
smelt industry filter press for zinc smelting process
