Home > Products > Filter press series > Automatic marble filter press manufacturer
Automatic marble filter press manufacturer
- 15 Set / Sets per Month
- Qingdao Shanghai
- T/T L/C D/P D/A Credit Card
- Small Efficient vertical automatic laboratory belt filter press with advanced design
- China professional manufacturer fruit belt press filter
- belt extractor for press juice from fruit and vegetables
- Automatic fruit press belt equipment apple juicer machine
- Ion Exchange Nozzles for Intermediate Plate
- CHAMBER FILTER PRESS
Product Details
Condition: | New | Automatic Grade: | Automatic | Production Capacity: | 50m2 |
Place of Origin: | Henan, China | Brand Name: | TOPER | Model Number: | XZ50/1000-30U |
Voltage: | 380V/220V/400V | Power(W): | 2200 | Weight: | 4128kg |
Dimension(L*W*H): | 4040*1500*1400mm | Certification: | CE | Warranty: | 18 months after delirvery date. |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

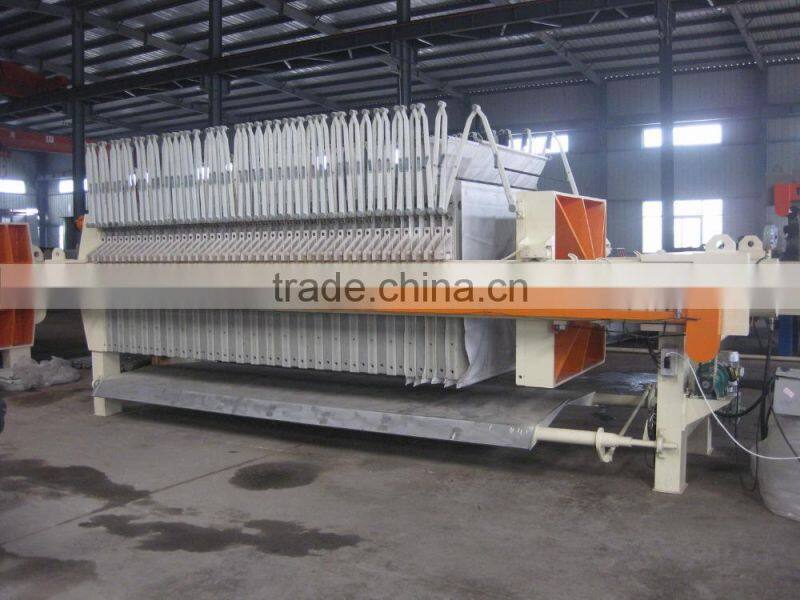

Automatic marble filter press manufacturer
With the common function of hydraulic closure & opening, add another new design---plate shifter device, when a cycle finish and cake formation. it will help to discharge the cake automatically.
Together with other available automatic device for your choosing.
1. Automatic cloth cleaning system
2. Automatic shaking device
3. Drip tray
4. Belt conveyor
This chamber filter press is the recessed chamber one with center feeding. It consists of beam, filter plate, filter cloths, hydraulic unit and electric control cabinet.
1. Beam, High quality carbon steel Q345B and processed with sand blasting
to remove rust and oxide skin, then painted by epoxy primer to get higher intensity and corrosion resistance.
2. Filter plate, Polypropylene(PP) with acid & alkali resistance, anticorrosion, innocuity, tasteless, light weight and high strength.
3. Filter cloths, High quality polypropylene acid and alkali proof or high quality polyester acid.
4. Hydraulic unit, China brand famous pumps and hydraulic valve; Carbon steel bending welding, sealing, air filtration external oil pump, cooling effect is good, maintenance is convenient; High and low pressure oil pipe for gb soft connection
5. Electric control cabinet, PLC control cabinet with Siemens brand or schneider brand Electrical components, Split type or can be fixed on the beam.
Operation process includes the following,
1. The hydraulic unit drive the head plate to press the middle plates and filter cloth between head plate and tail plate. And chambers form between every two plates.
2. The pump will deliver the mud into the chambers. Solids retainled in the chamber to be cake, and liquid flow out. Until the cakes is full. Then pump stops.
3. With about 10 minutes pressure holding. When you see there is no liquid flow it, the squeezing process finishs.
4. The plate shifter device will help to pull the plates one by one, and cake will discharge automatically.
5. The automatic shaking device will vibrate the cloth to be sure of discharge clean.
All types technical parameters.
All of our products
1. Program-controlled automatic filter press
2. Membrane filter press
3. Hydraulic compress filter press
4. Mechanical compress filter press
5. Jack filter press
6. Cast iron plate and frame/chamber filter press
7. Stainless steel plate and frame filter press
8. Round plate filter press
9. Cotton cake filter press
10. Cardboard filter press
11. DY belt filter press
12. DYX high pressure belt filter press
13. DNY rotary drum thickning/dehydrating belt filter press
14. Triple-belt thickning and dehydrating filter press
15. SS type three-foot upper discharge centrifuge
16. SD type three-foot and filter bag hoist discharge centrifuge
17. PD type filter bag hoist discharge centrifuge
18. Centrifuge of up discharge, three foot, clean series SSB, SB
19. SX type manual top discharge centrifuge
20. PS type manual top discharge centrifuge
21. SGZ type automatic scraper bottom discharge centrifuge
22. PGZ type scarper bottom discharge centrifuge
23. LW series decanter centrifuge
24. Tubular centrifuge
25. Multi-layer stainless steel frame filter
26. Bag filter
27. Diatomite filter
28. Filter late
29. Filter cloth
30. Vacuum disc filter
Automatic marble filter press manufacturer
Automatic marble filter press manufacturer
Automatic marble filter press manufacturer
