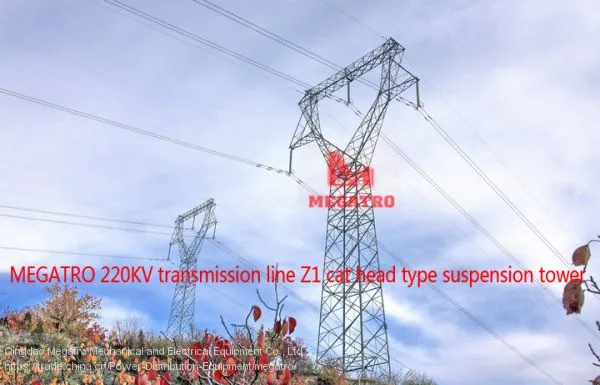

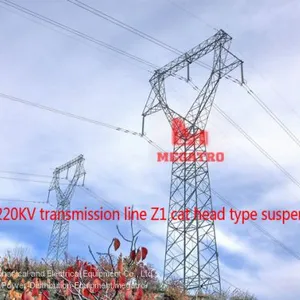

This photo refers to our 220KV transmission line Z1 cat head type suspension tower, Conductor lined in triangle shape, with double earth wire. This towers are widely use in earth 20th century in our china.
Some of their technical data as follow:
Application scope |
220kvtranssmission line |
||
tower name |
suspension tower |
tower type |
Z1 |
Design condition |
Nominal height(m) |
steel weight（kg） |
|
Conductor type |
2×LGJ-240 |
15 |
3000.2 |
Earth wire type |
GJ-50 |
18 |
3386.1 |
d speed（m/s） |
30 |
21 |
3732.5 |
Max.ice（mm） |
10 |
24 |
4235.1 |
Horizontal span（m） |
400 |
||
Vertical span(m) |
700 |
||
Angle |
|||
Remark: above technical data only references for our client, we can design every type for our overseas clients.
MEGATRO is a full service engineering company with a global reputation for delivering excellence and innovation in power transmission, transformation, distribution, and telecommunications systems. Our MEGATRO provide and design this 220KV transmission line Z1 cat head type suspension tower mainly for our Chinese and overseas client. Since 2004, MEGATRO focus mainly international market and had export many kind of transmission structures to overseas clients. MEGATRO has been manufacturing lattice transmission tower & tapered steel poles for lighting, traffic control, communication and utility applications. MEGATRO pioneered the development of transmission tower, telecom tower, substation, and other steel structure and was also at the forefront in the design of Transmission tower.
MEGATRO is fully equipped and qualified to carry out Design Engineering services which includes:
√ Overhead Transmission line steel tower & Telecom steel tower
Basic Design and Analysis
√ Shop Erection Drawings
√ As-Built Drawings
Besides, MEGATRO is one of the few manufactures who assemble a face of 220KV transmission line Z1cat head type suspension tower. This attention to quality may not be the cheapest process but it does insure every tower meets our high standards of quality. And it helps to reduce on-site construction cost due to mismatched assemblies. After fabrication all 220KV transmission line Z1 cat head type suspension towers are delivered to the galvanizing facility to be Hot DIP Galvanized. Towers are processed through the facility by Caustic Cleaning, Pickling, and then Fluxing. These strict procedures insure years of maintenance free towers. MEGATRO' 220KV transmission line Z1 cat head type suspension tower systems can accommodate a variety of cross-arm. MEGATRO also offers a wide variety of accessories and mounts.
Other information:
Availability size: Based on the customer's requirements.
Material: Chinese material or as per clients requirement
Steel grades
Tower legs: Chinese steel Q345B, which equivalent to ASTM A572 GR50
Other webs, bracing and not stress plate and angle steel: Chinese Q235B, which equivalent to ASTM A36
Plates: Chinese steel Q345B, which equivalent to ASTM A572 GR50
Bolts: Bolt quality shall be Chinese Class 6.8 and 8.8, as per our Chinese standard, or ISO 898 standard or ASTM A394 type 0,1,2,3 requirements
