Help CenterMEGATRO 220kV 2E10 SJ1 Double Circuit Angle Tension Tower
Related Products
-
MEGATRO 220kV 2E10 SJ2 Double Circuit Light Angle Tension TowerUS$ 920 - 960MOQ: 1 Square Meter -
MEGATRO 220KV Transmission Line 2240 ZM1 Cat Head Type Suspension TowerUS$ 920 - 960MOQ: 1 Ton
-
MEGATRO 220kv Transmission Line ZB4 Horizontal Type Suspension TowerUS$ 920 - 960MOQ: 1 Ton
-
MEGATRO 220KV Transmission Line SZ2 Double Circuit Drum Type Suspension TowerUS$ 920 - 960MOQ: 1 Ton
-
MEGATRO 220KV Transmission Line ZB1 Horizontal Type Suspension TowerUS$ 920 - 960MOQ: 1 Ton

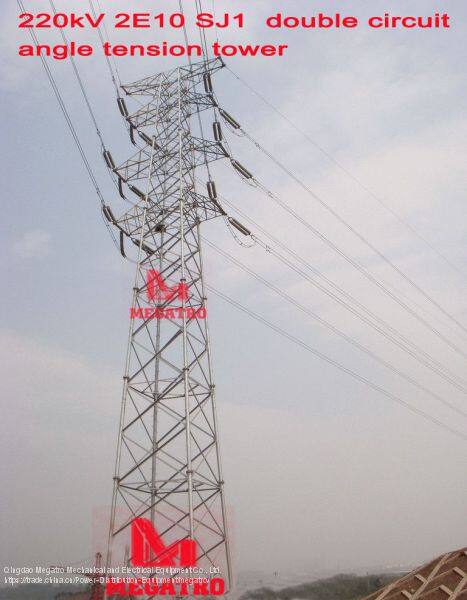

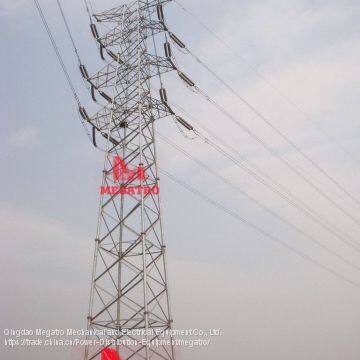

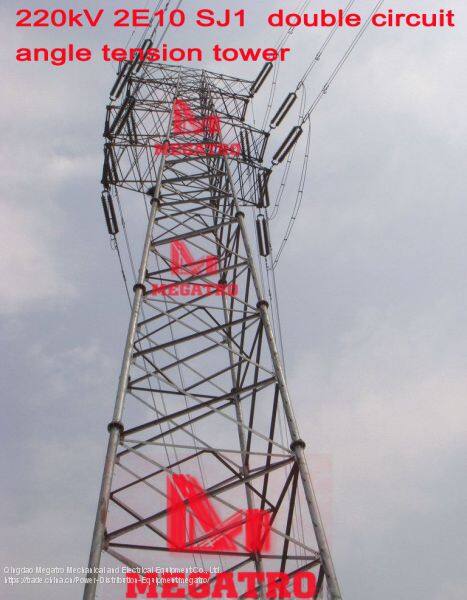

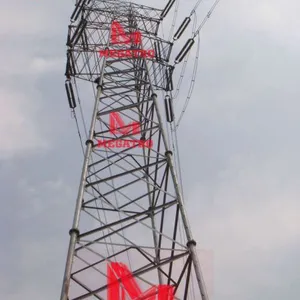

This photo refers to our 220kV 2E10 SJ1 double circuit angle tension tower, it is widely used in our Chinese market. Some of technical features of this tower as follow:
1 climate condition
Item |
Temperature (℃) |
Wind speed (m/s) |
Ice thickness (mm) |
Max. temperature |
40 |
0 |
0 |
Mini. temperature |
-20 |
0 |
0 |
Ice thickness |
-5 |
10 |
15 |
Basic wind speed |
-15 |
25 |
0 |
Installation condition |
-10 |
10 |
0 |
Annual temperature |
15 |
0 |
0 |
Lightning overvoltage |
15 |
10 |
0 |
Operation overvoltage |
15 |
15 |
0 |
Hot-line work |
15 |
10 |
0 |
2 tower design data
|
Tower type |
Nominal Height (mm) |
Nominal Height (mm)
|
Horizontal span (m) |
Vertical Span (m)
|
Angle º |
Insulator Type
|
Horizontal Span at angel condition |
2E10 SJ1 |
30 |
450 |
600 |
450 |
0～20 |
/ |
/ |
Conductor type: 2×LGL-400/50 |
OPGW: JLB-150 |
||||||
3 Tower estimated weight and foundation force
|
Tower Type |
Tower weight scope (kg) |
Foundation force scope (KN) |
|||||
Tmax |
Tx |
Ty |
Nmax |
Nx |
NY |
||
2E10 SJ1 |
17709～24767 |
989～1045 |
121～152 |
149～159 |
1307～1388 |
192～204 |
190～201 |
MEGATRO is fully equipped and qualified to carry out Design Engineering services which includes:
√ Overhead Transmission line steel tower & Telecom steel tower
Basic Design and Analysis
√ Shop Erection Drawings
√ As-Built Drawings
MEGATRO performs in-house design activities specializing in electrical overhead transmission &telecom tower steel works, which include wind and earthquake loading, static analysis, stress analysis by finite element methods and fatigue. Our Engineering Department is boasting of highly qualified engineering who are conversant with international codes and standards. The work is carried out with extensive use of CAE/CAD via a large of computer network. The computer hardware & drafting software are liked to the CNC workshop equipment for downloading of information thereby eliminating error and saving valuable production time.
Besides, MEGATRO is one of the few manufactures who assemble a face of 220kV 2E10 SJ1 double circuit angle tension tower. This attention to quality may not be the cheapest process but it does insure every tower meets our high standards of quality. And it helps to reduce on-site construction cost due to mismatched assemblies. After fabrication all 220kV 2E10 SJ1 double circuit angle tension tower are delivered to the galvanizing facility to be Hot DIP Galvanized. Towers are processed through the facility by Caustic Cleaning, Pickling, and then Fluxing. These strict procedures insure years of maintenance free towers. All finished surfaces shall be level and free of tears, burrs, clots and impurities.
MEGATRO' 220kV 2E10 SJ1 double circuit angle tension tower systems can accommodate a variety of cross-arm. MEGATRO also offers a wide variety of accessories and mounts.
Other information:
Availability size: Based on the customer's requirements.
Material: Chinese material or as per clients requirement
Steel grades
Tower legs: Chinese steel Q345B, which equivalent to ASTM A572 GR50
Other webs, bracing and not stress plate and angle steel: Chinese Q235B, which equivalent to ASTM A36
Plates: Chinese steel Q345B, which equivalent to ASTM A572 GR50
Bolts: Bolt quality shall be Chinese Class 6.8 and 8.8, as per our Chinese standard, or ISO 898 standard or ASTM A394 type 0,1,2,3 requirements
The anti-theft bolts shall be Huckbolt Fasteners or approved equivalent. The fasteners shall be manufactured from high tensile steel A242 or equivalent and hot-dip galvanized in accordance with ASTM specification A153 and A394.
