Help CenterMEGATRO 220kV 2E10 SZ1 Double Circuit Suspension Transmission Tower
Related Products
-
MEGATRO 220kV 2E10 SJ1 Double Circuit Angle Tension TowerUS$ 920 - 960MOQ: 1 Ton -
MEGATRO 220kV 2E10 SJ2 Double Circuit Light Angle Tension TowerUS$ 920 - 960MOQ: 1 Square Meter
-
MEGATRO 220KV Transmission Line 2240 ZM1 Cat Head Type Suspension TowerUS$ 920 - 960MOQ: 1 Ton
-
MEGATRO 220kv Transmission Line ZB4 Horizontal Type Suspension TowerUS$ 920 - 960MOQ: 1 Ton
-
MEGATRO 220KV Transmission Line SZ2 Double Circuit Drum Type Suspension TowerUS$ 920 - 960MOQ: 1 Ton

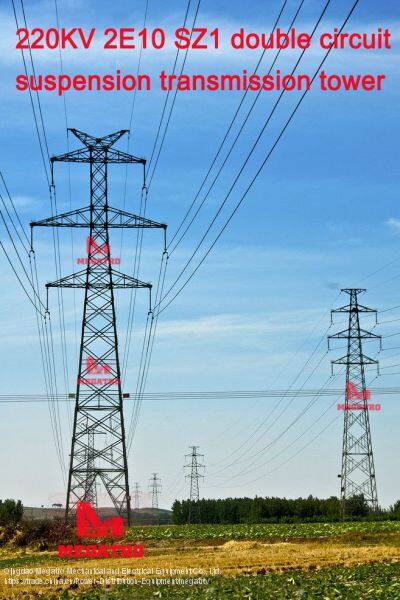

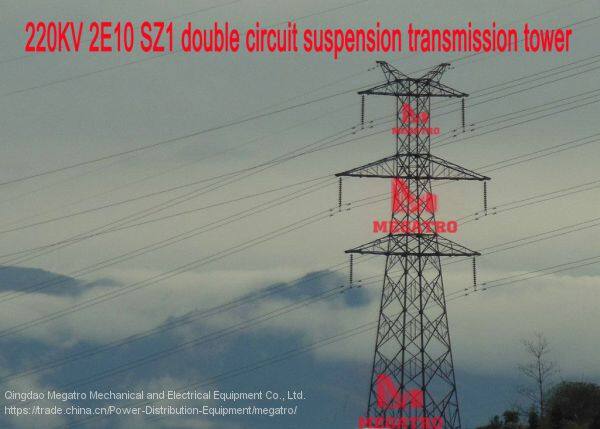

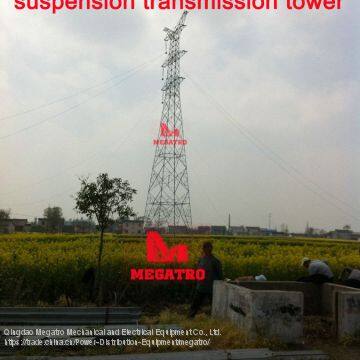

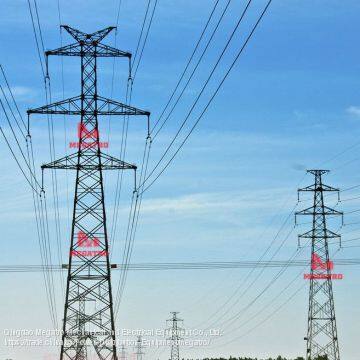

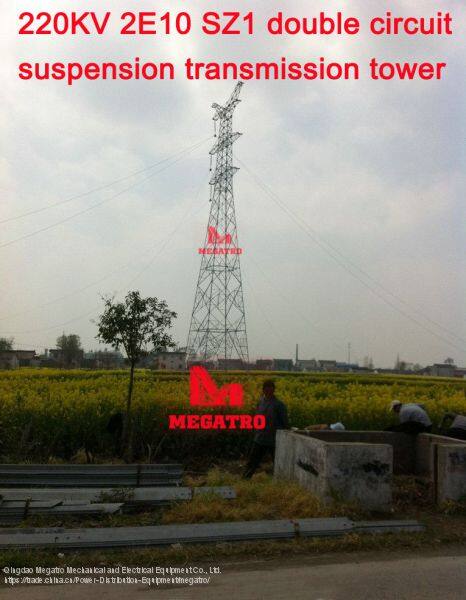

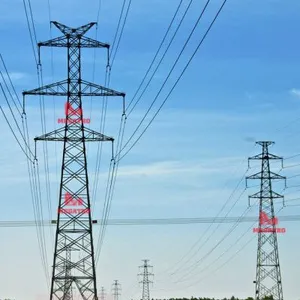

This photo refers to our 220kV 2E10 SZ1 double circuit suspension transmission tower, it is widely used in our Chinese market. Some of technical features of this tower as follow:
1 climate condition
Item |
Temperature (℃) |
Wind speed (m/s) |
Ice thickness (mm) |
Max. temperature |
40 |
0 |
0 |
Mini. temperature |
-20 |
0 |
0 |
Ice thickness |
-5 |
10 |
15 |
Basic wind speed |
-15 |
25 |
0 |
Installation condition |
-10 |
10 |
0 |
Annual temperature |
15 |
0 |
0 |
Lightning overvoltage |
15 |
10 |
0 |
Operation overvoltage |
15 |
15 |
0 |
Hot-line work |
15 |
10 |
0 |
2 tower design data
|
Tower type |
Nominal Height (mm) |
Nominal Height (mm)
|
Horizontal span (m) |
Vertical Span (m)
|
Angle º |
Insulator Type
|
Horizontal Span at angel condition |
2E10 SZ1 |
30 |
30 |
350 |
450 |
/ |
/ |
|
33 |
33 |
330 |
450 |
0～20 |
|||
Conductor type: 2×LGL-400/50 |
OPGW: JLB-150 |
||||||
3 Tower estimated weight and foundation force
|
Tower Type |
Tower weight scope (kg) |
Foundation force scope (KN) |
|||||
Tmax |
Tx |
Ty |
Nmax |
Nx |
NY |
||
2E10 SZ1 |
10887～14126 |
355～368 |
35～36 |
36～37.6 |
549～579 |
52～55 |
54～56 |
MEGATRO is a full service engineering company with a global reputation for delivering excellence and innovation in power transmission, transformation, distribution, and telecommunications systems. Our MEGATRO provide and design this type 220kV 2E10 SZ1 double circuit suspension transmission tower mainly for our Chinese and overseas client. Since 2004, MEGATRO focus mainly international market and had export many kind of transmission structures to overseas clients. MEGATRO has been manufacturing lattice transmission tower & tapered steel poles for lighting, traffic control, communication and utility applications. MEGATRO pioneered the development of transmission tower, telecom tower, substation, and other steel structure and was also at the forefront in the design of Transmission tower.
Besides, MEGATRO is one of the few manufactures who assemble a face of 220kV 2E10 SZ1 double circuit suspension transmission tower. This attention to quality may not be the cheapest process but it does insure every tower meets our high standards of quality. And it helps to reduce on-site construction cost due to mismatched assemblies. After fabrication all 220kV 2E10 SZ1 double circuit suspension transmission towers are delivered to the galvanizing facility to be Hot DIP Galvanized. Towers are processed through the facility by Caustic Cleaning, Pickling, and then Fluxing. These strict procedures insure years of maintenance free towers. All finished surfaces shall be level and free of tears, burrs, clots and impurities.
MEGATRO' 220kV 2E10 SZ1 double circuit suspension transmission tower systems can accommodate a variety of cross-arm. MEGATRO also offers a wide variety of accessories and mounts.
Other information:
Availability size: Based on the customer's requirements.
Material: Chinese material or as per clients requirement
Steel grades
Tower legs: Chinese steel Q345B, which equivalent to ASTM A572 GR50
Other webs, bracing and not stress plate and angle steel: Chinese Q235B, which equivalent to ASTM A36
Plates: Chinese steel Q345B, which equivalent to ASTM A572 GR50
Bolts: Bolt quality shall be Chinese Class 6.8 and 8.8, as per our Chinese standard, or ISO 898 standard or ASTM A394 type 0,1,2,3 requirements
The anti-theft bolts shall be Huckbolt Fasteners or approved equivalent. The fasteners shall be manufactured from high tensile steel A242 or equivalent and hot-dip galvanized in accordance with ASTM specification A153 and A394.
