Help CenterMEGATRO 220KV Double Circuit J30° Tension Tower Transmission Tower
Related Products
-
MEGATRO 220KV 2A3 ZB2 Single Circuit Suspension Transmission TowerUS$ 920 - 960MOQ: 1 Set -
MEGATRO 220kV 2E6 SJ1 Double Circuit Light Angle Tension Transmission TowerUS$ 920 - 960MOQ: 1 Ton
-
MEGATRO 220kV 2E10 SZ1 Double Circuit Suspension Transmission TowerUS$ 920 - 960MOQ: 1 Ton
-
MEGATRO 220kV 2E10 SJ1 Double Circuit Angle Tension TowerUS$ 920 - 960MOQ: 1 Ton
-
MEGATRO 220kV 2E10 SJ2 Double Circuit Light Angle Tension TowerUS$ 920 - 960MOQ: 1 Square Meter

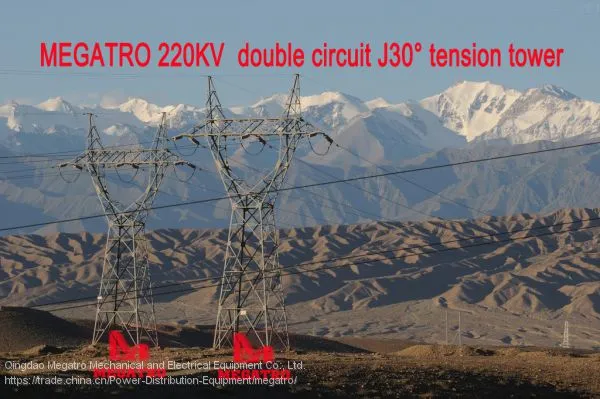

This photo refers to 220KVtransmission lineJ30°Horizontal type tension tower, Conductor lined in horizontal direction with double earth wire. It is tension type tower, some of technical features of this tower as follow:
Application scope |
220kvtransmission line |
||
Tower name |
tension tower |
Tower type |
J30° |
Design condition |
Nominal Height(m) |
Tower weight（kg） |
|
Conductor type |
2×LGJ-150 |
14.5 |
5739.22 |
Earth wire type |
GJ-50 |
17.5 |
6417.6 |
Max. Wind speed（m/s） |
30 |
20.5 |
7380.11 |
Max. Ice（mm） |
10 |
23.5 |
8305.05 |
Horizontal span（m） |
500 |
||
Vertical span(m) |
750 |
||
Angle |
30° |
||
Remark: above technical data only references for our client, we can design every type for our overseas clients.
MEGATRO is a full service engineering company with a global reputation for delivering excellence and innovation in power transmission, transformation, distribution, and telecommunications systems. Our MEGATRO provide and design this type 220KV J30° double circuit transmission tower mainly for our overseas client. Since 2004, MEGATRO focus mainly international market and had export many kind of transmission structures to overseas clients. MEGATRO has been manufacturing lattice transmission tower & tapered steel poles for lighting, traffic control, communication and utility applications. MEGATRO pioneered the development of transmission tower, telecom tower, substation, and other steel structure and was also at the forefront in the design of Transmission tower.
Over 10 years of experience and innovation in engineering, designing and building towers has evolved MEGATRO into its current form:
l Full Turn-Key provider including site acquisition, engineering services, manufacturing, field services-DAS, tech services, value added reseller and monitoring, maintenance and network ownership
l Specialize in developing supplying and building wireless and wired networks and in-building telecommunications systems, as well as energy infrastructure
l Single source from Design to System Integration
l Top quality, ISO 9001 registered
A complete selection of towers including self-support, lattice steel tower, monopoles and guyed towers, form custom-designed radar towers to broadcast towers and energy infrastructure. MEGATRO carries a variety of related products including fall protection, transmission lines, antennas, obstruction lights, and accessories, and other products if client need, MEGATRO also tailored product as per client condition.
MEGATRO mainly design all kinds of towers and posts for:
a. Telecoms
b. Power transmission
c. TV and Radio Broadcast
d. Roads and City Development
e. Wind energy solution
f. Steel structure and workshop
Our complete selection of towers includes:
a. Self-supporting
b. Monopoles
c. Guyed towers
d. Custom-designed radar towers
e. Broadcast towers
f. Power transmission
MEGATRO also designs and manufactures tower related products including:
a. Fall protection
b. Antenna brackets
c. Other accessories if needed by clients
Today, with over 10 years of experience and our commitment to excellence, MEGATRO remains an industry leader in the manufacture and design of steel tubular & angular & monopole structures for all Highway, Municipal, Custom, telecom, lighting and electric Utility applications. MEGATRO has a complete staff of professional engineering personnel trained in the PLS Pole program and three different manufacturing processes for producing steel towers, poles and other supports. We utilize the latest versions of PLS-CADD, PLS-POLE, TOWER, AutoCAD and other CAD software.
The structure shall be designed according to load combinations given as per IEC 61936-1 and as illustrated below:
Normal loads
1 Dead weight load
2 Tension load
3 Erection load
4 wind load
Exceptional loads
1 Switching forces
2 short-circuit forces
3 Loss of conductor tension
4 Earthquake forces
Send Inquiry to This Supplier
