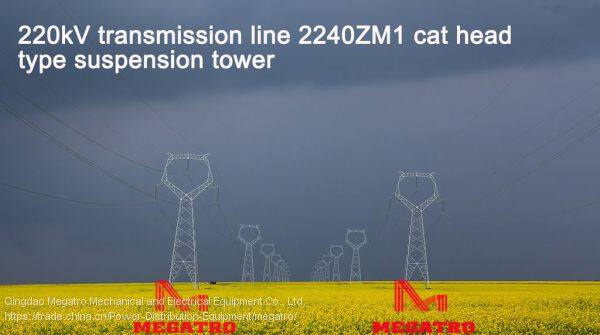

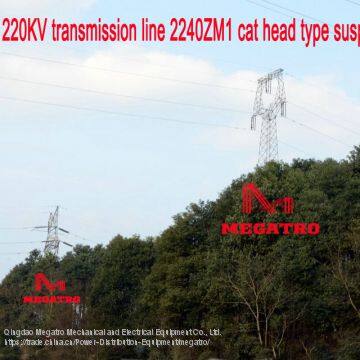

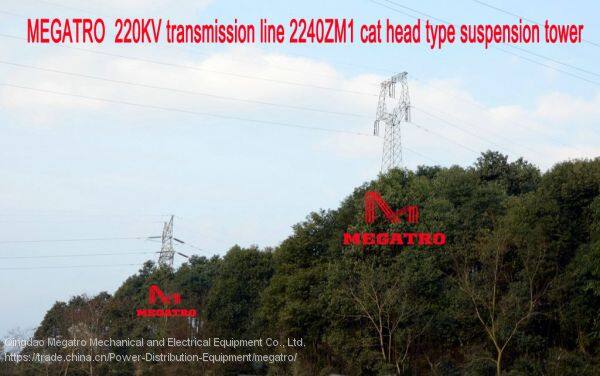

This photo refers to 220KV transmission line 2240 ZM1 cat head type suspension tower, Conductor lined in triangle shape with double earth wire, which is widely used tower type from 21st century. Some of their technical data as follow:
Application scope |
220kvtranssmission line |
||
tower name |
suspension tower |
tower type |
2240ZM1 |
Design condition |
Nominal height(m) |
steel weight（kg） |
|
Conductor type |
2×LGJ-300/40 |
15 |
2865 |
Earth wire type |
GJ-50 |
18 |
3205 |
d speed(m/s) |
30 |
21 |
3536 |
Max.ice(mm) |
10 |
24 |
3871 |
Horizontal span(m) |
380 |
27 |
4167 |
Vertical span(m) |
550 |
||
Angle |
|||
&
Design condition |
Nominal height(m) |
Horizontal span(m) |
Vertical span(m) |
steel weight(kg) |
|
Conductor type |
2×LGJ-240 |
15.0 |
400 |
600 |
2728.7 |
Earth wire type |
GJ-50 |
18.0 |
3042.5 |
||
Max. design wind speed(m/s) |
30 |
21.0 |
3400.1 |
||
Design ice thickness(mm) |
10 |
24.0 |
3702.9 |
||
27.0 |
380 |
550 |
4066.1 |
||
Remark: above technical data only references for our client, we can design every type for our overseas clients.
MEGATRO is a full service engineering company with a global reputation for delivering excellence and innovation in power transmission, transformation, distribution, and telecommunications systems. Our MEGATRO provide and design this type 220KV transmission line 2240 ZM1 cat head type suspension tower mainly for our overseas client. Since 2004, MEGATRO focus mainly international market and had export many kind of transmission structures to overseas clients. MEGATRO has been manufacturing lattice transmission tower & tapered steel poles for lighting, traffic control, communication and utility applications. MEGATRO pioneered the development of transmission tower, telecom tower, substation, and other steel structure and was also at the forefront in the design of Transmission tower.
