220KV 2D1 SJ1 double circuit transmission tower

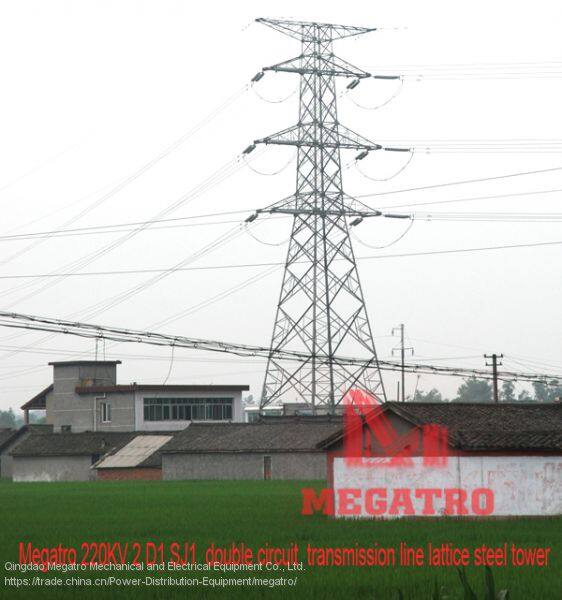

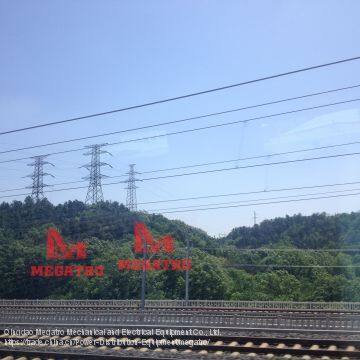

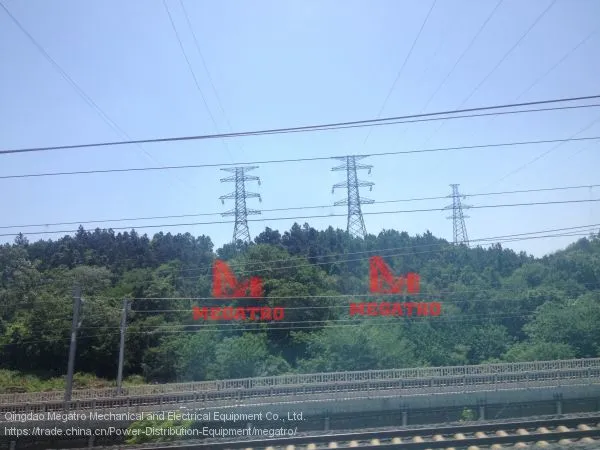

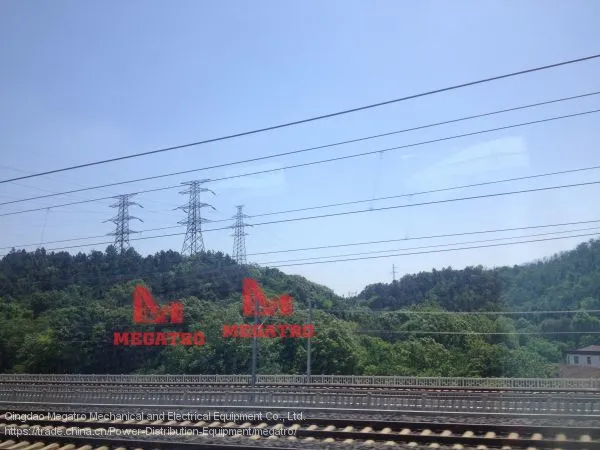

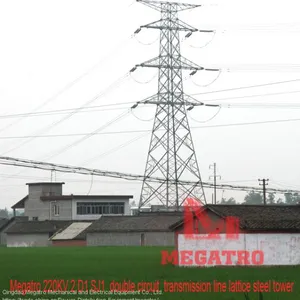

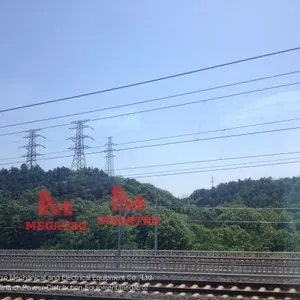

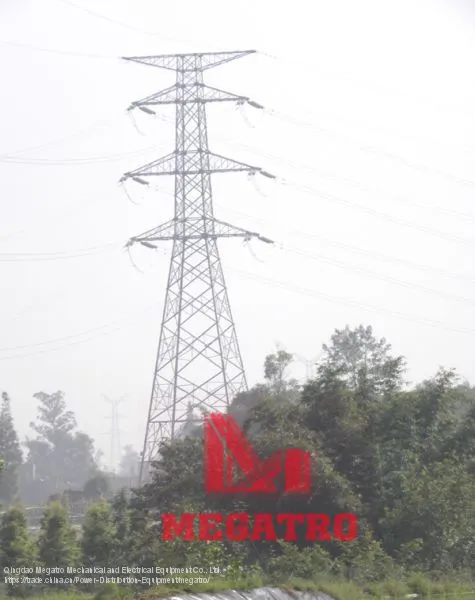

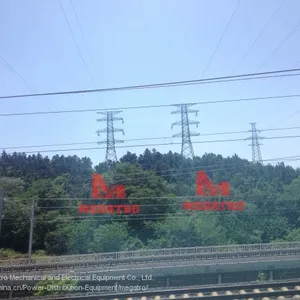

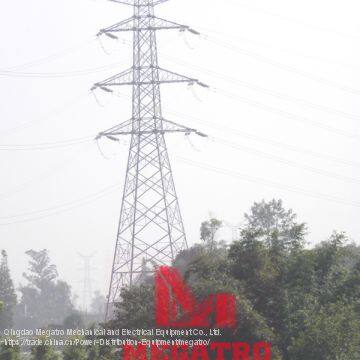

This photo refers to our 220KV 2D1 SJ1 double circuit transmission tower, it is widely used in our Chinese market. Some of technical features of this tower as follow:
1 climate condition
Item |
Temperature (℃) |
Wind speed (m/s) |
Ice thickness (mm) |
Max. temperature |
40 |
0 |
0 |
Mini. temperature |
-40 |
0 |
0 |
Ice thickness |
-5 |
10 |
10 |
Basic wind speed |
-5 |
27 |
0 |
Installation condition |
-15 |
10 |
0 |
Annual temperature |
5 |
0 |
0 |
Lightning overvoltage |
15 |
10 |
0 |
Operation overvoltage |
5 |
15 |
0 |
Hot-line work |
15 |
10 |
0 |
2 tower design data
|
Tower type |
Nominal Height scope (mm) |
Nominal Height (mm)
|
Horizontal span (m) |
Vertical Span (m)
|
Angle º |
Insulator Type
|
Horizontal Span at angel condition |
2D1 SJ1 |
18～27 |
27 |
450 |
650 |
0～20 |
/ |
/ |
Conductor type: 2×LGL-300/40 |
OPGW: JLB-150 |
||||||
3 Tower estimated weight and foundation force
|
Tower Type |
Tower weight scope (kg) |
Foundation force scope (KN) |
|||||
Tmax |
Tx |
Ty |
Nmax |
Nx |
NY |
||
2D1 SJ1 |
16673～19998 |
580～885 |
79～115
|
75～110
|
938～1036 |
122～134 |
118～130 |
4Here is the design strength of Chinese tower steel
Steel material |
Anti-push, bending and press strength (N/mm2) |
Anti-shear strength (N/mm2) |
|
Grade |
Thickness or diameter (mm) |
||
|
Q235 Steel |
≤16 |
215 |
125 |
>16～40 |
205 |
120 |
|
>40～60 |
200 |
115 |
|
>60～100 |
190 |
110 |
|
|
Q345 Steel |
≤16 |
310 |
180 |
>16～35 |
295 |
170 |
|
>35～50 |
265 |
155 |
|
>50～100 |
250 |
145 |
|
|
Q420 Steel |
≤16 |
380 |
220 |
>16～35 |
360 |
210 |
|
>35～50 |
340 |
195 |
|
>50～100 |
325 |
185 |
|
|
Q460 Steel |
≤16 |
415 |
240 |
>16～35 |
395 |
230 |
|
>35～50 |
380 |
220 |
|
>50～100 |
360 |
210 |
|
5 Here is the design strength of our Chinese tower bolts
Item |
Grade |
Anti-push strength (N/mm2) |
Anti-shear strength (N/mm2) |
|
Fastener for towers |
4.8 |
200 |
170 |
5.8 |
240 |
210 |
|
6.8 |
300 |
240 |
|
8.8 |
400 |
300 |
|
|
Anchor bolts |
Q235 |
160 |
/ |
Chinese 35 steel |
190 |
/ |
|
Chinese 45 steel |
215 |
/ |
Remark: above technical data only references for our client, we can design every type for our overseas clients.
