Ball mill is the key equipment for grinding after the crushing process, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other grind-able materials
Working principle:

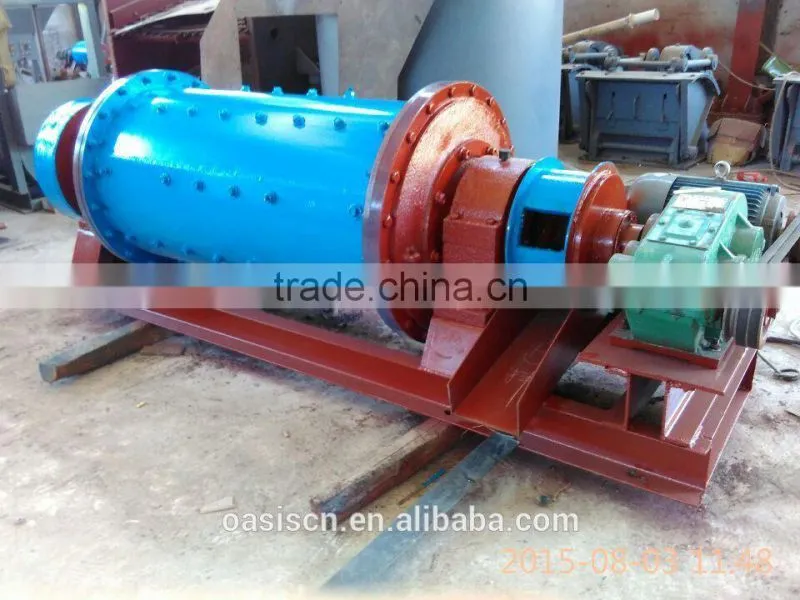

The ball mill is horizontal cylindrical rotation device, driven by brim gearwheel. There are two chambers and grid. Material goes into the first chamber through the feeding inlet. Inside the first chamber, there are stage liners and ripple liners as well as steel balls. The shell rotates so as to generate electricity, and this force brings ball to a certain height and then balls drop down by gravity, the impact is the grinding force to the material. After the primary grinding, materials go into the second chamber through segregate screen. In the second chamber, there are flat liners and steel ball, after the secondary grinding, material is discharged from the discharging. Then the whole grinding process end.
Structure:
The machine is composed by feeding part, discharging part, rotation part and driving part (reducer, small driving gear, electric motor and electric control). The quill shaft adopts cast steel part and the liner is detachable. The rotation big gearwheel is made by cast hobbling processing and the drum is equipped with wear-resistant liner, which has good wear-resistance. The machine is with stable and reliable working condition.
Moreover, according to different materials and discharging methods, there are dry ball mills and wet ball mills for choice.
Ball mill Technical Specifications
Model |
Shell rotation speed(r/min) |
Ball load(t) |
Feeding size(mm) |
Discharging size(mm) |
Capacity |
Motor power(kw) |
Weight(t) |
(t/h) | |||||||
Ø900*1800 |
36-38 |
1.5 |
<=20 |
0.075-0.89 |
0.65-2 |
18.5 |
4.6 |
Ø900*3000 |
36 |
2.7 |
<=20 |
0.075-0.89 |
1.1-3.5 |
22 |
5.6 |
Ø1200*2400 |
36 |
3 |
<=25 |
0.075-0.6 |
1.5-4.8 |
30 |
12 |
Ø1200*3000 |
36 |
3.5 |
<=25 |
0.074-0.4 |
1.6-5 |
37 |
12.8 |
Ø1200*4500 |
32.4 |
5 |
<=25 |
0.074-0.4 |
1.6-5.8 |
55 |
13.8 |
Ø1500*3000 |
29.7 |
7.5 |
<=25 |
0.074-0.4 |
2-5 |
75 |
15.6 |
Ø1500*4500 |
27 |
11 |
<=25 |
0.074-0.4 |
3-6 |
110 |
21 |
Ø1500*5700 |
28 |
12 |
<=25 |
0.074-0.4 |
3.5-6 |
130 |
24.7 |
Oasis Mineral Equipment company is Real Manufacturer and Factory Products
Our Services
♦ Pre-sale services: Passion &thoughtful
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
♦ Sale services: Oversea Technicians
Oversea technicians will be sent to the jobsite for guiding the installation training operators and finishing the check and accept together with you.
♦ After-sale services: Faithfulness
One year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
Company Information
—We have passed ISO9001:2008 and CE and SGS certification
—Our products have obtained the title of "China High Quality Well-Known Products".
—Our products are sold to more than 28 provinces/cities in China and are exported to Russia, Africa, Indonesia ,the Middle East, Philippines, Mongolia, Sudan, Kazakhstan, Brazil, Chile , Nigeria ,Canada and Australia.
—We have won high reputations from all of our clients for our machines and services.
1.Why buy from us?
1)Our factory covering an area of over 36,000 square meters
2)Our company having more than 36 sets of heavy processing equipment and with an annual output of more than 2600 sets of mining machinery
3)Our products are sold to more than 28 provinces/cities in China
4)Our products have exported to Russia,Africa,Indonesia,the Middle East,the Philippines, Mongolia, Sudan, Kazakhstan, Brazil, Chile, Canada , Nigeria, Australia and so on
5)Delivery fast -----Goods be sent out within 5 to 20 days based on order quantity
6)Best service-----Answering e-mails or solving questions timely. Delivery and update information on time. Trust, good quality and service are the basic of long-term business
2.What Information should customers give to us in order to let we provide you with efficient & suitable quotation and assistance.
1). What type is the mining? Is it rock stone? or it is sand?
2). If rock stone,What is the general particle size(mm) of the raw ore?
3). What is the handling capacity(tons per hour) you plan to work with?
4).What is the elements of the raw ore? How much percent % of each minerals?
3.Can we send the mineral samples to your company, let your company run the ore-dressing experiments test for us?
Yes, we can run the ore-dressing experiments for our customers. After the test, we will based on the results to give you the reasonable flowchart, suitable solution and equipments selection. etc.
4. How long is the warrenty of your equipments? Does your company supply the spare parts?
The warranty period of Oasis equipments is one year. And of course we will supply the spare parts for you for life-long time at lowest cost.
5. If i need the complete mineral processing line. is Oasis able to help us build it?
Yes, we can help you combine a complete mineral processing line. and give you related professional advices as long as you need.
There is a rich experience engineer team of us. we had already build many mining projects in China & Overseas. You can believe our quality and service.
