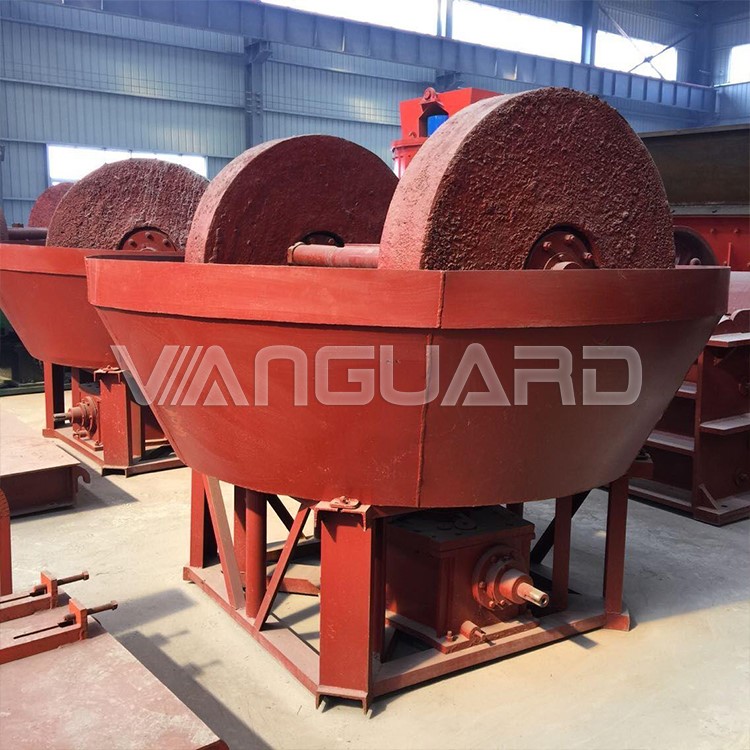

SGS CE ISO Verified Gold Recovery Wet Pan Grinding Machine Wet Pan Mill

Name: SGS CE ISO Verified Gold Recovery Wet Pan Grinding Machine Wet Pan Mill
Brand: VANGUARD
SKU: 172214113
Availability: InStock

Zhengzhou VANGUARD Machinery Technology Co., Ltd.

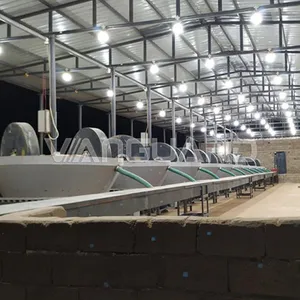

SGS CE ISO Verified Gold Recovery Wet Pan Grinding Machine Wet Pan Mill thumbnail-1

SGS CE ISO Verified Gold Recovery Wet Pan Grinding Machine Wet Pan Mill thumbnail-2

SGS CE ISO Verified Gold Recovery Wet Pan Grinding Machine Wet Pan Mill thumbnail-3

SGS CE ISO Verified Gold Recovery Wet Pan Grinding Machine Wet Pan Mill thumbnail-4

SGS CE ISO Verified Gold Recovery Wet Pan Grinding Machine Wet Pan Mill thumbnail-5

SGS CE ISO Verified Gold Recovery Wet Pan Grinding Machine Wet Pan Mill photo-1

SGS CE ISO Verified Gold Recovery Wet Pan Grinding Machine Wet Pan Mill photo-2

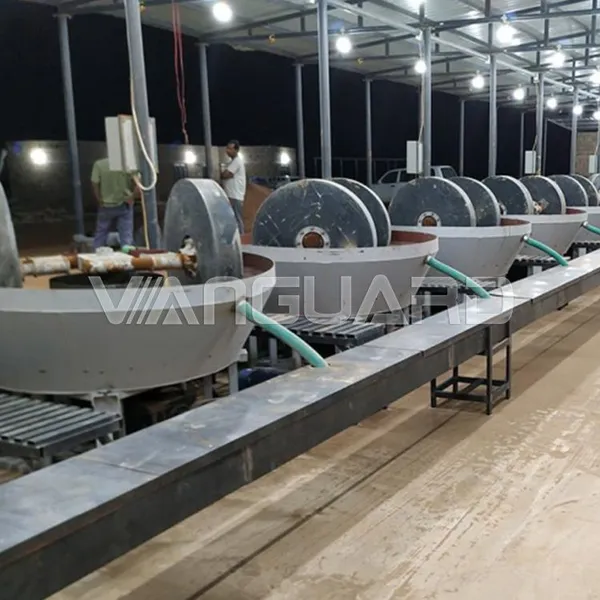

SGS CE ISO Verified Gold Recovery Wet Pan Grinding Machine Wet Pan Mill photo-3

SGS CE ISO Verified Gold Recovery Wet Pan Grinding Machine Wet Pan Mill photo-4

SGS CE ISO Verified Gold Recovery Wet Pan Grinding Machine Wet Pan Mill photo-5

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

VANGUARD

Place of Origin:

China

Type:

Other, WET PAN MILL

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name VANGUARD

Place of Origin China

Type Other, WET PAN MILL

Certification ISO9001-2008 international quality management system certification and European CE certification

After-sales Service Provided Engineers available to service machinery overseas

Condition New

Motor Type AC Motor

Product Description

The full name of wet pan mill is wet type pan mill.  According to the different operation methods, it is divided into gold mill, amalgamation mill, iron mill, and electric mill. While according to the different structure, it is divided into wheel mill, double roller mill, and three roller mill. Wet pan mills are developed on the basis of ancient stone mills through modern improvements. It is used for the grinding operations of various ferrous metals, non ferrous metals and non-metallic minerals, as well as the grinding, separation and processing operations of rare and precious metals gold and silver. It is a grinding equipment favored by the majority of small and medium sized concentrators.

Performance Characteristics:
 * High Quality Motor：The motor is the core component of the wet pan mill, and the service life of the wet pan mill determines by the high-quality motor.
* Strictly Control The Casting Quality
 * Good Quality Of Grinding Roller
 * Wear-resisting Improved by more than 130%.5. *  WZ roller bearing with Military quality first-class performance, easy maintenance, and high efficiency.

 WORKING PRINCIPLE

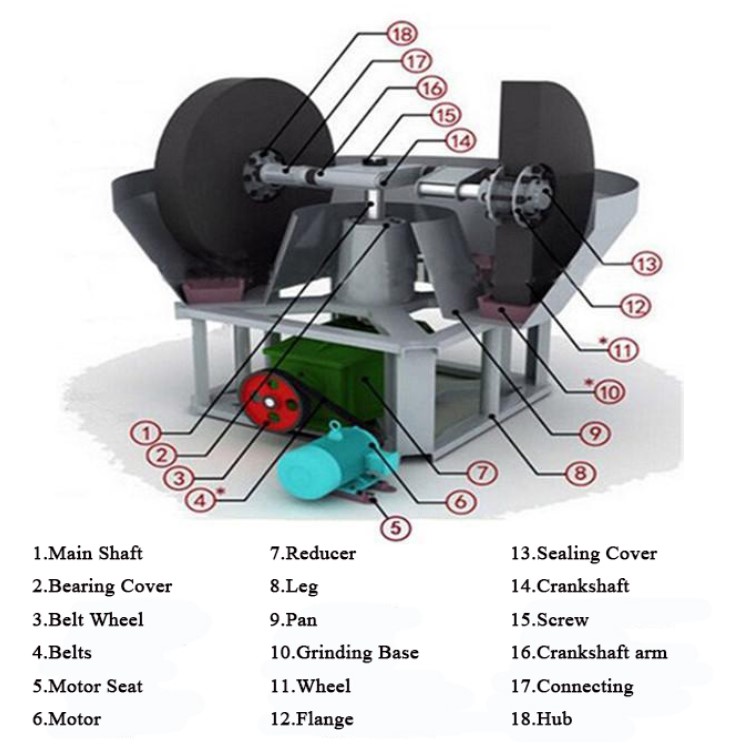

The gold wet pan mill is mainly composed of drive unit, frame, water basin, roller, grinding disc and other components. It adopts wheel-driven grinding work mode. first, the electric motor transmits the power to the reducer, and the torque is driven by the reducer through the large vertical shaft. It is transmitted to the upper horizontal axis, and then transmitted to the roller through the tie rods installed at both ends of the horizontal axis, so that the roller generates driving force and rotates counterclockwise along the horizontal axis of the horizontal axis; the roller can surround the wet mill when working. The large vertical shaft revolves and can rotate around the central axis of the grinding wheel, while the grinding disc is fixed. The added ore materials are subjected to the squeezing force from the weight of the grinding wheel in the mill. The huge friction force generated by the grinding wheel and the grinding plate during the revolution and rotation of the grinding wheel is thoroughly squeezed, kneaded, and ground.

PRODUCT PARAMETERS

Model	Specification	Feeding Size （cm）	Power （kw）	Spinning Speed （r∕min）	Weight（t）
1600A	1600×400×200×500±20	≤25	6-30	20-22	14.5
1500A	1500×350×200×460±20	≤25	6-22	20-22	13.3
1500B	1500×350×150×460±20	≤25	6-22	20-22	12.3
1500C	1500×300×150×420±20	≤25	6-22	20-22	11.3
1400A	1400×250×150×350±20	≤25	6-18.5	16-18	8.5
1400B	1400×250×150×350±20	≤25	6-18.5	21-23	8.5
1350A	1350×250×150×350±20	≤25	6-18.5	16-18	8
1350B	1350×250×150×350±20	≤25	6-18.5	21-23	8
1300A	1300×250×150×350±20	≤25	6-15	16-18	7.5
1300B	1300×250×150×350±20	≤25	4-15	21-23	7.5
1200A	1200×220×80×270±20	≤25	6-7.5	17-19	7.5
1200B	1200×200×80×250±20	≤25	6-7.5	23-25	7.5
1100A	1100×220×80×250±20	≤25	4-7.5	17-19	5
1100B	1100×220×80×250±20	≤25	4-7.5	23-25	5
1000	1000×200×80×250±20	≤25	4-7.5	13-15	4.5

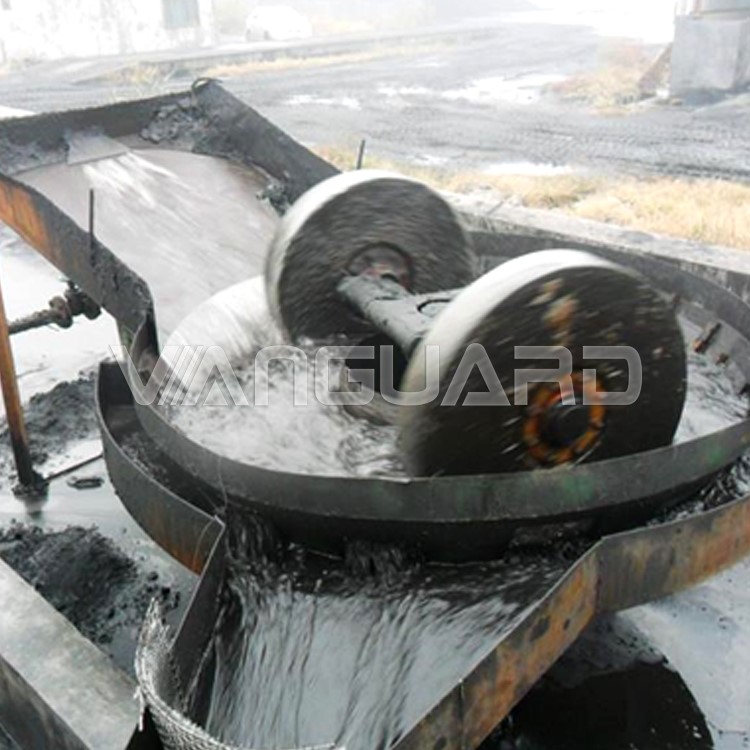

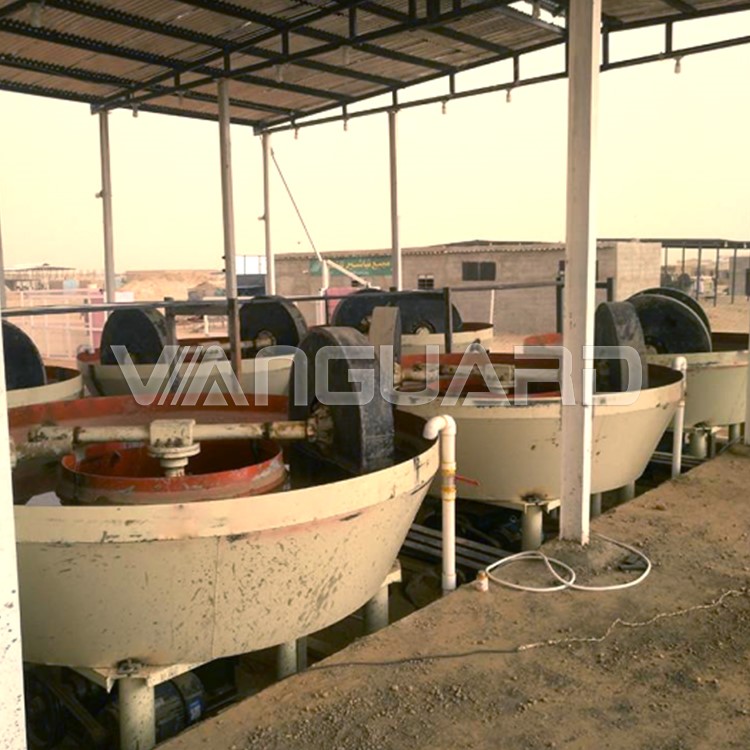

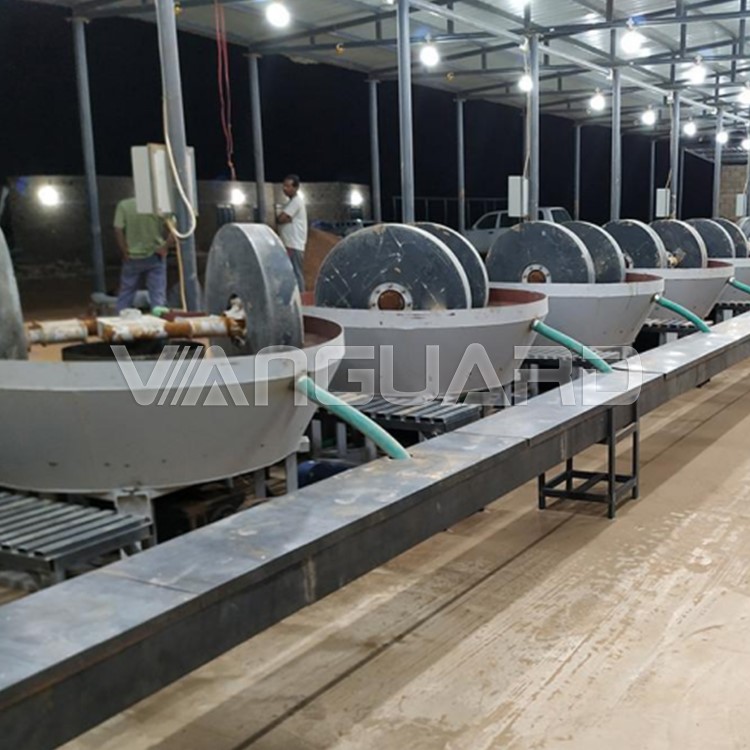

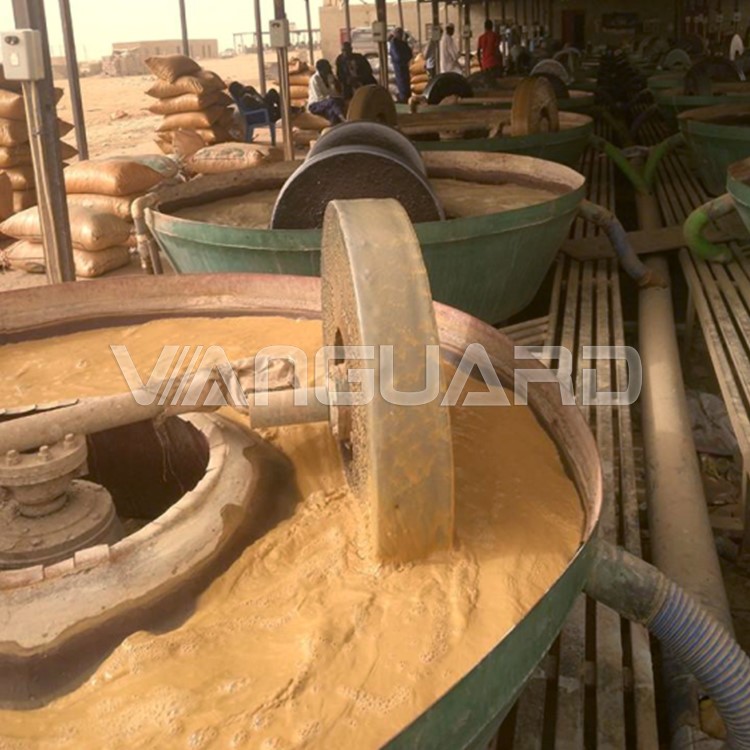

 CUSTOMER CASES

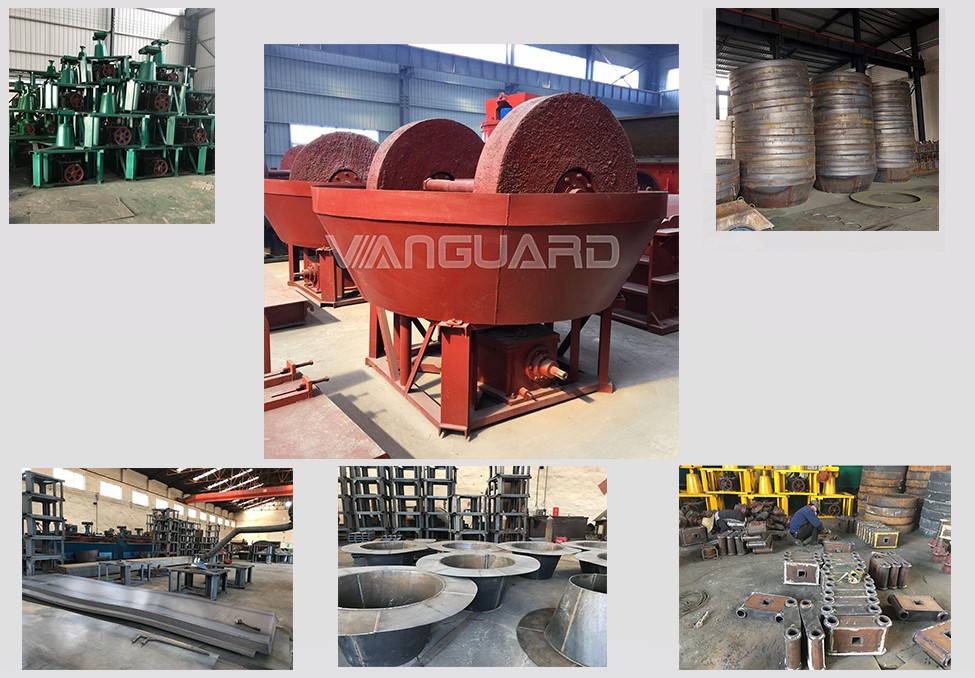

Packaging and Shipping

About VANGUARD

Zhengzhou Vanguard Machinery Technology Co., Ltd. is a professional high-end equipment manufacturing enterprise integrating R&D, production and sales. Its business scope covers sand and gravel aggregates, industrial grinding powder, mobile crushing plant, EPC general contract project and other professional high-end equipment manufacturing enterprises. Our factory covers 110000 square meters and our products are sold to more than 100 countries, being the popular equipment in global crushing industry.

Matching of production and support system allows customers to get the best service at the lowest cost.

Qualification

Our products have passed ISO9001-2008 international quality management system certification and European CE certification, and established a fully controlled quality management system. We are playing a leading role in quarry mining, sand making and industry powder producing fileds

Our Services

FAQ

Q1: what will you do if the machine is broken down? Does your company supply the spare parts?
A: The Products warranty is 12 months. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. And we will supply the spare parts with high quality for you at lowest cost.

Q2: How long is your delivery time？
A: The lead time is 10-30 days. Delivery time will vary depending on the type of the machine, availability and shipping method.

Q3：If I need the complete grinding plant can you help us to build it?
A: Yes, we can help you set up a complete production line and give you related professional advice. We had already build many
mining projects in China & Overseas.

Q4: How about the quality of your equipment?
A: Our products are manufactured strictly according to national and international standard, and we will take a test on every set of machine before delivery.
