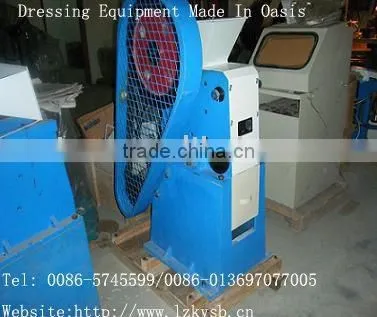

Laboratory Disk Crusher/Lab Disc pulverizer

Specifications

ShiCheng Oasis Mineral Equipment Manufacturing Co., LTD is produce Laboratory Disk Crusher/Lab Disc pulverizer0086-013697077005

ShiCheng Oasis Mineral Equipment Manufacturing Co., LTD(0086-797-5745599

Technical Parameter of laboratory sealed jaw crushers

Laboratory Sealed Jaw Crusher is applicable to medium and fine crushed materiails for the purposes of laboratory and production and primarily provided as environmental protection equipment for coal,electric power,mine,geology,chemical,metallurgy,building material and other industries.The product is produced by the only erterprise designated by the former minis of Geology and Mineral Resources,in compliance with the Industrial standards.

XPC Model Sealed Jaw Crusher is a new generation of crushing equipment with easy open of dynamic and static jaws,convenient clea-up and no blending of samples,It is capable of fine and medium crushing a variety of ores dan materials with compressive strength of 24kg/cm² and below. With great crushing ratio,unform partcle size and adjustment of ourput size.



Model	Capacity	Inlet size	Feed size	Output size	Rotating speed	Power	Weight
	Kg/h	mm	mm	mm	r/min	kw	kg
XPC60/100	≤400	100/60	50	1-3	650	1.5	100
XPC100/150	≤1800	150/100	90	5-25	380	2.2	190
XPC100/125	≤600	125/100	80	1-6	380	3	360
XPC150/125	≤200	150/125	100	6-38	375	3	417
XPC150/200	≤2000	200/150	120	5-30	370	5.5	450
XPC150/250	≤3000	150/250	120	10-40	370	5.5	500
SP60/100	≤720	100/60	48	0.8-15	300	2.2	330
SP100/100	≤800	100/100	80	0.8-15	350	3	440
PEX60/100	≤500	100/60	48	<16%	600	1.5	200
PEX100/100	≤960	100/100	80	<16%	600	2.2	300
PEX125/125	≤1600	125/125	110	1-15	600	3	360
PEF60/100	≤400	100/60	45	1-10	290	1.5	80
PEF60/100	≤800	100/100	80	0.8-1.5	440	3	400
