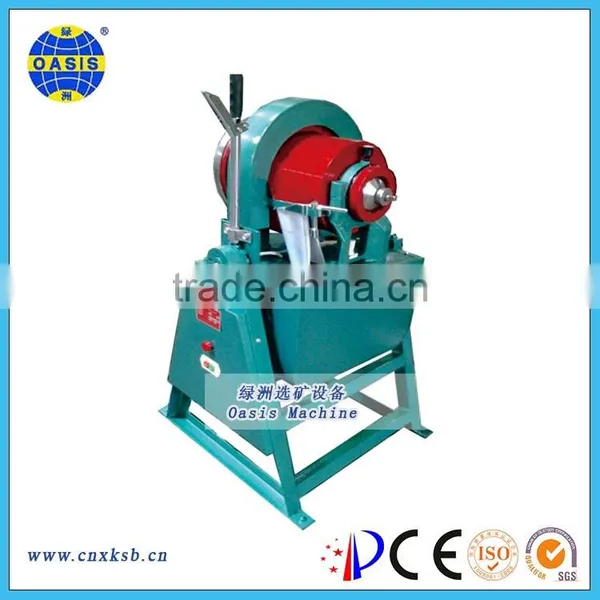

Rod Mill is applicable to lab.for wet fine grinding of ore and other materials.Steel ball may be used instead of steel rod in the ball mill.In rod grinding,fine product particle fractions are relatively uniform with rare occurrence of over grinding and high efficiency.In general,rod grinding is introduced for test on ore for separability and manual fine grinding of placer materials.The grinding equipment, a large amount of feeding, discharging, electric cylinder control, no manual, can also be replaced by steel balls to use
Lab Rod Mill Technical Specifications
Model | Unit | LZMB160/200 | LZMB200/240 | LZMB240/300 | ||||||||
Tank size | mm | 160/200 | 200/240 | 240/300 | ||||||||
Volume | L | 4.02 | 7.5 | 13.57 | ||||||||
Capacity | g | 300-800 | 500-1000 | 1000-5000 | ||||||||
Feeder size | mm | 2 | 2 | 3 | ||||||||
output size | mm | 0.074 | 0.074 | 0.074 | ||||||||
Drum speed | r/min | 120 | 110 | 96 | ||||||||
power | kw | 0.25 | 0.55 | 0.55 | ||||||||
material | Rod | Dia | Mm | 18 | 20 | 15 | 18 | 22 | 15 | 18 | 22 | |
L | Mm | 185 | 225 | 286 | ||||||||
Qty | pcs | 10 | 9 | 17 | 9 | 9 | 33 | 13 | 6 | |||
W | Kg | 3.55 | 4.09 | 4.9 | 4.2 | 4.9 | 12.7 | 7.48 | 5.0 | |||
Ball | Dia | mm | 20 | 25 | 30 | 20 | 25 | 30 | 20 | 25 | 30 | |
Quantity | pcs | 100 | 26 | 5 | 136 | 52 | 29 | 290 | 115 | 37 | ||
Weight | kg | 3.3 | 1.7 | 0.56 | 4.4 | 3.3 | 3.7 | 9.57 | 7.37 | 4.1 | ||
Dimension size | mm | 1052/530/1160 | 1052/615/1160 | 1052/615/1160 | ||||||||
Weight | kg | 91 | 150 | 162 | ||||||||
Our Services
♦ Pre-sale services: Passion &thoughtful
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
♦ Sale services: Oversea Technicians
Oversea technicians will be sent to the jobsite for guiding the installation training operators and finishing the check and accept together with you.
♦ After-sale services: Faithfulness
One year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
Company Information
—We have passed ISO9001:2008 and CE and SGS certification
—Our products have obtained the title of "China High Quality Well-Known Products".
—Our products are sold to more than 28 provinces/cities in China and are exported to Russia, Africa, Indonesia ,the Middle East, Philippines, Mongolia, Sudan, Kazakhstan, Brazil, Chile , Nigeria ,Canada and Australia.
—We have won high reputations from all of our clients for our machines and services.
1.Why buy from us?
1)Our factory covering an area of over 36,000 square meters
2)Our company having more than 36 sets of heavy processing equipment and with an annual output of more than 2600 sets of mining machinery
3)Our products are sold to more than 28 provinces/cities in China
4)Our products have exported to Russia,Africa,Indonesia,the Middle East,the Philippines, Mongolia, Sudan, Kazakhstan, Brazil, Chile, Canada , Nigeria, Australia and so on
5)Delivery fast -----Goods be sent out within 5 to 20 days based on order quantity
6)Best service-----Answering e-mails or solving questions timely. Delivery and update information on time. Trust, good quality and service are the basic of long-term business
2.What Information should customers give to us in order to let we provide you with efficient & suitable quotation and assistance.
1). What type is the mining? Is it rock stone? or it is sand?
2). If rock stone,What is the general particle size(mm) of the raw ore?
3). What is the handling capacity(tons per hour) you plan to work with?
4).What is the elements of the raw ore? How much percent % of each minerals?
3.Can we send the mineral samples to your company, let your company run the ore-dressing experiments test for us?
Yes, we can run the ore-dressing experiments for our customers. After the test, we will based on the results to give you the reasonable flowchart, suitable solution and equipments selection. etc.
4. How long is the warrenty of your equipments? Does your company supply the spare parts?
The warranty period of Oasis equipments is one year. And of course we will supply the spare parts for you for life-long time at lowest cost.
5. If i need the complete mineral processing line. is Oasis able to help us build it?
