Home > Packaging & Printing > Machinery for Packaging Supplies > Blister Packaging Machine > DPP260K-ZH220-High Efficiency Blister Packing Line
US$ 25,000 - 30,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, Machinery & Hardware
Automatic Grade:
Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
DALIAN PORT CHINA
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DPP260K-ZH120 Multifunctional Pharmaceutical Packing MachineUS$ 25,000 - 30,000MOQ: 1 Unit -
High Quality Blister Packing LineUS$ 25,000 - 30,000MOQ: 1 Unit
-
DPP260L-ZH220 Multifunctional Pharmaceutical Packing MachineUS$ 25,000 - 30,000MOQ: 1 Unit
-
DPP260H3-ZH220 Multifunctional Pharmaceutical Packing MachineUS$ 25,000 - 30,000MOQ: 1 Unit
-
DPH190-ZH180 Multifunctional Blister Packing LineUS$ 25,000 - 30,000MOQ: 1 Unit
Condition
New
Application
Other, Machinery & Hardware
Automatic Grade
Automatic
Driven Type
Electric
Power
9.6KW- 3KW
Place of Origin
Liaoning, China
Brand Name
MACH
Model Number
DPP260K-ZH220
Dimension(L*W*H)
4200x740x1700mm -4500x1620x1600mm
Weight
1800kg-1200kg
Certification
CE and cGMP
Warranty
ONE YEAR
After-sales Service Provided
Engineers available to service machinery overseas

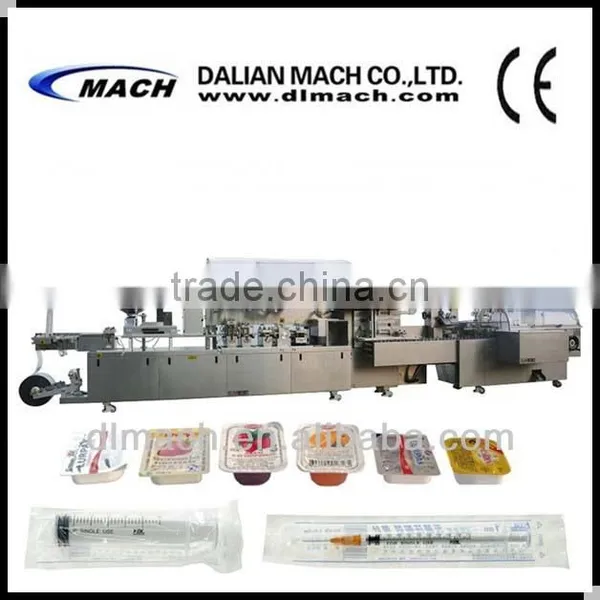

DPP260K-ZH220-High Efficiency Blister Packing Line
Product Description
| Specification |
This Blister-Cartoner Line is combined with the DPP260K Blister Machine and ZH220 Cartoner. ·Processes all common solid dose products and all types of forming material. ·The machine can achieve 180 minutes of uninterrupted production thanks to Blister module with forming material reels of up to 600mm in diameter and waste material trimming cutter (optional). ·Capable of all standard types of closure systems for cartons from tuck-in to hot-melt. ·The heart of a Blister Line is the connection between the Blister Machine and Cartoner. In this line, the connection phase is truly innovative thanks to two vacuum arms and the blister counting magazine that adopt precise servo technology. These accurately control blister transfer, faulty blister rejection, positioning, and feeding, etc., to assure the stability of high running speed. ·This line can be connected to subsequent machines, e.g., Stretch-Banding Machine (Overwrapper) and Case Packer to form a whole production line. DPP260K Blister Machine's Main Technical Parameters: Max. Speed: alu/pvc:70punches/min. alu/alu:40punches/min. Machine Power: 9.6kw Machine Dimension: 4200x740x1700mm Machine Weight: 1800kg ZH220 Cartoner's Main Technical Parameters: Max. Output: 220 cartons/min. Range of Carton Size: Max.: 160x110x60mm Min.:55x30x15mm Machine Power: 3kw Machine Dimension: 4500x1620x1600mm Machine Weight: 1200kg |
| Photo |

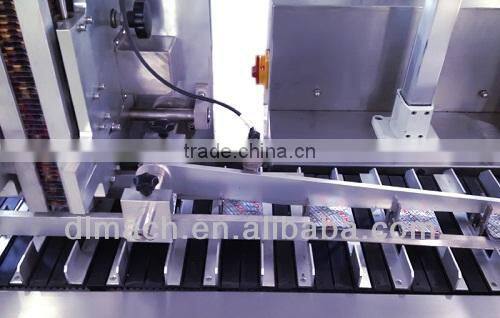

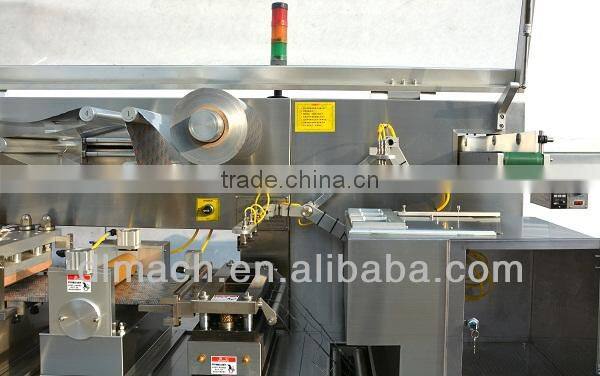

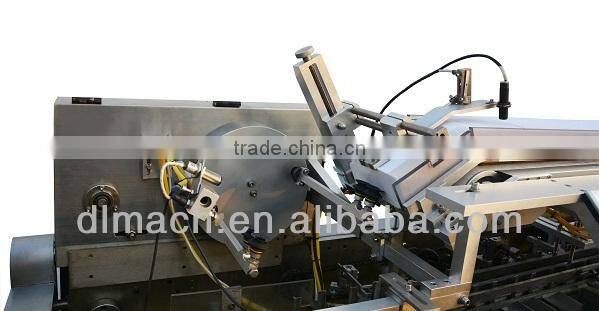

1. The blister cards are punched upward in Blister Machine, collected by the vacuum arm and transferred to the cartoner.
2. Inside the magazine, the blister cards are counted when they free fall via the servo-motor, and are then held in position by the transfer belt. 3. The blister cards are inserted into cartons. 4. Rotary carton feeder |
Our Services
| Guarantee & After-selling Service |
We will supply enough spare parts and accessories with our machine when shipment. Within one year after receiving our machine, If there are any damaged parts or accessoreis, We will supply them to you by air-mail FREE OF CHARGE.
|
| Certificate |
CE and cGMP |
Company Information
| About our Company |
We are a professional pharmaceutical machinery manufacturer integrating development, production, marketing and service.
We are dedicated and driven to provide the best equipment to meet our customers' requirements that come from pharmaceutical, food, cosmetic and chemical industries. Up to now we have delivered outstanding, innovative and high quality equipment to customers in more than 80 countries around the globe. |
....
