Condition
New
Application
Other, Machinery & Hardware
Automatic Grade
Automatic
Driven Type
Electric
Power
9.6KW- 3KW
Place of Origin
Liaoning, China
Brand Name
MACH
Model Number
DPP260K-ZH120
Dimension(L*W*H)
4200x740x1700mm -3500x1500x1800mm
Weight
1800kg-1200kg
Certification
CE and cGMP
Warranty
ONE YEAR
After-sales Service Provided
Engineers available to service machinery overseas

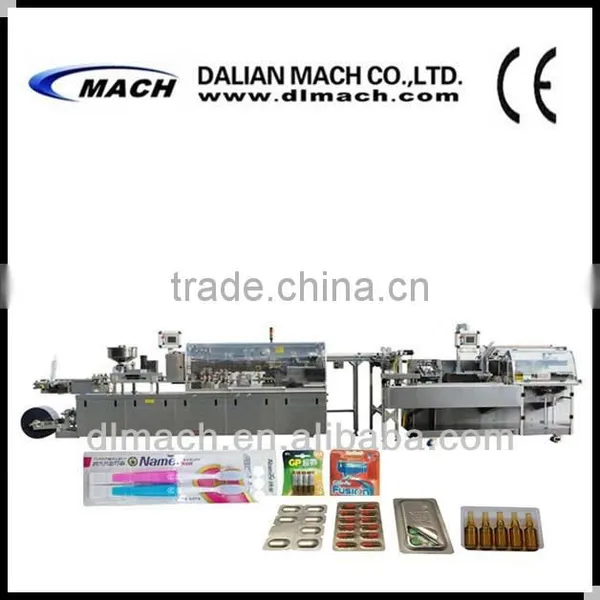

DPP260K-ZH120 Multifunctional pharmaceutical packing machine
Product Description
| Specification |
This Blister-Cartoner Line is combined with the DPP260K Blister Machine and ZH220 Cartoner. ·Processes all common solid dose products and all types of forming material. ·The machine can achieve 180 minutes of uninterrupted production thanks to Blister module with forming material reels of up to 600mm in diameter and waste material trimming cutter (optional). ·Capable of all standard types of closure systems for cartons from tuck-in to hot-melt. ·The heart of a Blister Line is the connection between the Blister Machine and Cartoner. In this line, the connection phase is truly innovative thanks to two vacuum arms and the blister counting magazine that adopt precise servo technology. These accurately control blister transfer, faulty blister rejection, positioning, and feeding, etc., to assure the stability of high running speed. ·This line can be connected to subsequent machines, e.g., Stretch-Banding Machine (Overwrapper) and Case Packer to form a whole production line. DPP260K Blister Machine's Main Technical Parameters: Max. Speed: alu/pvc:70punches/min. alu/alu:40punches/min. Machine Power: 9.6kw Machine Dimension: 4200x740x1700mm Machine Weight: 1800kg ZH120 Cartoner's Main Technical Parameters: Max. Output: 120 cartons/min. Range of Carton Size: Max.: 150x115x50mm Min.:55x30x15mm Machine Power: 1.8kw Machine Dimension: 3500x1500x1800mm Machine Weight: 1200kg |
| Photo |
1. The blister cards are punched upward in Blister Machine, collected by the vacuum arm and transferred to the cartoner.
2. Inside the magazine, the blister cards are counted when they free fall via the servo-motor, and are then held in position by the transfer belt. 3. The blister cards are inserted into cartons. 4. Rotary carton feeder |
Our Services
| Guarantee & After-selling Service |
We will supply enough spare parts and accessories with our machine when shipment. Within one year after receiving our machine, If there are any damaged parts or accessoreis, We will supply them to you by air-mail FREE OF CHARGE.
|
| Certificate |
CE and cGMP |
