Home > Industrial Equipment & Components > Filtration Equipment & Parts > Filter Press > Hot Selling Hydraulic Filter Press Equipment for Sale
US$ 2,000 - 8,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Automatic Grade:
Automatic
Production Capacity:
50 ton
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or other
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Full Automatic High Effective Foam Concrete Block Cutting MachineUS$ 1,000 - 30,000MOQ: 1 Set -
New Generation Hot Sale Automatic Foam Concrete MachineUS$ 1,000 - 30,000MOQ: 1 Set
-
Hot Sell Hydraulic Power Pack With Cooler for SaleUS$ 1,580 - 5,890MOQ: 1 Set
-
Compact Structure With Cooler Hydraulic Power Pack StationUS$ 1,580 - 4,890MOQ: 1 Set
-
Electric Hydraulic Power Pack With High QualityUS$ 1,580 - 5,890MOQ: 1 Set
Condition
New
Automatic Grade
Automatic
Production Capacity
50 ton
Place of Origin
Henan, China
Brand Name
GAODETEC
Model Number
XA/MJ Series
Voltage
as per your request
Power(W)
3.0kw
Weight
1725kg
Dimension(L*W*H)
2700*1050*1050mm
Certification
ISO9001&CE
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Hot Selling hydraulic filter press equipment for sale
Product Description
- Filter press consist of frame ,filter plate ,pressing system(manual , mechanical or hydraulic ) and electric control cabinet .
- Frame consists of base , push plate and girder and supports the pressing device and filter plates .
- Filter plates are installed on girder between tail plate and push plate , with filter cloth sandwiched in them.
- In operation , the pressing device(cylinder piston rod or screw ) drives the push plate to press the filter plates and filter cloth between push plate and tail plate . Filter chambers are formed between pressed filter plates and material get in to The filter chambers through the feeding port in tail plate . Solid particles are trapped in filter chambers form into cakes , while liquid is discharged out of the tail Plate . In similar manner ,to drying the press cakes , compressed air can be introduced through the washing port .
- Plate and frame type filter-Press is the same as recessed plate filter press in structure ,except the filtering part that consists of one plate , one frame and filter cloth ,with filter chamber between plate and frame.
- Liquid stream of filter press can be divided into exeternal stream and internal stream . exeternal streamrefers to that the filtrate is discharged directly from outlet port of filter plate; internal stream refers to that the filtrate from various filter plate is collected before being discharged out of the filtrate port .
Design feature of hydraulic filter press :
Mechanical compression compression filter driven by the motor reducer , the drive components to promote the pressure plate clamping plate . Compression screw and nut design a reliable self-locking helix angle ,when pressed to ensure the reliablility andstablility . Comprehensive protection with automatic motor control . Can be achieved on the motor overheating and overload protection .
Technical data
Technical data of hydraulic filter press (chamber type):
Plate and Frame Type:
Flange dimension :

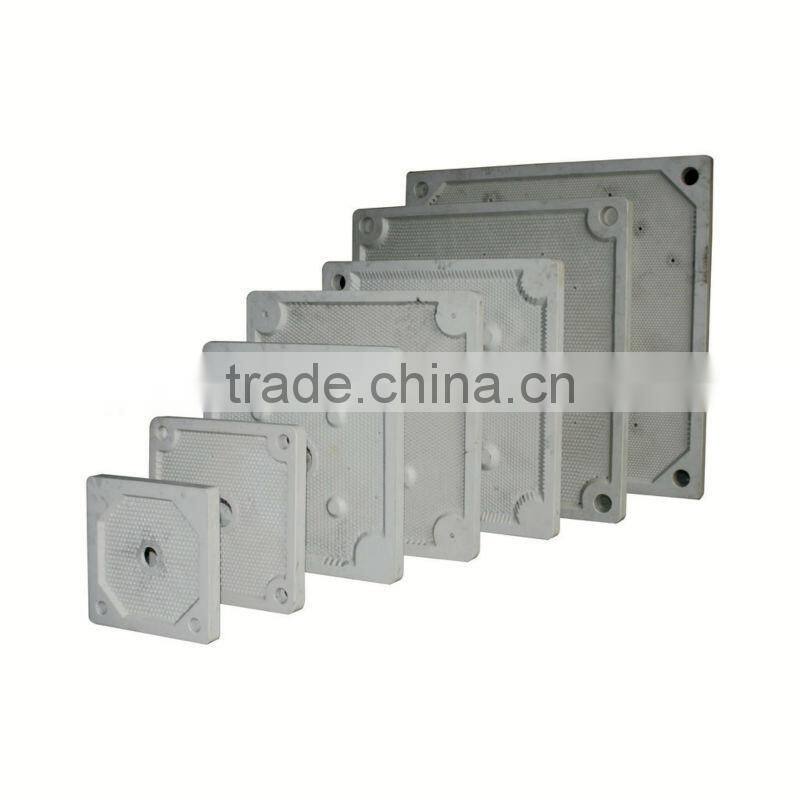

Filter Plate :
Hydraulic Filter Press Detection :
Company Information

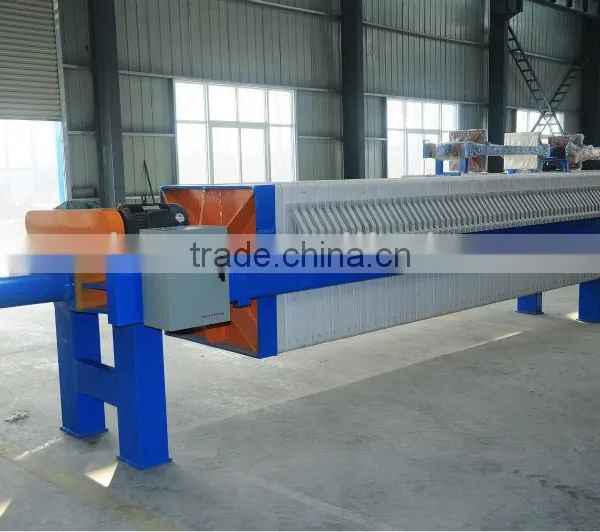

Our Factory:
Worksite of hydraulic Filter Press :
Certifications
Certification :
Send Inquiry to This Supplier
* Email
Want the best price?
Post an RFQ now!
Business Type
Manufacturer, Trading Company
Year Established
2012
Factory Size
1,000-3,000 square meters
Total Employees
51 - 100 People
