2016 Hot sale Small Stainless Steel Frame Multi-layer Filter Press

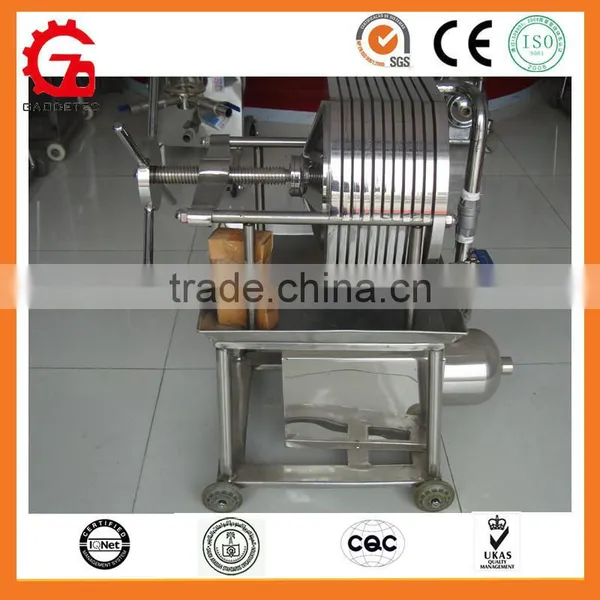

Small stainless steel frame multi-layer filter press
Design Feature of plate and frame filter press machine:
S.S. Multilayer Filter is for fine filtering. It's surface is polished, has seals, and normally used together with S.S. feeding pump, so it's normally uesd for following industries: laboratory, fine chemicals, medicine, food, chemical etc...
Working principle:
The suspended solution is pumped into filter chamber, under the feeding pressure, the filtrate passs through the filter media and then discharged from the outlet. The solid will becomes to filter cakes. Thus realize solid liquid separation.
Plate and frame filter press machine Features:
The filter is made of S.S.304 or S.S.316L, which are features of corrosion-resistant and long life-span. The filter plates use screw thread structure. It can change filtering media(if uses filter membrane, it can even remove the bacteria.) according to yout material and your technical requirements ( primary filtration/medial fine filtration/fine filtration). The layers can be added or decreased to your actual capacity. The filter works under pressure with leakage and the filtrate is very clean. It can be used as multievel filtering devices: the first level uses rough filtering media; the second level can use fine medias, so that it can improve the filtering effect and efficiency. All seals are made of silica rubber, which can endure high temperature and no toxicity, no leakage. The automatic flow returning device also can be customized according to your needs. When pump stops, open the return valve, all sediment will be discharged automatically ( beside have the air discharging function), and at the same time, it will be backwashed by clean water via the return pipe. It's very easy for operation.
convenient .
Techincal data of plate and frame filter press machine:
Note :
1. Large flow can be customized ;
2. Pressure pump to be explosion-proof motor and Grundfos pumps up the difference .
filter press structure :
Our Factory of small filter press :
Our certification of small filter press:
In order to supply a more suitable filter press for you, please make us clear about your requirements:
1.what is raw material?
2.what is solid content? (%)
3.what is your local voltage?(customized for you requirement)
4.what is output (t/h)
