Home > Industrial Equipment & Components > Filtration Equipment & Parts > Filter Press > XMY Series Hydraulic Chamber Filter Press With Factory Price
US$ 5,000 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Automatic Grade:
Automatic
Production Capacity:
100ton
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or other
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Small Multi-layer Stainless Steel Olive Oil Filter MachineUS$ 100 - 10,000MOQ: 1 Set -
Food Grade Stainless Steel Wine Filter Press for SaleUS$ 100 - 10,000MOQ: 1 Set
-
Automatic Filtering Chamber Filter Press MachineUS$ 5,000 - 50,000MOQ: 1 Set
-
High Pressure Full Automatic Membrane Chamber Filter PressUS$ 5,000 - 15,000MOQ: 1 Set
-
High Quality Mechanical Filter Press Price For SaleUS$ 2,000 - 8,000MOQ: 1 Set
Condition
New
Automatic Grade
Automatic
Production Capacity
100ton
Place of Origin
Henan, China
Brand Name
GAODETEC
Model Number
1000/1250/1500 Series Oil Filter Press
Voltage
380V or as your request
Power(W)
4.0Kw
Weight
4072kg
Dimension(L*W*H)
4040*1500*1400mm
Certification
ISO9001&CE
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas

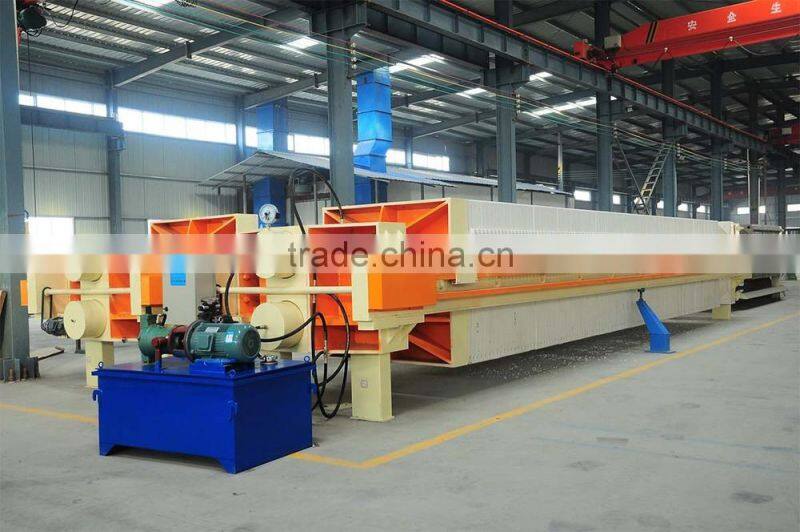

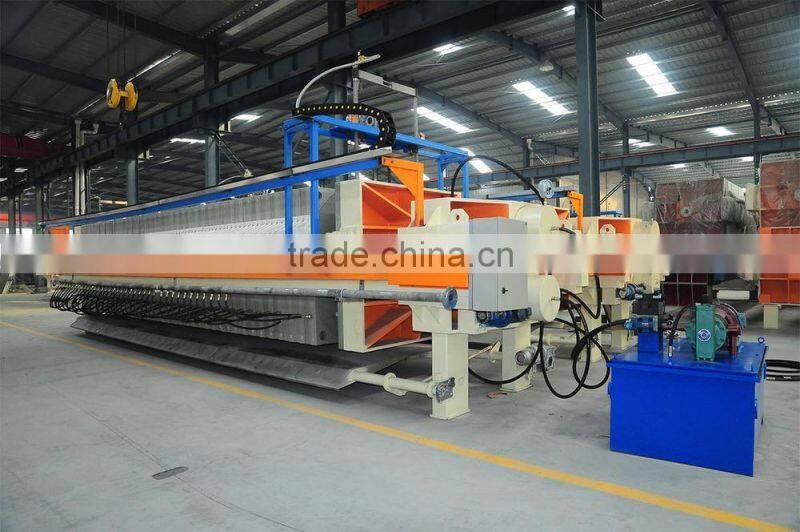

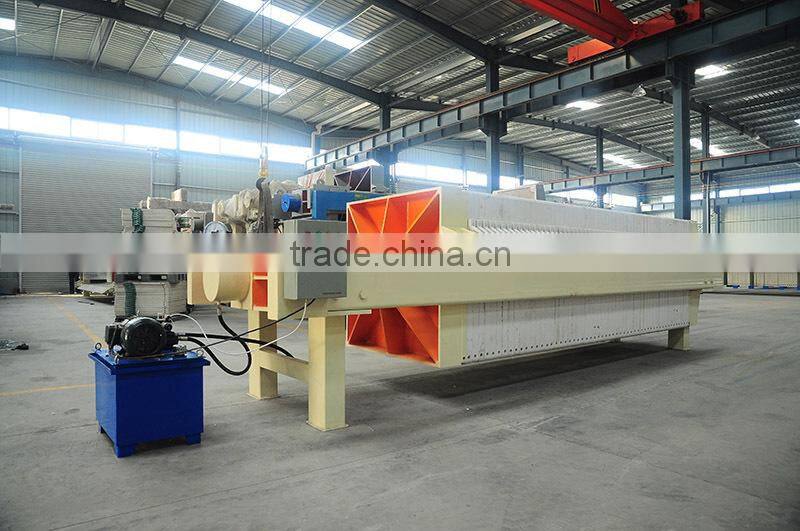

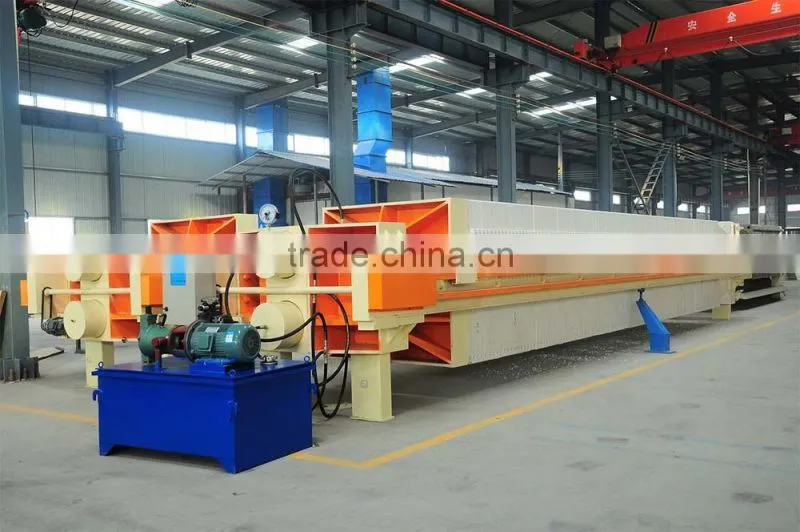

XMY series Hydraulic Chamber Filter Press With Factory Price
Product Description
Structure and operating principle:
- Filter press consist of frame, filter plate, pressing system(manual, mechanical or hydraulic ) and electric control cabinet .
- Frame consists of base, push plate and girder and supports the pressing device and filter plates.
- Filter plates are installed on girder between tail plate and push plate, with filter cloth sandwiched in them.
- In operation, the pressing device(cylinder piston rod or screw ) drives the push plate to press the filter plates and filter cloth between push plate and tail plate. Filter chambers are formed between pressed filter plates and material get in to The filter chambers through the feeding port in tail plate . Solid particles are trapped in filter chambers form into cakes, while liquid is discharged out of the tail Plate. In similar manner ,to drying the press cakes, compressed air can be introduced through the washing port.
- Plate and frame type filter-Press is the same as recessed plate filter press in structure, except the filtering part that consists of one plate , one frame and filter cloth ,with filter chamber between plate and frame.
- Liquid stream of filter press can be divided into exeternal stream and internal stream . exeternal streamrefers to that the filtrate is discharged directly from outlet port of filter plate; internal stream refers to that the filtrate from various filter plate is collected before being discharged out of the filtrate port .
Hydraulic filter press use electrical-contact pressure meter to realize pressure keeping, so it has features of easy operation, stable performance, but the cakes are discharged manually. So it is suitable for the filter press which filtering area is not too big and don't have too many plates.
Technical data of hydraulic filter press by auto dwelling:
Industrial art specification of hydraulic filter press:
Hydraulic station used in hydraulic chamber filter press:
Electric control box in hydraulic filter press:
Filter plate in hydraulic filter press:
Filter plate pressure detection:
