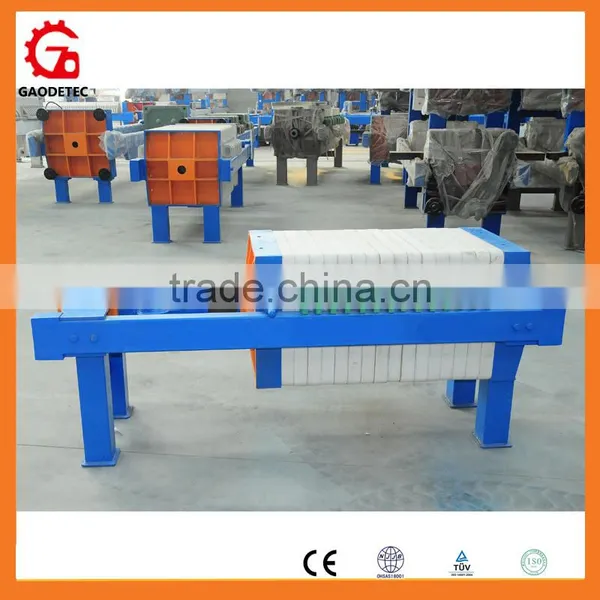

Small Manual Jack Filter Press by Chinese Manufactures

Manufactures manual jack filter press

Structure and operating principle

1. Filter press consist of frame ,filter plate ,pressing system(manual , mechanical or hydraulic ) and electric control cabinet .
2. Frame consists of base , push plate and girder and supports the pressing device and filter plates .
3. Filter plates are installed on girder between tail plate and push plate , with filter cloth sandwiched in them.
4. In operation , the pressing device(cylinder piston rod or screw ) drives the push plate to press the filter plates and filter cloth between push plate and tail plate . Filter chambers are formed between pressed filter plates and material get in to The filter chambers through the feeding port in tail plate . Solid particles are trapped in filter chambers form into cakes , while liquid is discharged out of the tail Plate . In similar manner ,to drying the press cakes , compressed air can be introduced through the washing port .
5. Plate and frame type filter-Press is the same as recessed plate filter press in structure ,except the filtering part that consists of one plate , one frame and filter cloth ,with filter chamber between plate and frame.
6. Liquid stream of filter press can be divided into exeternal stream and internal stream . exeternal streamrefers to that the filtrate is discharged directly from outlet port of filter plate; internal stream refers to that the filtrate from various filter plate is collected before being discharged out of the filtrate port

Design feature of manucal jack filter press     :

Screw iack press adopts screw jack s closing system. It has feature of simple structure, easy operation, no power consumption, cost saving. It is generally used in filter press with 1-40m2 filter area.

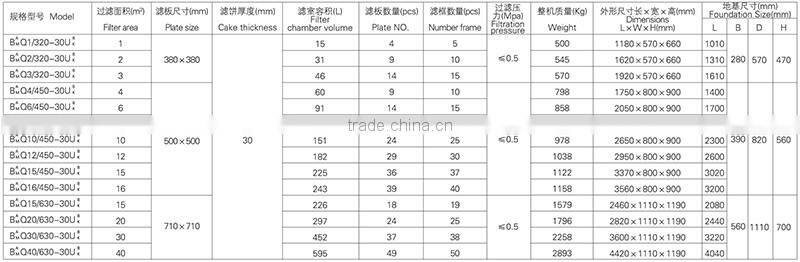

Technical data (chamber type):

Flange dimension of manual jack filter press  :

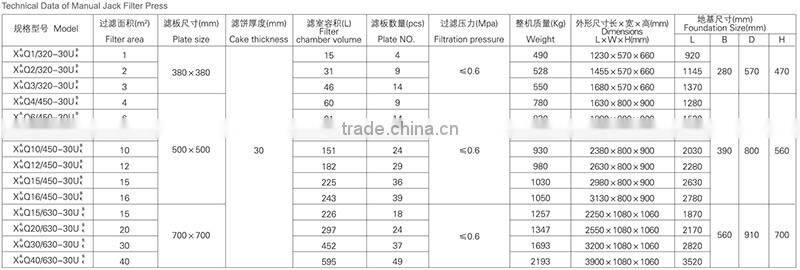

Technical data (Plate and Frame type)

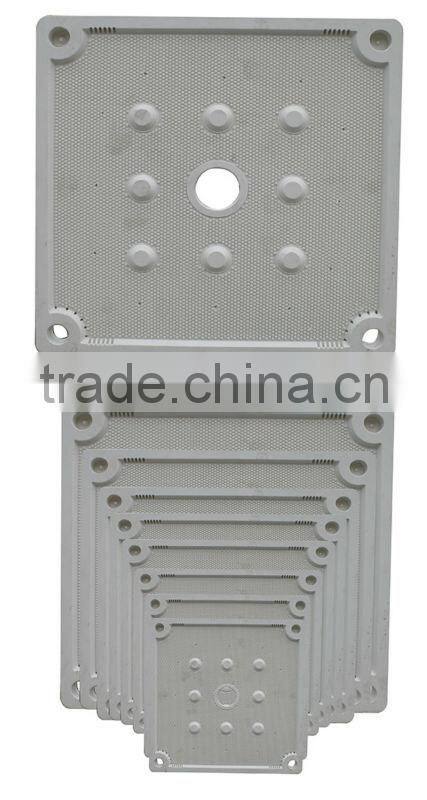

Filter plate of manual jack filter press  :

filter plate pressure detection :

manual filter filter press industrial art specification:

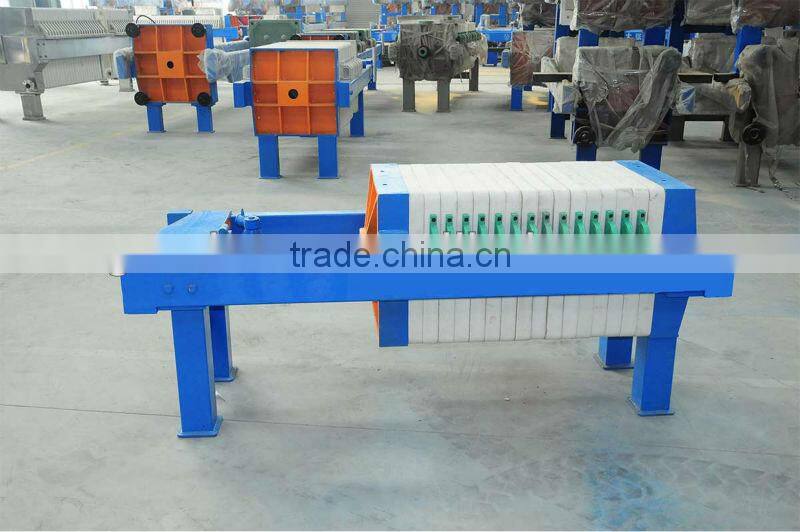

Our workshop of manual jack filter press:

Worksite of manual jack filter press :

Our Cetification of manual jack filter press :

In order to supply a more suitable filter press for you, please make us clear about your requirements:

What’s the material to filter?

What’s the solid content (%)?

What is the particle size?

What is the size of filter plate?

What is the filter pressure?

What is the filter output yield per hour?

What’s your local voltage? (customized for your requirement)

Is the liquid corrosive?

Is the liquid hot?
