POTHOLE PATCHER LMT5162TYHB

Name: POTHOLE PATCHER LMT5162TYHB
Brand: METONG
SKU: 141300754
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shanghai, China

Brand Name:

METONG

Zhejiang Metong Road Construction Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shanghai, China

Brand Name METONG

Model Number LMT5160TYHB

Certification ISO

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

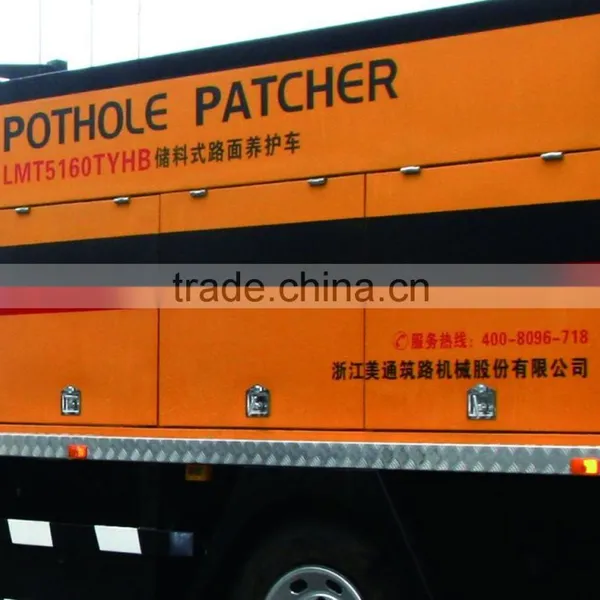

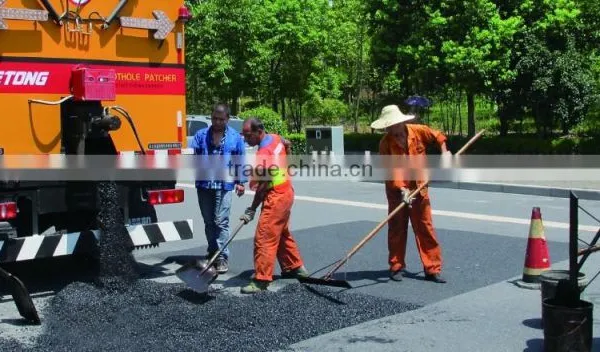

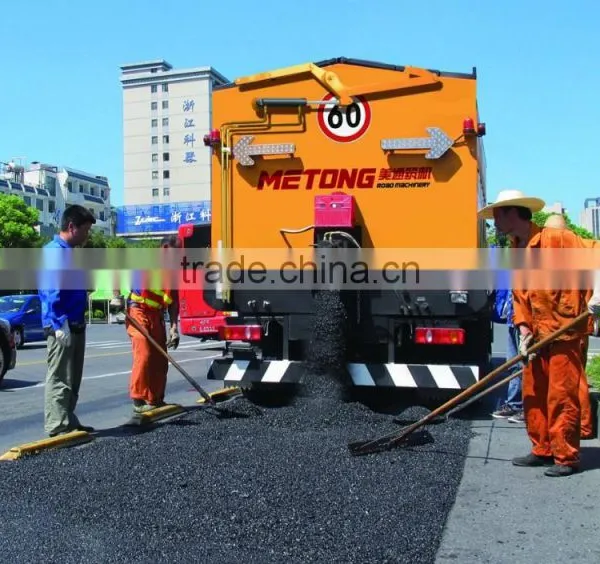

Asphalt Pavement Heat Preservation Truck is used to carry the hot asphalt mixture and keep the high temperature in the long distance transportation.

The main advantages are:

--carry the asphalt mixture in a precise ratio between bitumen and aggregate.

--preserve the temperature and the temperate drops less than ≤10℃/h.

--the asphalt mixture temperature keeps at 140~160℃ all weather.

--material gate is open/closed by the hydraulic system.

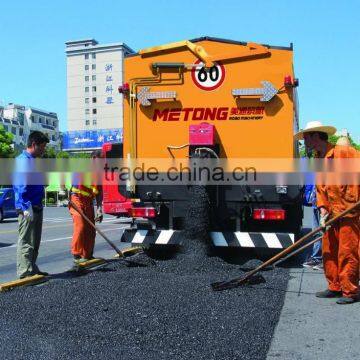

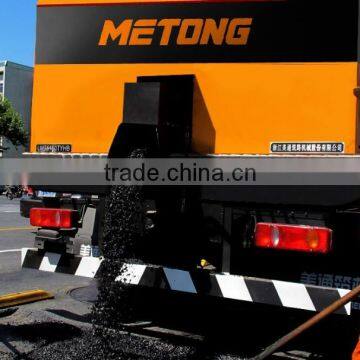

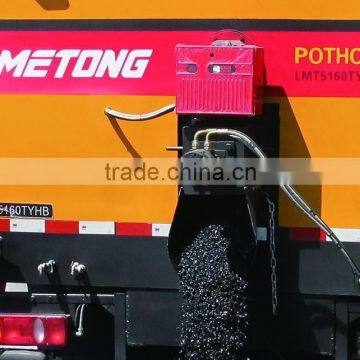

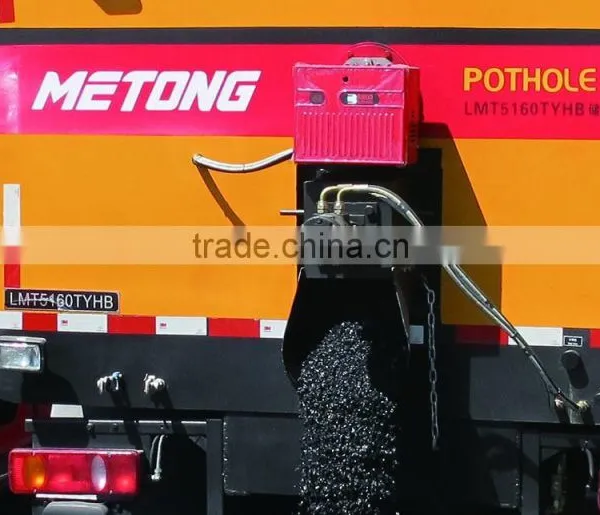

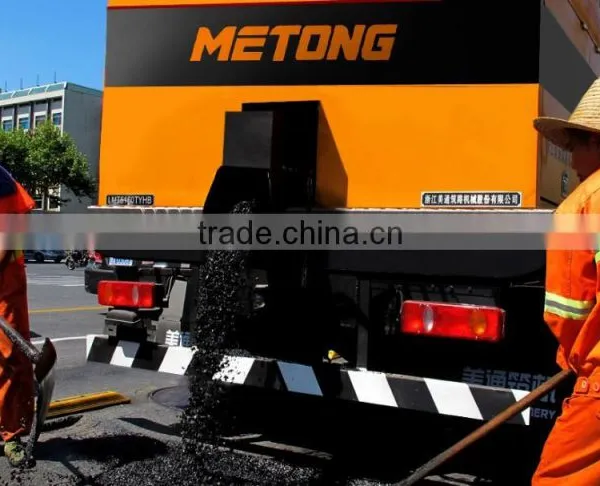

--screw output device to control the asphalt mixture discharge speed.

--bitumen or emulsion is to be sprayed as the tack layer

--compressed air is to be blown after the job is finished

Technical specification

Model number		LMT5160TYHB
Product name		Asphalt Pavement Preservation Maintenance Truck
Truck Chassis		DFL1160BX
Type		Flat head,4X2,rear drive
Engine No.:		B19033
Power(kw/rpm)		140/2500
Max torque(Nm/rpm)		650/1400
Truck emission		GB17691-2005(EURO 3)
Tier model		10.00-20
Cab passenger		3
Outline size(mm)		8480×2480×3080
Equipment weight(kg)		8950
Gross weight(kg)		16000
Tread(mm)	Front	1880
	Rear	1800
Wheel base(mm)		5000
Front suspending(mm)		1430
Rear suspending(mm)		2050
Approach angle/Departure angle		20°/17°
Max drive speed(km/h)		90
Oil consumption per 100km(L)		<30
Bitumen tank(L)		220
Asphalt mixture tank(m3)		5
Viscosity(Cst)		≤300
Max air pressure in clean system(MPa)		0.6
Max pressure in hydraulic system(MPa)		20
Max oil temperature in hydraulic system(℃)		85
Max oil temperature in hot oil system(℃)		180
Max pressure in hot oil system(MPa)		0.15
