Pavement Cleaner

1).Introduction

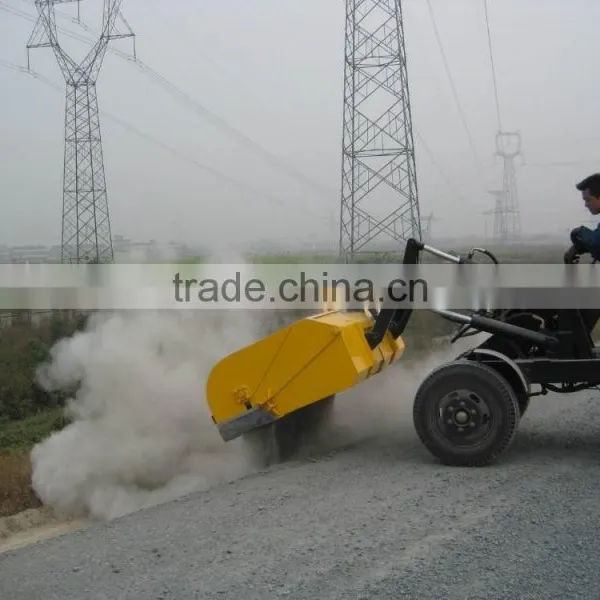

MTQS-1500 pavement clean truck is mainly used in cleaning slurry sediments resulted from various working procedures and other solid mixed substance in road operation.

2).Advantages

The equipment adopts the structure with the front cleaning brush and the rear drive, which facilitates it to ascend. The machine integrates the mechanism, electricity, fluid for the  convenient application.

2. The equipment is equipped with collection box in order to collect the waste and assure you of a clean road surface and  help to improve work efficiency as well.

3. the height and angle of brush cleaner  can b e adjusted through the hydraulic lift mechanism which enables you to adjust the cleaning strength freely.

4. The hydraulic steering gear with the imported famous components ensures you of a convenient operation.

5. Engine brand is the famous Quanchai engine for the easy maintenance..

6. The clean brush made in the special process is aimed to clear the sediments effectively with a high mechanized system.

7. The strong blower system is to blow away the sediments and the dusts in a certain direction for a higher quality of road surface cleaning which is fundamental for the next step in the road construction.
8. The strong blower system helps to improve the working condition and keeps the operators away from the harm.

9. This equipment also works for the other purposes (such as for small loader).
10. The cleaning wheel can be replaced with soft brushes to clean pumice and sundry.

3).Technical specification

 1.  Model no.:MTQS-1500B

 2,Clean width(mm):1500

 3,Diameter of the clean wheel (mm)600

 4,Rotation speed of clean wheel(r/min)250

 5,Wheel base(mm):2100

 6,Engine no.:4DW490

 7,Rated power(KW):37

 8,Velocity of the engine(r/min):2200

 9,Dust box capacity(M3):0.20

10,Dust box payload(kg):200

11,Max discharge height(mm):2400

12,Max discharge distance(mm):750

13,Swing arm lift time(s):6

14,Swing arm descend time(s):4

15,Discharge time(s):1

16,Min turning radius(mm):4200

17,Front tread(mm):1400

18,Rear tread(mm):1400

19,Driving speed(km/h):0~20

20,Equipment weight(kg):2980

21,Dimension(H×W×H)6000×1900×2600

4).Main fittings:

5).Tool box
