Metong bitumen emulsion plant/modified emulsion asphalt equipment 10T/H

Name: Metong bitumen emulsion plant/modified emulsion asphalt equipment 10T/H
Brand: METONG
Price: Negotiable

FOB Price

Negotiable / Unit

1 Unit(Min.Order)

Supply Ability 10 Unit / Units per Month
Port SHANGHAI
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Zhejiang, China	Brand Name:	METONG	Model Number:	MTR10
After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Metong bitumen emulsion plant/modified emulsion asphalt plant 10T/H

Emulsion asphalt plt

1. Parameter.

(1). Model name: MTR10 emulsified asphalt equipment

(2). Structures: Mobile Container

Length * width * height=11800mm*2200mm*2500mm

Total power: ≤45kw

2.Corresponding configuration.

No.	Name		Specification	Remark
1	Max productivity		10m3/h	Asphalt contect60%,Water solution 40%
2	Basic bitumen transport gear pump	model	YCB-6	Heat conducting oil for temperature preservation; Frequency conversion speed; Honeywell sensor
		flux	6 M3/h
		Match engine	4Kw
3	Colloid milling	Model	S300.4W.0.5
		Flux	10 M3/h
		Match engine	45Kw
4	Water pump	Model	ISW 40-125(I)
		Flux	12.5 M3/h
		RPM	2900rpm
		Match engine	1.5 Kw
5	Emulsifier supply pump and gear pump	Quantity	1	flow meter throttle valve is available
		model	ISWH 40-125(I)
		flux	12.5 M3/h
		RPM	2900RPM
		Match engine	1.5Kw
6	Emulsifier circulation pump	Quantity	1
		Model	ISWH 40-125(I)
		Flux	12.5 M3/h
		RPM	2900RPM
		Match engine	1.5Kw
7	Emulsifier mix tank	Quantity	2
		Capacity	4M3/unit
		Material	Stainless steel(#304) tank( corrosion prevention)
		Tank dimension	tank chickness:3mm; top cover:5mm; inner diameter:1500mm;inner height:2400mm	thermal insulating layer thickness:50mm
		Mixer	1.5Kw	80-15-Y-1.5-B12-270°,97rpm,190Nm
		Decelerate	15
		Derogate speed	97rpm
8	Finished emulsion bitumen transportation pump	Model	QGB/400/0.6
		Flux	400L/min or 24 M3/h
		Match engine	7.5 Kw
9	finished bitumen tank	Tank thickness	3mm
9	finished bitumen tank	Capacity	2.5 M3
10	valves application	Emulsifier	DN50 ,dual clamp butterfly valve
		Asphalt	DN50 ,dual clamp butterfly valve
		Heat oil	manual operation ,High temperature valve
		water	ball valve in stainless steel
11	control system	Manual frequency control

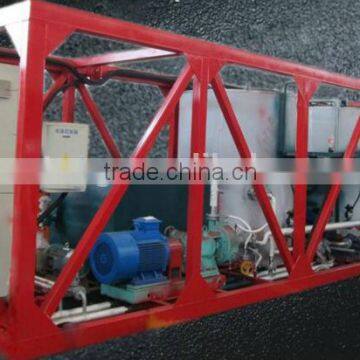

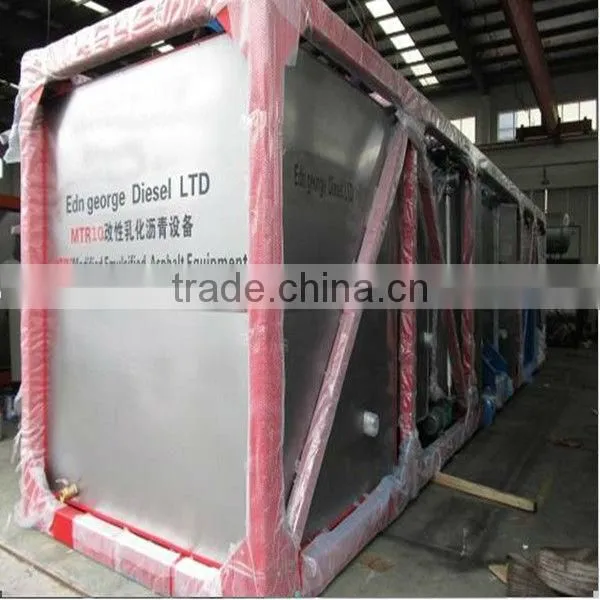

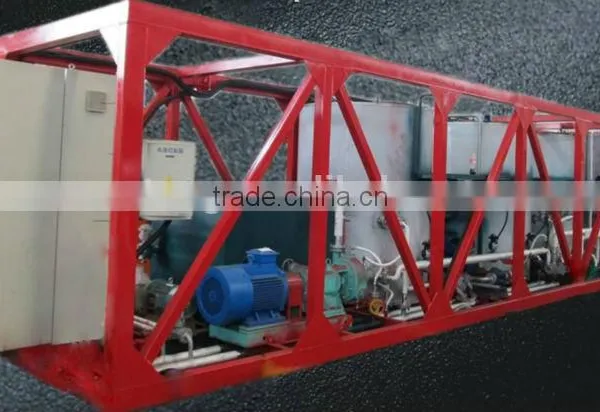

3.Product Photos.

Company Information

Zhejiang METONG Road Construction Machinery Company is a China-based company, specializing in manufacturing road construction equipment, road maintenance truck, bitumen plant, and related road equipment. Our main products include micro-surfacing equipment, asphalt distributor, asphalt tank trailer, heat preservation road maintenance truck, rubber asphalt plant and emulsion bitumen plant. Our machinery is widely used in road construction and maintenance for highway, municipal construction, airports, bridges and channels.

In order to provide customers with reliable road construction and maintenance equipment, we import key component parts from Germany, Japan, and Italy. For example, control system and key parts of our road machinery are imported from German Siemens, and the burner is from Italian Riello. With great efforts from all our staff, our company received the Chinese Machinery Industry Quality System Certification and CCC (China Compulsory Certification) in 2002, and we passed ISO9001 Quality Management System Certification in 2006. Now, our micro-surfacing equipment, synchronous chip sealer, and other road equipment are in the process of receiving CE certification.

Our products have been exported over 40 countries and regions around the world, such as Chile, rgentina,Africa,Niger,Australia etc.
