MEGATRO 110KV 1A7 J4 tension transmission tower

Name: MEGATRO 110KV 1A7 J4 tension transmission tower
Brand: Megatro
Availability: InStock

FOB Price

USD $920 - $960 / Ton

1 Ton(Min.Order)

Supply Ability 5000 Ton / Tons per Month
Port Qingdao or as per clients
Payment TermsT/T L/C
Delivery Detail30 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Megatro		Place of Origin	China
Model Number	MGP110kv-1A7-J4

Product Description

MEGATRO 110KV 1A7 J4 tension transmission tower

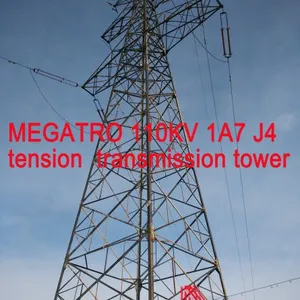

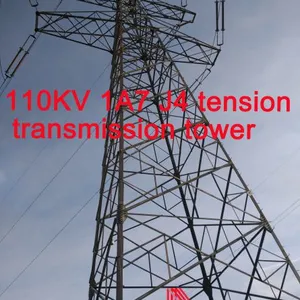

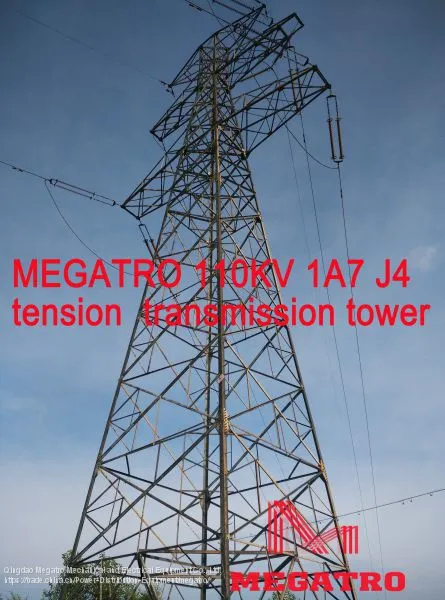

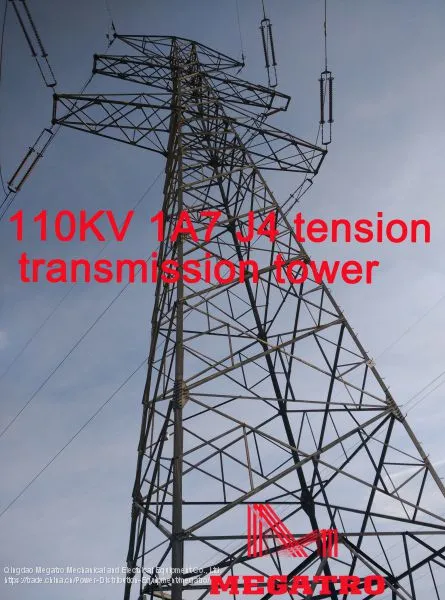

This photo refers to our 110KV 1A7 J4 tension transmission tower, it is widely used in our Chinese market. Some of technical features of this tower as follow:

1 climate condition

Item	Temperature (℃)	Wind speed (m/s)	Ice thickness (mm)
Max. temperature	40	0	0
Mini. temperature	-5	0	0
Ice thickness	--	--	--
Basic wind speed	15	33	0
Installation condition	0	10	0
Annual temperature	15	0	0
Lightning overvoltage	15	15	0
Operation overvoltage	15	17	0
Hot-line work	15	10	0

2 tower design data

Tower

type

Nominal

Height

scope

(mm)

Nominal

Height

(mm)

Horizontal

span

(m)

Vertical

Span

(m)

Angle

Insulator

Type

Horizontal

Span at angel condition

1A7 J4

15～27

450

650

60～90

Conductor type: 1×LGL -300/40 and 1×LGL-240/30

OPGW: JLB-100

Tower estimated weight and foundation force

Tower

Type

Tower weight scope (kg)

Foundation force scope (KN)

T_max

T_x

T_y

N_max

N_x

N_Y

1A7 J4

5841～9420

724～794

101～105

89～96

762～852

107～112

95～100

Tower estimated weight and foundation force

MEGATRO is a full service engineering company with a global reputation for delivering excellence and innovation in power transmission, transformation, distribution, and telecommunications systems. Our MEGATRO provide and design this type 110KV 1A7 J4 tension transmission tower mainly for our Chinese and overseas client. Since 2004, MEGATRO focus mainly international market and had export many kind of transmission structures to overseas clients. MEGATRO has been manufacturing lattice transmission tower & tapered steel poles for lighting, traffic control, communication and utility applications. MEGATRO pioneered the development of transmission tower, telecom tower, substation, and other steel structure and was also at the forefront in the design of Transmission tower.
