Bio Spectrometer

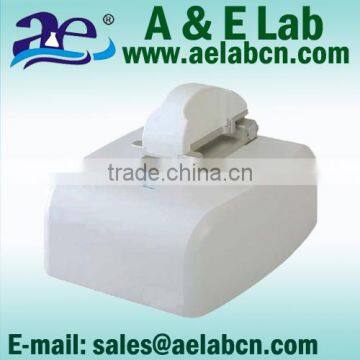

AE-NANO100 is a Micro-volume UV Vis Spectrophotometer designed for nucleic acid measurements.
It can accurately measure nucleic acid samples, and is no need to dilute high-concentration samples.
Simply pipette 0.5~2ul sample onto the pedestal, laying down the sampling arm, AE-NANO100 can
automatically complete the measurement within 5 seconds.
Features:
*Direct, easy measurements in less than 5 seconds: just pipette & wipe.
*Full spectral output.
*Measures DNA, RNA (A260) and Protein (A280),concentrations and sample purity (260/280ratio).
*Large concentration range without dilutions.
*User-friendly software that includes Custom Methods and data export capabilities.
*Low-cost operation--no plates or other consumables.
Detailed Product Description:
1. Wavelength range: 200~850nm;
2.Delivery Time:Within 10 days after received the payment;
3.With English User's Manual,English Control Panel;
4.Warranty:1 year.
Technical Specifications:
Model |
AE-Nano100 |
Wavelength Range |
200~850 nm |
Minimum Sample Size |
0.5~2.0ul |
Path Length |
0.2mm (For high concentration measwrement) 1.0mm (For ordinary) |
Light Source |
Xenon flash lamp |
Detector Type |
3864-element linear silicon CCD array |
Wavelength Accuracy |
1nm |
Spectral Resolution |
≤ 3 nm (FWHM at Hg 546 nm) |
Absorbance Precision |
0.003 Abs |
Absorbance Accuracy |
1% (at 0.76 at 350 nm) |
Absorbance Range |
0.02 - 75 (10 mm equivalent) |
Measurement Time |
< 5s |
Dimensions (W x D x H)mm |
200 x 262 x 154 |
Weight |
2.5kg |
Sample Pedestal Material |
Aluminum alloy and Quartz fiber |
Operating Voltage |
12V DC |
Operating Power Consumption |
12 - 18 W |
Standby Power Consumption |
5W |
Software Compatibility |
Windows 7, Windows XP |
Packing List
AE-Nano100 Packing List | |
Description |
Quantity |
Micro-Spectrophotometer |
1Unit |
Setup CD |
1PC |
Adapter |
1PC |
USB cable |
1PC |
Operations manual |
1PC |
Certification |
1PC |
