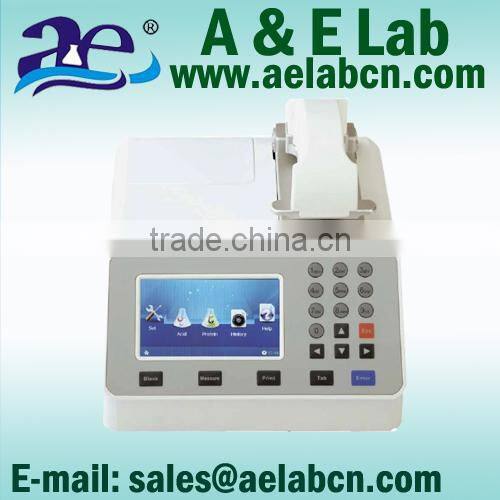

NANO-200 Micro-spectrophotometer

NANO-200 Micro-spectrophotometer photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
A&E LAB
Model Number:
AE-NANO200
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou/Shanghai China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name A&E LAB
Model Number AE-NANO200
Size 210 x 280 x 166mm
Weight 2.5kg
Wavelength Range 230nm, 260nm, 280nm, 230nm, 260nm, 280nm
Measurement Range 230nm, 260nm, 280nm

A & E Lab.

A & E Lab Hot Selling are include: UV VIS Spectrophotometer, Visible Spectrophotometer, Flame Photometer, PCR-Cycler, Blocker Heater, Hotplate, Stirrer, Stirrer Hotplate, Rotory Mixer, Tube Roller Mixer, 3D Rocker, See-Saw Rocker, Vortex Mixer, Orbital Shaker, Cold Keeper, Melting Point Device, Shaker Incubator, etc.
Welcome to inquire us!



The information of our instruments:

Warranty : 1 year  / 3 years  / 2 years
Certifications: CE&ISO
Delivery time: Within 10 days after received your payment. (AAS: Within one month)
MOQ: 1 unit
Payment term: T/T advance, paypal, western union, Moneygram.

Cooperation type: Distribute / Neutral packing / OEM / ODM.



Introduction:

AE-NANO200 is a Nucleic Acid Analyzer designed for analyzing the concentration and pure of Nucleic Acid (DNA/RNA). Simply pipette 0.5~2ul sample onto the pedestal, laying down the sampling arm, AE-NANO200 can automatically complete the measurement within 5 seconds.

Features:

² Direct, easy measurements in less than 5 seconds.

² Require only 0.5~2ul samples.

² No cells or cuvettes and no warm up.

² Optional data output via built-in printer, SD-RAM Card, USB

² memory.

² Touch screen and panel operation, without computer.

² No dilutions for samples.



Technical Specifications:

Model

AE-NANO200

Wavelength Range

230nm, 260nm, 280nm

Minimum Sample Size

0.5~2.0ul

Spectral Resolution

≤ 3 nm (FWHM at Hg 253.7 nm)

Path Length

0.2mm (For high concentration measurement)

1.0mm (For ordinary)

Light Source

Xenon flash lamp

Absorbance Precision

0.003 Abs

Absorbance Range

0.02 - 80 (10 mm equivalent)

Detects Nucleic acid up to

10~4000ng/ul (dsDNA)

Detection Time

10s

Dimensions (W x D x H)mm

210 x 280 x 166

Sample Pedestal Material

Aluminum alloy and Quartz fiber

Operating Voltage

24V DC 4A

Power

80W

Save Type

64M flash, 2GB SD Card



NANO-200 micro-spectrophotometerNANO-200 micro-spectrophotometerNANO-200 micro-spectrophotometerNANO-200 micro-spectrophotometerNANO-200 micro-spectrophotometerNANO-200 micro-spectrophotometerNANO-200 micro-spectrophotometer
