Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
A&E LAB
Model Number:
NANO-100
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou/Shanghai China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name A&E LAB
Model Number NANO-100
Size 200 x 262 x 154 mm
Weight 2.5kg
Focal Length 200~850 nm
Wavelength Range 1nm
Measurement Range 200~850 nm

A & E Lab.

A & E Lab Hot Selling are include: UV VIS Spectrophotometer, Visible Spectrophotometer, Flame Photometer, PCR-Cycler, Blocker Heater, Hotplate, Stirrer, Stirrer Hotplate, Rotory Mixer, Tube Roller Mixer, 3D Rocker, See-Saw Rocker, Vortex Mixer, Orbital Shaker, Cold Keeper, Melting Point Device, Shaker Incubator, etc.
Welcome to inquire us!



The information of our instruments:

Warranty : 1 year  / 3 years  / 2 years
Certifications: CE&ISO
Delivery time: Within 10 days after received your payment. (AAS: Within one month)
MOQ: 1 unit
Payment term: T/T advance, paypal, western union, Moneygram.

Cooperation type: Distribute / Neutral packing / OEM / ODM.



Introduction:

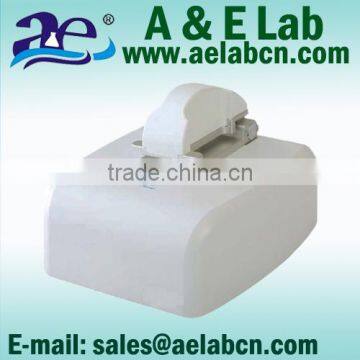

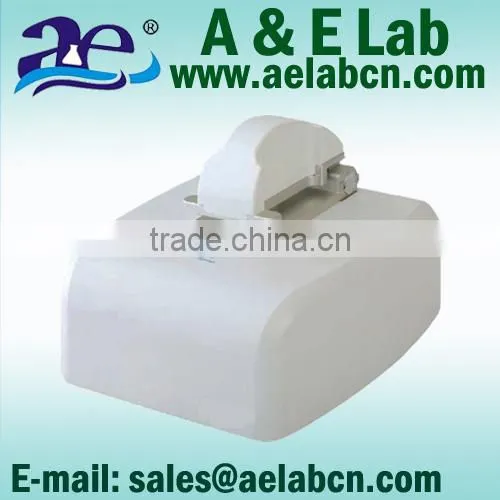

The AE-NANO100 is a spectrophotometer that measures 0.5-2ul samples with high accuracy and reproducibility. Sample pedestals apply surface tension to make the sample column, so that hold samples in the pedestal. During measurement, the light goes through the sample column, and then passes to CCD detector by fiber optic cable. In additionthe AE-NANO100 has the capability to measure highly concentrated samples without dilution (100X higher concentration than the samples measured by a standard cuvette).



Features:

² Direct, easy measurements in less than 5 seconds: just pipette & wipe.

² Full spectral output.

² Measures DNA, RNA (A260) and Protein (A280), concentrations and sample purity ratio (260/280).

² Large concentration range without dilutions.

² User-friendly software that includes Custom Methods and data export capabilities.

Low-cost operation--no plates or other consumables.



Technical Specifications:

Model

AE-NANO100

Wavelength Range

200~850 nm

Minimum Sample Size

0.5~2.0ul

Path Length

0.2mm (For high concentration measwrement)

1.0mm (For ordinary)

Light Source

Xenon flash lamp

Detector Type

3864-element linear silicon CCD array

Wavelength Accuracy

1nm

Spectral Resolution

≤ 3 nm (FWHM at Hg 253.7 nm)

Absorbance Precision

0.003 Abs

Absorbance Accuracy

1% (at 0.76 at 350 nm)

Absorbance Range

0.02 - 120 (10 mm equivalent)

Detection Limit

8ng/ul dsDNA

Max. detection concentration

6,000ng/ul(dsDNA)

Detection time

< 5s

Dimensions (W x D x H)mm

200 x 262 x 154

Weight

2.5kg

Sample Pedestal Material

Aluminum alloy and Quartz fiber

Power

5W

Software Compatibility

Windows XP, Vista(32bit), Win7(32bit)
