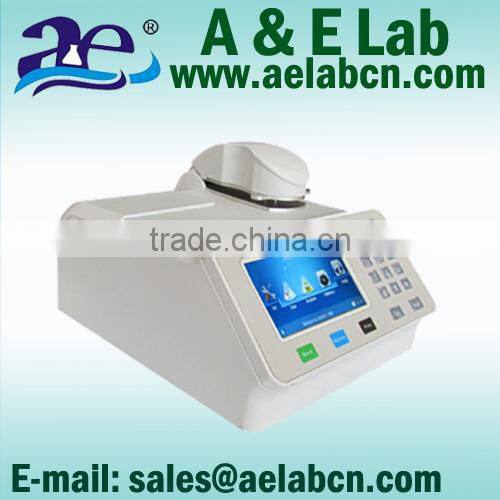

NANO mirco photometers

Specifications

1.NANO mirco photometers
2.Delivery Time: within 7 days after received payment
3.MOQ: 1 unit
4.Certification: CE&ISO

Micro-Spectrophotometer





A & E Lab.

Main Products: Atomic Absorption Spectrometer (AAS), Fluorescence Spectrophotometer,

Bio-Spectrophotometer, UV Vis Spectrophotometer, Visible Spectrophotometer, Flame Photometer, Whiteness Meter, Turbidity Meter, Colorimeter,  Gloss Meter, Tintometer, Automatic Polarimeter, Auto Melting Point Apparatus, Automatic Refractometer, Abbe Refractometer, PH/DDS/TDS Meter, Incubator, shaker, Hotplate, Mixer, PCR, Oven, etc.









Introduction:

Nano-200 is a Nucleic Acid Analyzer designed for analyzing the concentration and pure

of Nucleic Acid (DNA/RNA). Simply pipette 0.5~2ul sample onto the pedestal,

laying down the sampling arm, Nano-200 can automatically complete the measurement

within 5 seconds.









Features:

1.Direct, easy measurements in less than 5 seconds.

2.Require only 0.5~2ul samples.

3.No cells or cuvettes and no warm up.

4. Optional data output via built-in printer, SD-RAM Card, USB memory.

5. Touch screen and panel operation, without computer.

6.No dilutions for samples.







Technical Specifications:

Model	NANO-200
Wavelength Range	230nm, 260nm, 280nm
Minimum Sample Size	0.5~2.0ul
Path Length	0.2mm (For high concentration measurement) 1.0mm (For ordinary)
Light Source	Xenon flash lamp
Absorbance Precision	0.003 Abs
Absorbance Range	0.02 - 80 (10 mm equivalent)
Detects Nucleic acid up to	10~5000ng/ul (dsDNA)
Detects Protein up to	0.1mg/ml~100mg/ml
Measurement Time	< 5s
Dimensions (W x D x H)mm	210 x 280 x 166
Sample Pedestal Material	Aluminum alloy and Quartz fiber
Operating Voltage	12V DC
Operating Power Consumption	12 - 18 W
