Specifications
1.micro spectrometer2.Delivery Time: within 10 days after received payment
3.MOQ: 1 unit
4.Certification: CE&ISO
Micro-Spectrophotometer
A & E Lab.
Main Products: Atomic Absorption Spectrometer (AAS), Fluorescence Spectrophotometer, Bio-Spectrophotometer, UV Vis Spectrophotometer, Visible Spectrophotometer, Flame Photometer, Whiteness Meter, Turbidity Meter, Colorimeter, Gloss Meter, Tintometer, Automatic Polarimeter, Auto Melting Point Apparatus, Automatic Refractometer, Abbe Refractometer, PH/DDS/TDS Meter, Incubator, shaker, Hotplate, Mixer, PCR, Oven, etc.
Introduction:

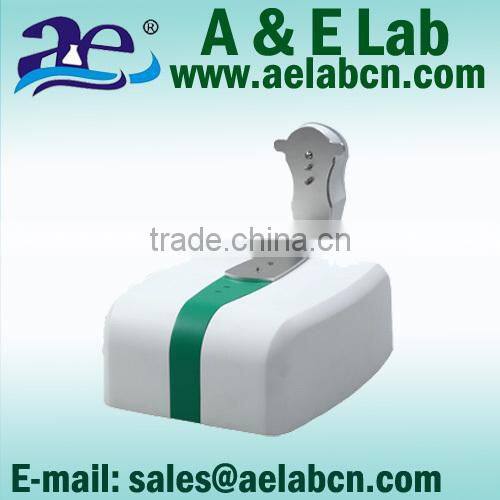

Nano-100 is a Micro-Spectrophotometer designed for nucleic acid measurements.
It can accurately measure nucleic acid samples, and is no need to dilute high-concentration
samples. Simply pipette 0.5~2ul sample onto the pedestal, laying down the sampling arm,
Nano-100 can automatically complete the measurement within 5 seconds.
Features:
1.Direct, easy measurements in less than 5 seconds: just pipette & wipe.
2. Full spectral output.
3.Measures DNA, RNA (A260) and Protein (A280),concentrations and sample purity
(260/280ratio).
4. Large concentration range without dilutions.
5.User-friendly software that includes Custom Methods and data export capabilities.
6.Low-cost operation--no plates or other consumables.
Technical Specifications:
Model |
NANO-100 |
Wavelength Range |
200~850 nm |
Minimum Sample Size |
0.5~2.0ul |
Path Length |
0.2mm (For high concentration measurement) 1.0mm (For ordinary) |
Light Source |
Xenon flash lamp |
Detector Type |
3864-element linear silicon CCD array |
Wavelength Accuracy |
1nm |
Spectral Resolution |
≤ 3 nm (FWHM at Hg 546 nm) |
Absorbance Precision |
0.003 Abs |
Absorbance Accuracy |
1% (at 0.76 at 350 nm) |
Absorbance Range |
0.02 - 75 (10 mm equivalent) |
Measurement Time |
< 5s |
Dimensions (W x D x H)mm |
200 x 262 x 154 |
Weight |
2.5kg |
Sample Pedestal Material |
Aluminum alloy and Quartz fiber |
Operating Voltage |
12V DC |
Operating Power Consumption |
12 - 18 W |
Standby Power Consumption |
5W |
Software Compatibility |
Windows 7, Windows XP |
