MEGATRO 220KV transmission line LVZT type suspension tower

MEGATRO 220KV transmission line LVZT type suspension tower

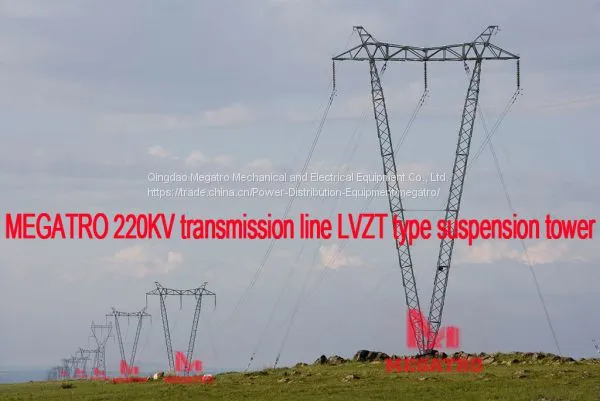

This photo refers to 220KV transmission line LV_ZT type suspension tower, with Conductor lined in horizontal direction, double earth wire, V type guyed stay wire. This tower occupies more spaces, with three nominal heights. Some of their technical data as follow:

Remark: above technical data only references for our client, we can design every type for our overseas clients.

MEGATRO is a full service engineering company with a global reputation for delivering excellence and innovation in power transmission, transformation, distribution, and telecommunications systems. Our MEGATRO provide and design this type 220KV transmission line LVZT type suspension tower, mainly for our overseas client. Since 2004, MEGATRO focus mainly international market and had export many kind of transmission structures to overseas clients. MEGATRO has been manufacturing lattice transmission tower & tapered steel poles for lighting, traffic control, communication and utility applications. MEGATRO pioneered the development of transmission tower, telecom tower, substation, and other steel structure and was also at the forefront in the design of Transmission tower.

Over 10 years of experience and innovation in engineering, designing and building towers has evolved MEGATRO into its current form:

l  Full Turn-Key provider including site acquisition, engineering services, manufacturing,   field services-DAS, tech services, value added reseller and monitoring, maintenance and network ownership

l  Specialize in developing supplying and building wireless and wired networks and in-building telecommunications systems, as well as energy infrastructure

l  Single source from Design to System Integration

l  Top quality, ISO 9001 registered

A complete selection of towers including self-support, lattice steel tower, monopoles and guyed towers, form custom-designed radar towers to broadcast towers and energy infrastructure. MEGATRO carries a variety of related products including fall protection, transmission lines, antennas, obstruction lights, and accessories, and other products if client need, MEGATRO also tailored product as per client condition.

MEGATRO mainly design all kinds of towers and posts for:

a.    Telecoms

b.    Power transmission

c.    TV and Radio Broadcast

d.    Roads and City Development

e.    Wind energy solution

f.     Steel structure and workshop

Our complete selection of towers includes:

a.    Self-supporting

b.    Monopoles

c.    Guyed towers

d.    Custom-designed radar towers

e.    Broadcast towers

f.     Power transmission

MEGATRO also designs and manufactures tower related products including:

a.    Fall protection

b.    Antenna brackets

c.    Other accessories if needed by clients

Today, with over 10 years of experience and our commitment to excellence, MEGATRO remains an industry leader in the manufacture and design of steel tubular & angular & monopole structures for all Highway, Municipal, Custom, telecom, lighting and electric Utility applications. MEGATRO has a complete staff of professional engineering personnel trained in the PLS Pole program and three different manufacturing processes for producing steel towers, poles and other supports. We utilize the latest versions of PLS-CADD, PLS-POLE, TOWER, AutoCAD and other CAD software.

The structure shall be designed according to load combinations given as per IEC 61936-1 and as illustrated below:
Normal loads
1 Dead weight load
2 Tension load
3 Erection load
4 wind load

Exceptional loads
1 Switching forces
2 short-circuit forces
3 Loss of conductor tension
4 Earthquake forces

Moreover, MEGATRO is fully equipped and qualified to carry out Design Engineering services which includes:

√ Overhead Transmission line steel tower & Telecom steel tower

   Basic Design and Analysis

√ Shop Erection Drawings

√ As-Built Drawings

MEGATRO performs in-house design activities specializing in electrical overhead transmission &telecom tower steel works, which include wind and earthquake loading, static analysis, stress analysis by finite element methods and fatigue. Our Engineering Department is boasting of highly qualified engineering who are conversant with international codes and standards. The work is carried out with extensive use of CAE/CAD via a large of computer network. The computer hardware & drafting software are liked to the CNC workshop equipment for downloading of information thereby eliminating error and saving valuable production time.
