Pipe Thread Cutting Lathe / Oil country Lathe / Oil Field Lathe ( Q-280, Q-360, Q-460 )
- 60 Set / Sets per Month
- China Port
- T/T
- CNC machine tool Oil Lubrication products and equipment
- Centralized Lubrication System Pump for Machinery
- automatic pump control oil machine maintenance lubricators
- electronic products machinery manufacturing lubrication solutions
- cnc turning electric motor machine parts and lubrication pump
- Centralized Lubrication system industrial machinery equipment
Product Details
Brand Name: | TIMAC | Model Number: | Q-280, Q-360, Q-460 | Condition: | New |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

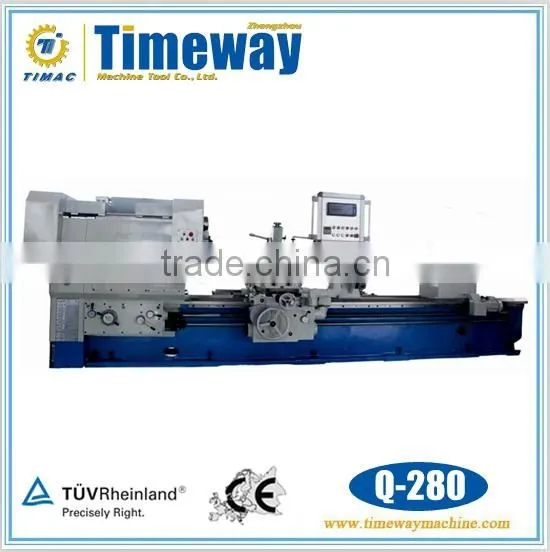

Pipe Thread Cutting Lathe Machine, Oil country Lathe
tubo de hilo de torno(Q-280, Q-360, Q-460)
Features:
This lathe meets the special requirements of users in the petroleum, geological, mining and chemical industries,
and in agricultural irrigation and diainage, it is able to cut various straight and taper pipe threads of union joints,
drill rods.casting pipes, drain pipes, well castings and water pump pipes more ecomomically and efficiently as
compared with the engine lathe.However, it may serve as an engine lathe to cut various metric, withworth and
module threads, shaft and disks.
1.The machine is equipped with a tapering unit which can work out a ±1:4 taper.
2.The machine is able to cut both metric and with threads without changing the translating gear.
3.The dripping worm in the apron can protect the mechanisms of the lathe automatically.
4.The guideway is hardened and finely finished.
5.The great power of the machine is competent at heavy load and power cutting.
6.The floor center rest can be moved freely as required by the user.
7.The center rest is provided with an adjustable clamp unit for long pipes, greatly reducing intensity of labor.
8.The double 4-jaw chucks offer free clamp of both short and long pipes
Standard Accessories:
4 jaw big hole chuck (front & rear), Steady rest, Follow rest, Taper turning attachment, Oil gun, Coolant system, Working light, General tools, Foundation bolts, Operation manual (English edition)
Optional Accessories:
2-axes DRO, Thread chasing dial, Out board support
Parameter:
Specification | Unit | Q-280 | Q-360 | Q-460 |
Diameter of spindle bore | mm | Φ280 | Φ360 | Φ460 |
Max.swing over bed | mm | Φ1000 | Φ1000 | Φ1250 |
Max.swing over tool post | mm | Φ700 | Φ640 | Φ890 |
piece length between centers | mm | 1500/2000/3000/4000/5000/6000/7000/8000/9000 | ||
Max.turning length | mm | 1300/1800/2800/3800/4800/5800/6800/7800/8800 | ||
Max.load capacity between two centers | kg | 4000 | 6000 | 6000 |
Width of bed | mm | 600 | 755 | 970 |
Steps of spindle speed | step | 8 | 8 | 8 |
Range of spindle speed | r.p.m | 5-315 | 6.3-315 | 5.3-315 |
Power of main motor | kw | AC 18.5 | AC 22 | AC 30 |
NO.and range of Metric thread | mm | 44kinds, 1-120 | ||
NO.and range of Inch thread | T.P.I | 37kinds, 30-11/8 | ||
NO.and range of Module thread | mm | 46kinds, 0.5-60 | ||
NO.and range of Pitch thread | D.P | 46kinds, 0.5-60 | ||
Tool post station |
| Vertical 4-station | ||
Tool section | mm | 32×32 | 45×45 | 45×45 |
Dia. of tailstock sleeve | mm | Φ120 | Φ160 | Φ160 |
Taper of tailstock |
| Morse No.6 | Metric No.80 | Metric No.80 |
Travel of tailstock | mm | 300 | ||
Power of rapid motor | kw | 1.5 | ||
Power of coolant pump | kw | 0.15 |
