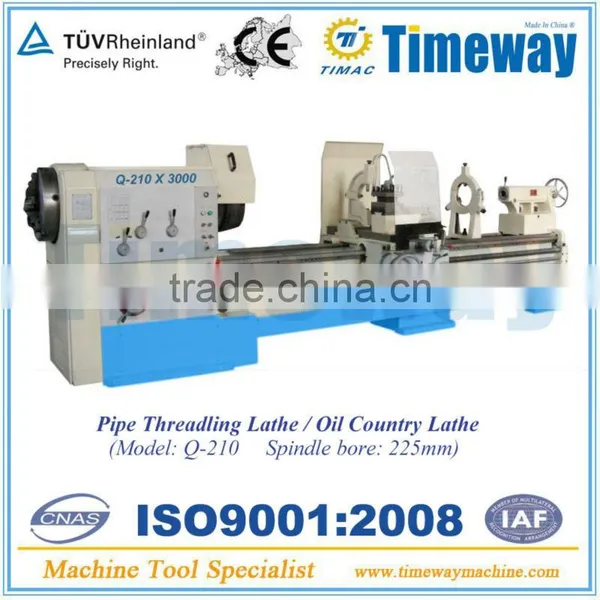

Hollow Spindle Oil Country Lathe (Pipe Thread Turning Lathe) Q-210
- 300 Set / Sets per Month
- China Port
- T/T Credit Card
Product Details
Condition: | New | Type: | Horizontal | CNC or Not: | Normal |
Automatic Grade: | Semi-Automatic | Max. Swing Diameter: | 840mm | Place of Origin: | Henan, China |
Brand Name: | TIMAC, TIMEWAY | Model Number: | Q-210 | Voltage: | 220V/380V/400V |
Certification: | ISO, CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1. Oil country lathe;2. Pipe thread turning lathe;
3. Integral bed;
4. Double chuck structure;
5. Large spindle bore 225mm
Double Chuck Pipe Thread Turning Lathe - Oil Field Lathe Machine Q-210
(225mm large spindle bore)
Features:
1. It can machine many kinds pipe threads, also can machine the taper threads with the taper attachment and the support.
2.The integral bed ensuring the rigidity of the lathe and the guide-ways are medium-frequency hardened to ensure the long working life.
3.The spindle applies the double-chuck structure.
Specification | Q-210 | |
Max. swing over bed | 840mm | |
Max. outer diameter of pipe | 210mm | |
Max. swing over carriage | 560mm | |
Max. length of work piece | 1500/3000/4000/5000/6000mm | |
Max. turning length | 1350/2850/3850/4850/5850mm | |
Diameter of spindle through hole | 210 | |
Taper of spindle bore | 225 | |
Type of spindle nose | C type flange connect | |
Range of spindle speed | 12 steps (45~572r/min) | |
Morse taper of center sleeve | MT6 | |
Kinds, range of longitudinal feed | 32 kinds 0.1-1.5mm/r | |
Kind, range of transverse feed | 32 kinds, 1/2 of longitudinal feed | |
Pitch of leadscrew | 12 | |
Kinds, range of metrical thread | 22 kinds 1-15mm | |
Kinds, range of inch-system thread | 28kinds 15-1 t.p.i | |
Kinds, range of modular thread | 21 kinds 0.5-7.5um | |
Kinds, range of pitch thread | 20 kinds 28-2 D.P | |
Diameter of tailstock sleeve | 100mm | |
Morse taper of sleeve | MT6 | |
Max. travel of sleeve | 300mm | |
Max. travel of top slide | 240mm | |
Max. travel of cross slide | 500mm | |
Double-speed motor power | 9/11kw | |
Double-speed motor speed | 1000/1500r/min | |
Rapid-travel motor power | 1.1kw | |
Rapid-travel motor speed | 1350r/min | |
Cooling pump power | 0.125kw | |
Cooling motor flow | 22L/min | |
Gear pump pressure | 2.5MPa | |
Gear pump flow | 6L/min | |
Gear pump speed | 1450r/min | |
Net weight | 3515/5000/5800/6500/7200kg | |
Overall dimension | Length | 3515/5015/6160/7160/8160mm |
Width | 1395mm | |
Height | 1650mm |
Wooden case(can be fumigated) or Pallet
1. Free replacing parts available in the warranty period.
Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
ISO, CE, TUV, SGS certified company.
* Trade terms: FOB, CFR, CIF, EXW, FCA price terms is acceptable.
* Payment terms: T/T, L/C, Western Union payment terms is acceptable.
* Delivery time: Normal delivery time: 45days, 60days, 75days, 90days....(vary as the machine's different size and complexible).
* Warranty period: 12monthes after delivery. (Within the warranty period, if there is any problem not caused by wrong operation, we will supply you the replacing parts for free. Even beyond the period, we will still supply the replacing parts with cost price).
