Conventional Pipe threading lathe (Q-360)
Application:

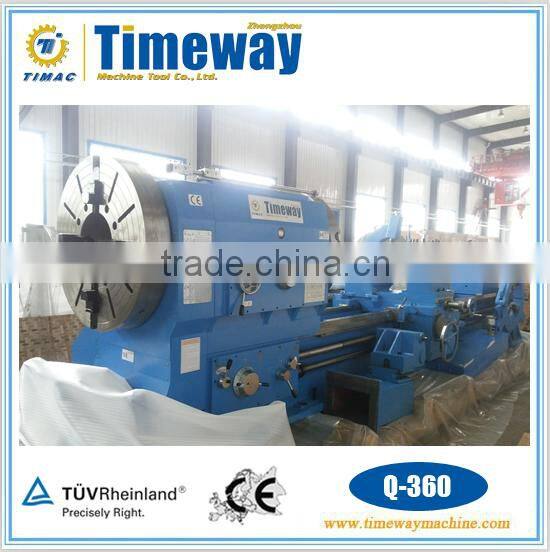

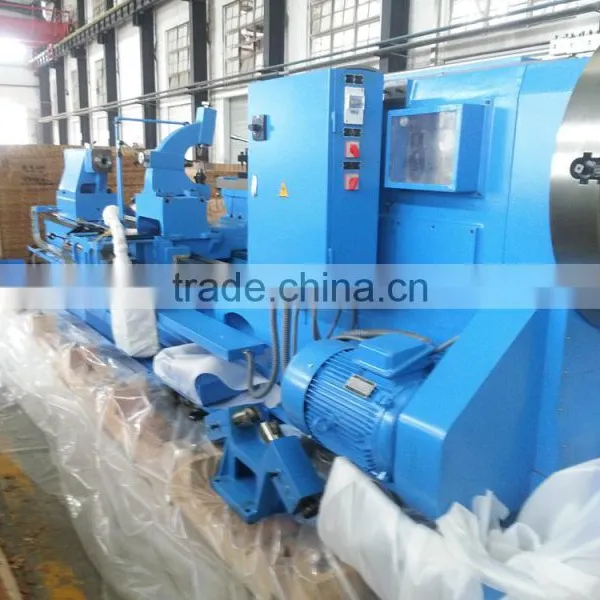

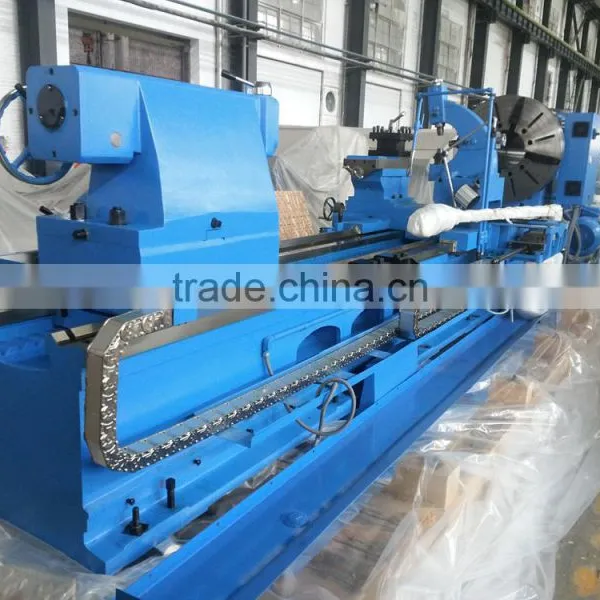

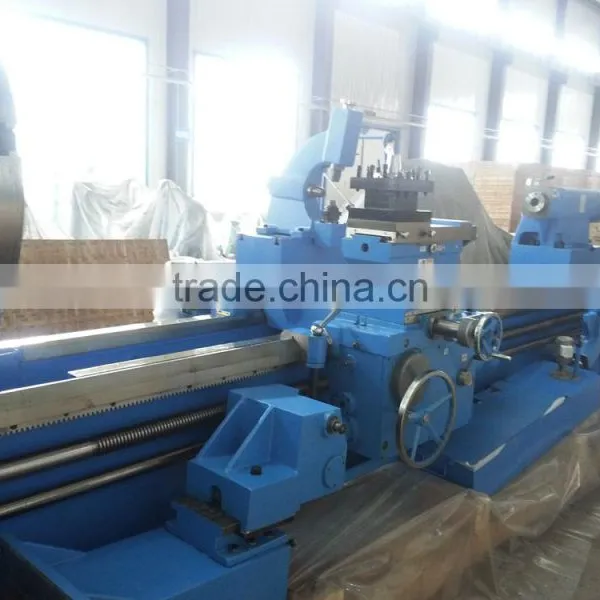

14" (360mm) Hollow Spindle / Conventional Pipe Threading Lathe
We, Timeway Machine sold 6", 8", 10", 14", 18" hollow spindle Conventional oil country lathes designed to perform all sizes of the threads used in the oil & gas industry; center height 385mm, 500mm, 550mm, 650mm; distance between centres from 1500mm up to 9000mm; 3-jaw self-centering chuck or 4-jaw independent chuck on both sides of gear box. All machines are in conformity to the CE norms.
Parameter:
| Specification | Unit | Q-280 | Q-360 | Q-460 |
| Diameter of Spindle bore | mm | Φ 280 | Φ 360 | Φ 460 |
| Max. swing over bed | mm | Φ 1000 | Φ 1000 | Φ 1200 |
| Max. swing over cross slide | mm | Φ 720 | Φ 640 | Φ 800 |
| Max. distance between two centers | mm | 1500/2000/3000/4000/5000/6000 | ||
| Max. turning length | mm | 1300/1800/2800/3800/4800/5800 | ||
| Width of bed | mm | 600 | 755 | 970 |
| Max. load capacity between two centers | ton | 4 | 6 | 6 |
| Spindle speed range | r.p.m | 4~435 | 6.3~315 (18 setps) | 3.15~315 (2 steps) |
| Chuck diameter | mm | 4-Jaw (Φ 720) | 4-Jaw (Φ 800) | 4-Jaw (Φ 1000) |
| Longitudinal feed range | mm/r | 64 kinds, 0.18-9.6 | 97 kinds, 0.064-12 | 97 kinds, 0.064-12 |
| Cross feed range | mm/r | 64 kinds, 0.04-4.8 | 97 kinds, 0.032-6 | 97 kinds, 0.032-6 |
| No. and range of Metric thread | mm | 56 kinds, 1~120 | 56 kinds, 1~120 | 56kinds, 1~120 |
| No. and range of Inch thread | T.P.I | 56 kinds, 30~1/4 | 56 kinds, 30~11/8 | 56 kinds, 30~9/8 |
| No. and range of Module thread | mm | 56 kinds, 0.5-60 | 56 kinds, 0.5-60 | 56 kinds, 0.5-60 |
| No. and range of Pitch thread | D.P | 46 kinds, 0.5-60 | 56 kinds, 0.5-60 | 46 kinds, 0.5-60 |
| Tool post station | - | Vertical 4-station | Vertical 4-station | Vertical 4-station |
| Section of tool shank | mm | 32×32 | 45×45 | 45×45 |
| Tool post swing angle | ° | ±90° | ||
| Max. travel of top slide | mm | 200 | 300 | 300 |
| Max. travel of cross slide | mm | 600 | 520 | 620 |
| Tailstock sleeve diameter | mm | Φ 120 | Φ 160 | Φ 160 |
| Tailstock sleeve taper | - | Morse No.6 | Metric No.80 | Metric No.80 |
| Tailstock sleeve Travel | mm | 250 | 300 | 300 |
| Main motor power | kw | A.C 18.5 (Inverter) | A.C 22 | A.C 37 (Inverter) |
| Rapid Motor power | kw | 1.1 | 1.5 | 1.5 |
| Coolant pump | kw | 0.15 | 0.15 | 0.15 |

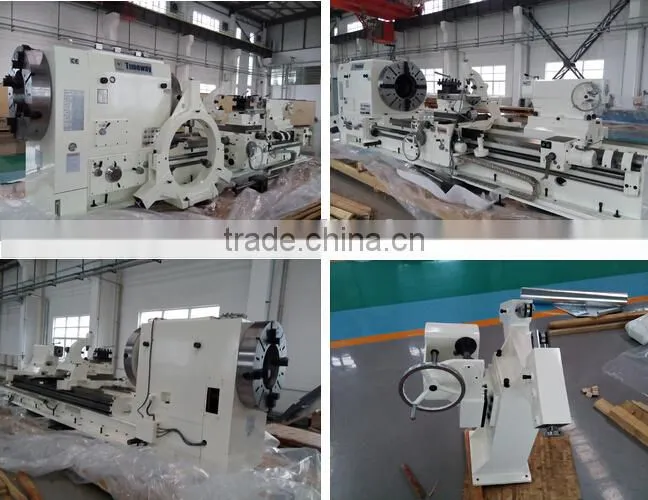

Q-280 series photos:

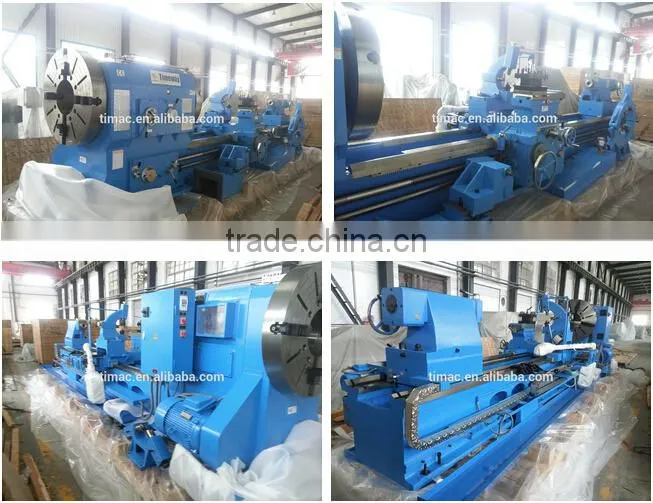

Q-460 series photos:
