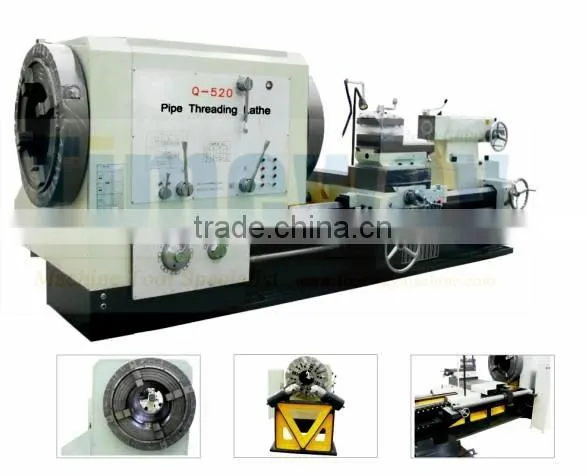

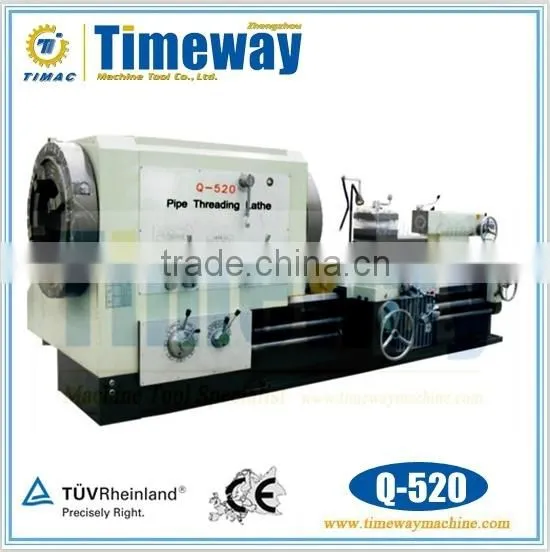

Manual Pipe Thread Cutting Lathe Machine, Oil country Lathe, Oil Field Lathe Machine
Features:
*The lathe are used for turning pipe threads, inside and outside, which are suitable for making
external circles, holes and end suface of shaft or discs as general machine tools.
*Massive headstock with precision spindle running in tapered roller bearings, 2 lathe chuck
mounts on both sides.
*High torgue at the working spindle ensures high chip removal rates when machining parts with large diameters.
*Heavy machine bed made of premium cast-iron with hardened and ground guideways.
*Central, partical controls for feeds and thread leads.
*Wide spectrum of inch and metric thrads.
*Heavy-duty 4-station tool holder
*Gears are hardened and ground.
*Coolant system is included.
Parameter:
Specification |
Unit |
Q-130 |
Q-200 |
Q-280A |
Q-330 |
Q-390 |
Q-440A |
Q-520 |
Max.swing over bed |
mm |
630 |
1000 |
|||||
Max.swing over carriage |
mm |
350 |
610 |
|||||
Distance between centers |
mm |
1500 , 3000 |
||||||
Width of bed |
mm |
490 |
755 |
|||||
Dia.of spindle inner hole |
mm |
130 |
200 |
280 |
330 |
390 |
440 |
520 |
Max.diameter of clamped pipe |
mm |
30-126 |
50-193 |
130-273 |
190-320 |
190-380 |
273-426 |
330-510 |
Steps of spindle speed |
|
18 |
12 |
12 |
12 |
9 |
9 |
9 |
Range of spindle speed |
r.p.m |
12-642 |
24-300 |
16-380 |
7.5-280 |
6-205 |
4.9-180 |
6-205 |
Range of metric threads |
mm |
52kinds, 1-224 |
24kinds, 1-14 |
30kinds,1-30 |
23kinds,1-15 |
|||
Range of inch threads |
teeth/in |
40kinds, 2-28 |
40kinds, 2-28 |
27kinds,1-28 |
22kinds,2-28 |
|||
Longutudinal feeds range |
mm |
26kinds, 0.07-1.33 |
40kinds,0.1-3 |
32kinds,0.1-1.5 |
||||
Cross feeds range |
mm |
22kinds, 0.02-0.45 |
40kinds,0.05-1.5 |
32kinds,0.05-0.75 |
||||
Tool section(H×W) |
mm |
30×30 |
45×45 |
|||||
Max.travel of tool post |
mm |
200 |
300 |
|||||
Max.travel of cross slide |
mm |
390 |
520 |
|||||
Dia.of tailstock sleeve |
mm |
100 |
140 |
|||||
Travel of tailstock sleeve |
mm |
205 |
300 |
|||||
Taper of tailstock sleeve |
|
MT5 |
MT-6 |
|||||
Main motor power |
kw |
7.5 |
22 |
|||||
Rapid motor power |
kw |
0.3 |
1.5 |
|||||
Coolant pump |
kw |
0.125 |
0.15 |
|||||
Overall size(L×W×H) |
mm |
3657/5157×1449×1393 |
4600/6100 |
5000,6000× |
5000,6500× |
|||
Weight |
kg |
4260 |
4440 |
10500 |
11500 |
13000 |
13000 |
15000 |
Standard Accessories:
4(3) jaw big hole chuck(front & rear), Steady rest, Follow rest, Taper turning attachment,
Out board support, Oil gun, Coolant system, Working light, General tools, Foundation bolts,
Operation manual(English edition)
Optional
2-axes DRO
