Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > 200mm CNC Oil Field Big Bore Lathe QK-190A

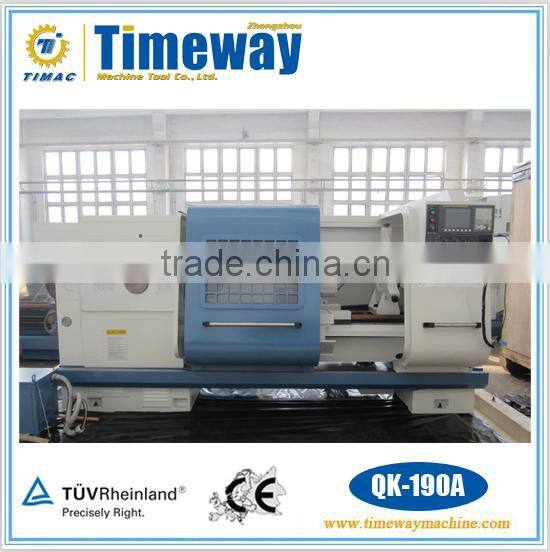

200mm CNC Oil Field Big Bore Lathe QK-190A
US$ 32,546 - 75,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hollow Spindle Oil Country Lathe (Pipe Thread Turning Lathe) Q-210US$ 35,850 - 55,000MOQ: 1 Set -
280mm Oil Country Lathe Q-280US$ 50,000 - 68,000MOQ: 1 Set
-
225MM Pipe Threading Lathe Q-225US$ 5,000 - 98,000MOQ: 1 Set
-
18" CNC Oil Country Lathe QK-460AUS$ 169,000 - 189,500MOQ: 1 Set
-
QK-190A CNC Oil Country LatheUS$ 45,000 - 220,000MOQ: 1 Set
Condition
New
Type
Horizontal
CNC or Not
CNC
Automatic Grade
Automatic
Max. Swing Diameter
770mm
Brand Name
TIMAC
Model Number
QK-120A
Voltage
As per customer's request
Power(W)
11kw
Dimension(L*W*H)
3.41 x 2.2 x 2.19m
Weight
5.8 tons
Certification
CE norms
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
200mm Hollow Spindle Bore Pipe Threading CNC Lathe QK-190A
Application:
We, Timeway Machine sold 6", 8", 10", 14", 18" hollow spindle CNC oil country lathes designed to perform all sizes of the threads used in the oil & gas industry; center height 385mm, 500mm, 550mm, 650mm; distance between centres from 750mm up to 5000mm; 3-jaw self-centering chuck or 4-jaw independent chuck on both sides of gear box. All machines are in conformity to the CE norms.
Parameter:
| Specification | Unit | QK-120A | QK-190A | QK-260A | QK-350A | QK-460A | |
| Capacity | Centre height | 385 | 500 | 550 | 650 | ||
| Swing over bed | mm | 770 | 1000 | 1100 | 1250 | ||
| Swing over carriage | mm | 480 | 630 | 730 | 900 | ||
|
External diameter of pipes (manual chuck) |
mm | 120 | 190 | 70-260 | 114-340 | 300-460 | |
| Maximum length of workpiece | mm | 750/1000/1500/2000/3000 | 1500/3000/5000 | 3000 | |||
| Maximum turning length | mm | 600/800/1350/1850/2850 | 1300/2800/4800 | 2800 | |||
| Span of guideway | mm | 550 | 755 | 1100 | |||
| Spindle | Spndle bore | mm | 130 | 200 | 275 | 355 | 465 |
| Spindle nose | C11 | A2-15 | A2-28 | ||||
|
Headstock
|
Step of Spindle speed(Three-phase asyn-chronous motor) | manual 3 steps,auto 6 steps 16 speeds | manual 2 steps,auto 4 steps 8 speeds | --- | --- | --- | |
| Step of Spindle speed(Variable frequency motor) | --- | --- | auto 4 gear steps,stepless speed change in the step. | ||||
| Range of spindle speed(Three-phase asyn-chronous motor) | 25-800 | 90-450 | --- | --- | --- | ||
| Range of spindle speed(Variable frequency motor) | --- | --- | 6-400 | 5-320 | 5-200 | ||
| Main motor power(Three-phase asyn-chronous motor) | kw | 11 | --- | --- | --- | ||
|
Main motor power (Variable frequency motor) |
18.5 | 28/38 | |||||
| Chuck type(manual chuck) | manual 3 jaw 380 | manual 3 jaw 500 | manual 4 jaw 630 | manual 4 jaw 800 | manual 4 jaw 630 | ||
| Feed | Min.feed increment of X-/Z-axis | mm | 0.001/0.001 | ||||
| Rapid speeds of X-/Z-axis | mm/min | 3000/6000 | |||||
| Max.travel of x-axis | mm | 390 | 630 | 800 | |||
| Carriage | Tool-post working position | Vertical 4-position240 | Vertical 4-position300 | ||||
| Indexing time | s | 2.5 | 4 | ||||
| Indexing repeatility | mm | 0.008 | 0.01 | ||||
| Section of tool shank | mm | 32 | 40 | ||||
| Tailstock | Diameter of tailstock quill | mm | 100 | 160 | |||
| Travel of tailstock quill | mm | 250 | 300 | ||||
| Taper hole of tailstock quill | Morse 5 | Morse 6 | |||||
***Standard item:
FANUC 0i TD CNC controller, Manual 4-jaw tube compound chuck, 4-station vertical eletric toolpost, Electric tailstock, Centralized automatic lubrication system, Cooling system, Working light, Electrical cabinet with air conditioning, RS232 interface, Movable electronic handwheel (MPG), Tri-color alarming light, General tools, Operation manuals(English edition).
