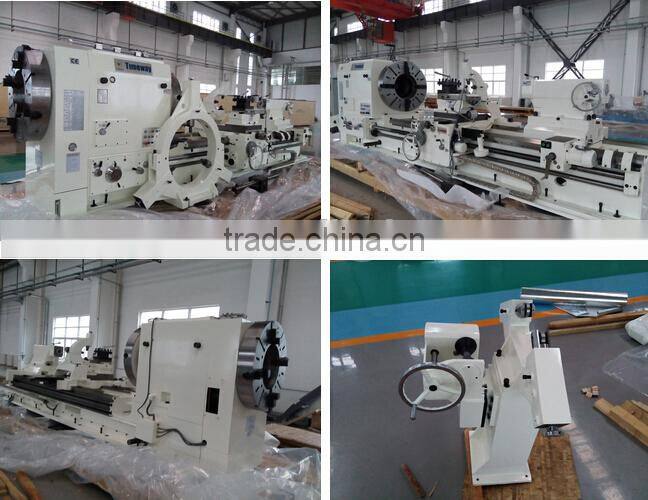

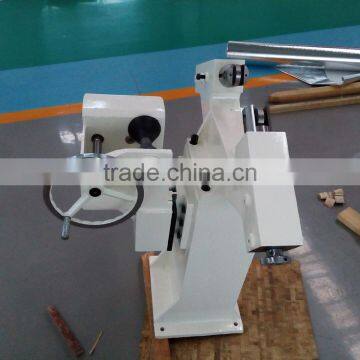

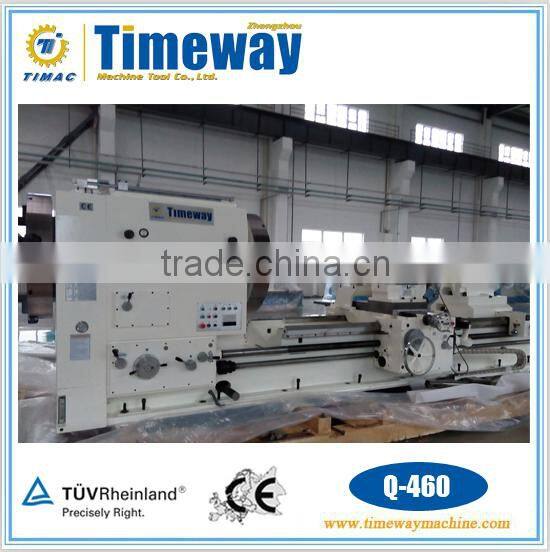

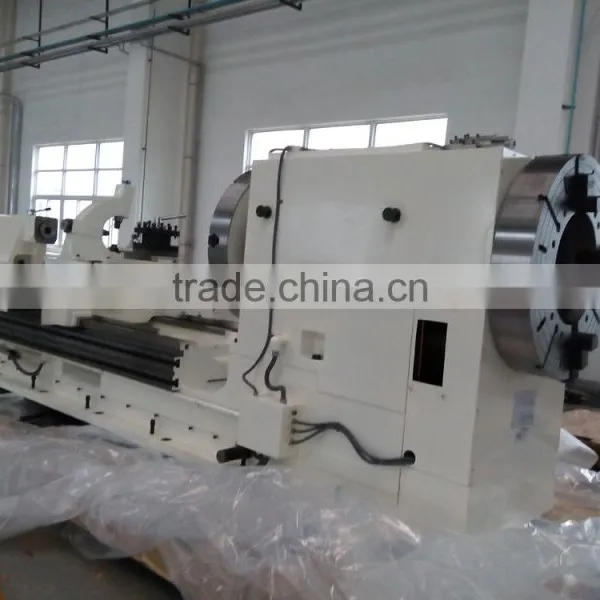

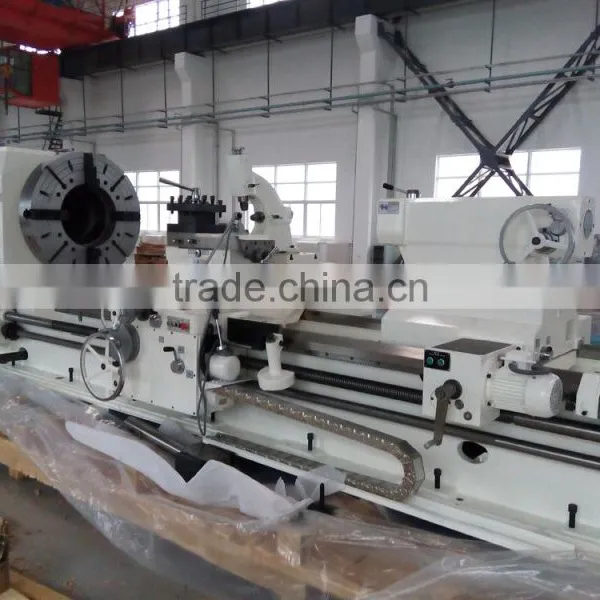

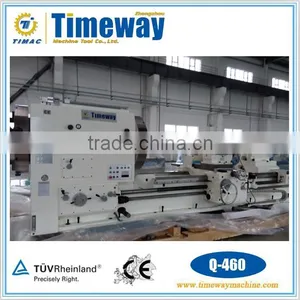

460mm Oil Field Big Bore Lathe Q-460
US$ 8,500 - 96,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin or Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
200mm CNC Oil Field Big Bore Lathe QK-190AUS$ 32,546 - 75,000MOQ: 1 Set -
Hollow Spindle Oil Country Lathe (Pipe Thread Turning Lathe) Q-210US$ 35,850 - 55,000MOQ: 1 Set
-
280mm Oil Country Lathe Q-280US$ 50,000 - 68,000MOQ: 1 Set
-
225MM Pipe Threading Lathe Q-225US$ 5,000 - 98,000MOQ: 1 Set
-
18" CNC Oil Country Lathe QK-460AUS$ 169,000 - 189,500MOQ: 1 Set
Condition
New
Type
Horizontal
CNC or Not
Normal
Automatic Grade
Manual
Max. Swing Diameter
1200mm
Brand Name
TIMAC
Model Number
Q-460
Voltage
As per customer request
Power(W)
A.C 37kw (Inverter)
Dimension(L*W*H)
as model
Weight
as model
Certification
CE norms
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
Conventional Pipe threading lathe (Q-460)
Application:
14" (360mm) Hollow Spindle / Conventional Pipe Threading Lathe
We, Timeway Machine sold 6", 8", 10", 14", 18" hollow spindle Conventional oil country lathes designed to perform all sizes of the threads used in the oil & gas industry; center height 385mm, 500mm, 550mm, 650mm; distance between centres from 1500mm up to 9000mm; 3-jaw self-centering chuck or 4-jaw independent chuck on both sides of gear box. All machines are in conformity to the CE norms.
Parameter:
| Specification | Unit | Q-280 | Q-360 | Q-460 |
| Diameter of Spindle bore | mm | Φ 280 | Φ 360 | Φ 460 |
| Max. swing over bed | mm | Φ 1000 | Φ 1000 | Φ 1200 |
| Max. swing over cross slide | mm | Φ 720 | Φ 640 | Φ 800 |
| Max. distance between two centers | mm | 1500/2000/3000/4000/5000/6000 | ||
| Max. turning length | mm | 1300/1800/2800/3800/4800/5800 | ||
| Width of bed | mm | 600 | 755 | 970 |
| Max. load capacity between two centers | ton | 4 | 6 | 6 |
| Spindle speed range | r.p.m | 4~435 | 6.3~315 (18 setps) | 3.15~315 (2 steps) |
| Chuck diameter | mm | 4-Jaw (Φ 720) | 4-Jaw (Φ 800) | 4-Jaw (Φ 1000) |
| Longitudinal feed range | mm/r | 64 kinds, 0.18-9.6 | 97 kinds, 0.064-12 | 97 kinds, 0.064-12 |
| Cross feed range | mm/r | 64 kinds, 0.04-4.8 | 97 kinds, 0.032-6 | 97 kinds, 0.032-6 |
| No. and range of Metric thread | mm | 56 kinds, 1~120 | 56 kinds, 1~120 | 56kinds, 1~120 |
| No. and range of Inch thread | T.P.I | 56 kinds, 30~1/4 | 56 kinds, 30~11/8 | 56 kinds, 30~9/8 |
| No. and range of Module thread | mm | 56 kinds, 0.5-60 | 56 kinds, 0.5-60 | 56 kinds, 0.5-60 |
| No. and range of Pitch thread | D.P | 46 kinds, 0.5-60 | 56 kinds, 0.5-60 | 46 kinds, 0.5-60 |
| Tool post station | - | Vertical 4-station | Vertical 4-station | Vertical 4-station |
| Section of tool shank | mm | 32×32 | 45×45 | 45×45 |
| Tool post swing angle | ° | ±90° | ||
| Max. travel of top slide | mm | 200 | 300 | 300 |
| Max. travel of cross slide | mm | 600 | 520 | 620 |
| Tailstock sleeve diameter | mm | Φ 120 | Φ 160 | Φ 160 |
| Tailstock sleeve taper | - | Morse No.6 | Metric No.80 | Metric No.80 |
| Tailstock sleeve Travel | mm | 250 | 300 | 300 |
| Main motor power | kw | A.C 18.5 (Inverter) | A.C 22 | A.C 37 (Inverter) |
| Rapid Motor power | kw | 1.1 | 1.5 | 1.5 |
| Coolant pump | kw | 0.15 | 0.15 | 0.15 |
Q-280 series photos:
Q-360 series photos:
