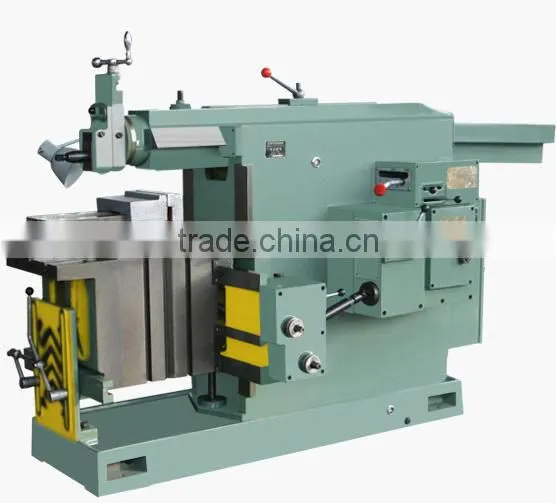

Shaping Machine / Planer SM-630

Name: Shaping Machine / Planer SM-630
Brand: TIMAC
SKU: 140797928
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Henan, China

Brand Name:

TIMAC

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Henan, China

Brand Name TIMAC

Model Number SM-630

Voltage As Buyer's Request

Power(W) 3KW

Weight 1950KG

Warranty 12 months

Specifications

1. Shaping Machine;
2. Max. plane length 630mm;
3. Table size: 630x400mm;

SHAPPING MACHINE

Features:

1. The main cutting motion of the machine is linear motion being converted from circular motion of gears by link block mechanism.

2. With smooth transmission, short over run and less consume of power, the machine is easy to start and stop.

3. If being provided with a tool lifter, the machine table can obtain rapid motion in vertical and horizontal direction.

4. The machine, with pleasing appearance and stable accuracy, can be operated and maintained conveniently.

Specification		Unit	SM-630
Max. planing length		mm	630
Max. distance between ram bottom and worktable surface		mm	385
Max. horizontal travel distance of worktable		mm	630
Max. vertical travel distance of worktable		mm	360
Worktable size		mm	630x400
Travel of tool head		mm	120
Number of ram strokes/min		mm	14, 20, 28, 40, 56, 80
Range of table power speed	Horizontal	mm	0.2-2.5 12steps
	Vertical	mm	0.08-1.00 12steps
T-slot width		mm	18
Main motor power		kw	3
N.W/G.W		kg	1750/1950
