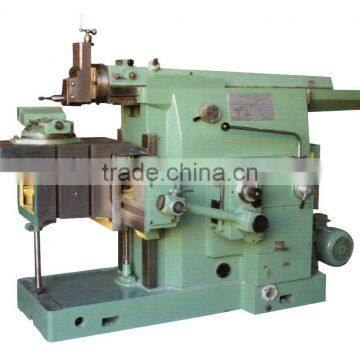

SHAPING MACHINE
* High productivity can be obtained for shaping plane surfaces, T-slots and dovetail slots, etc. on narrow and long workpieces.
* The ram mechanism of this machine adopts the guide unit with torsion-spring internally fixed. During the ram movement, the cutting tool can be adjusted to an arbitrary position.
* The total closed cam-ratchet unit is employed in the feed mechanism and rapid travel mechanism of the table featuring change of feed amount without stopping the machine during cutting. A disk-type overload safety unit is used.
* Owing to the adoption of swivel device with cam-curve groove, different speeds can be selected arbitrarily.
Specification |
SM-700 |
|||
Max. Shaping length |
700 mm |
|||
Max. distance from lower edge of ram to table |
420 mm |
|||
Max. travel of table |
Horizontal |
630 mm |
||
Vertical |
320 mm |
|||
Rapid travel of table |
Horizontal |
0.75 m/min |
||
Vertical |
0.34 m/min |
|||
Max. vertical travel of tool head |
125 mm |
|||
Frequency of ram stroke |
11, 20, 38, 52, 72, 100 times/min |
|||
Table feed per ram stroke | ||||
Pawl riding over 1 ratchet tooth |
Vertical |
0.07 mm |
||
Horizontal |
0.15 mm |
|||
Pawl riding over 10 ratchet teeth |
Vertical |
0.68 mm |
||
Horizontal |
1.5 mm |
|||
Tool head(down) |
0-0.4 mm |
|||
Tool lifting(linear speed) |
<20m/min |
|||
Motor |
4 kw, 960 r/min |
|||
Vice measurements (Width x Depth x Max. Opening) |
240x64x215 mm |
|||
Overall dimensions (LXWXH) |
2480x1400x1780 mm |
|||
Packing size (LXWXH) |
2620x1620x1720 mm |
|||
Net weight |
2700 kg |
|||
Gross weight |
3300 kg |
|||
