Help CenterHYDRAULIC SLOTTING MACHINE
Related Products

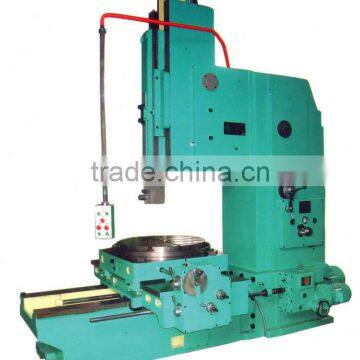

The machine is suitable for single piece or small batch production.
The feed of worktable have three different directions ( longitudinal, cross and rotary), so the workpiece can be processed in various surface only need one setup.
The ram reciprocation hydraulic transmission mechanism and worktable hydrofeeder are equiped.
The speed of ram is invariant in each stroke, the speed of ram and the worktable movement can be adjustable in stepless way.
The hydraulic console has reversing mechanism for the ram reversing and oil feeding.
Besides hydraulic and hand feed, the worktable also has longitudinal, cross and rotary rapid motion of independent motor drive.
Specifications | Unit | BY-500E | BY-630E |
Max. stroke length of ram | mm | 500 | 630 |
Min. stroke length of ram | mm | 125 | 125 |
Max. slotting length | mm | 500 | 630 |
Distance of vertical adjust of ram | mm | 430 | 550 |
Extreme high speed for work stroke of ram | m/min | 22 | 22 |
Extreme low speed for work stroke of ram | m/min | 5 | 5 |
Speed ratio of work stroke and return stroke of ram |
| 1 : 1.45 | 1 : 1.45 |
Speed adjust for work stroke |
| stepless | stepless |
Max. slotting force | KN | 19.6 | 19.6 |
Distance from tool holding surface to column front | mm | 1032 | 1189 |
Distance from worktable surface to underside of slide rack | mm | 740 | 795 |
Max. longitudinal travel of worktable | mm | 1235 | 1125 |
Max. transverse travel of worktable | mm | 820 | 880 |
Diameter of worktable | mm | 900 | 1000 |
Inclination of ram | ° | 0~10 | 0~10 |
Range of vertical feed (stepless) | mm | 0~0.6 | 0~0.6 |
Range of horizontal feed (stepless) | mm | 0~1.36 | 0~1.36 |
Range of rotary feed (stepless) | ° | 0°~1° 15' | 0°~1° 15' |
Max. loading weight on worktable | kg | 2000 | 2000 |
T-slot width in the center of worktable | mm | 22H8 | 22H8 |
Power of main motor |
| 11KW | 11KW |
Power of motor for rapid move of table |
| 1.5KW | 1.5KW |
Net weight (approx) | kg | 11000 | 12000 |
Dimensions of machine tool (LxWxH) | mm | 3460x2130x3720 | 3730x2350x4587 |
Flatness of machined surface | mm | 0.015 | 0.015 |
Verticality of machined surface | mm | 0.025 | 0.025 |
Surface roughness |
| 6.3 | 6.3 |
Verticality of machined side surface against base | mm | 0.02 | 0.02 |
